TUBE-1012 & TUBE-1006 are the best way to improve even further the Gold Note sources reaching a new level of performance through the Class A 12 or 6 tubes output stages.
Gold Note products are all solid state designs, capable of great quality, control and definition providing outstanding realism in recreating the musical event. The idea behind designing TUBE-1012 & TUBE-1006 was to offer the quality of the sound of the tubes to every product to achieve the best of the two technologies, Solid State and Tube in perfect synergy.
Our proprietary Totem-Pole Output Stage design, with six independent stages per single tube, provides ultra-wide bandwidth response and the lowest distortion to the audio signal.
TUBE-1012 & TUBE-1006 are easy to connect and control, they also feature a dedicated MUTE button for maximum convenience.

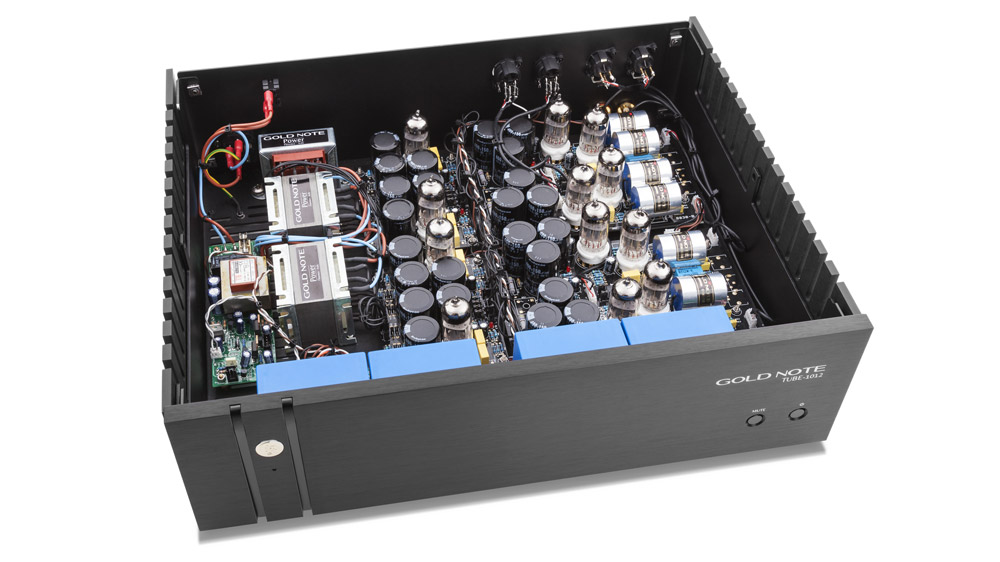

TUBE-1012 is a 12 tubes unit, eight of which are dedicated to the audio signal path and for to the drivers powered inductively within the use of 6 transformers in a virtual battery design. In addition, TUBE-1012 features two extra power transformers for service stage completely outside of the audio signal path.
TUBE-1006 is a 6 tubes unit, four of which are dedicated to the audio signal path and two to the drivers powered within two transformers in Dual Mono. TUBE-1006 features an extra power transformer for service stage completely outside of the audio signal path.
TUBE-1012 & TUBE-1006 can match: CD1000, DS-1000, P-1000 & PH-1000.
PURE CLASS-A TUBE STAGE
The TUBE-1006 is able to enhance Gold Note sources to reach new high level of sonic performances through the Class A 6 tubes output stage
LOW DISTORTION DESIGN
Our proprietary Totem-Pole Output Stage design, with six independent stages per single tube, enhances ultra-wide bandwidth response preserving very low distortion
TUBE-1006 it's easy to connect and easy to control also featuring a dedicated MUTE button
Input Sensitivity: 4Vrms
Max Input Level: 10Vrms linear
Max Output Level @ XLR: 15Vrms
Max Output Level @ RCA: 7,5Vrms
Output Impedance: <600 Ohm
Recommended Load: >5K Ohm
Power Absorption: 75W
Power Supply: Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters
Gain: +3,5 dB
Tubes: 6n1p x 12
No coupling transformers on the IN/OUT
Dimensions: 430mm W | 135mm H | 375mm D
Weight: 12 kg
