Cyrus PSU-XR Power Supply

£2,395.00

£1,995.83 Exc. VAT |

The XR Series is Cyrus's latest and greatest series of products. An uncompromising range of discrete audiophile components, the performance of which elevates Cyrus into the very highest echelons of transparency and precision.

XR is nothing short of a revolution in audio quality. Built from the ground-up, using an accumulated knowledge of over a decade, XR represents the best-in-class application of new DAC technologies, Power supply Design, Circuit topology, User Interface and, is built entirely in the UK using the highest specification of components.

Description
Specifications
Customer Reviews (0)

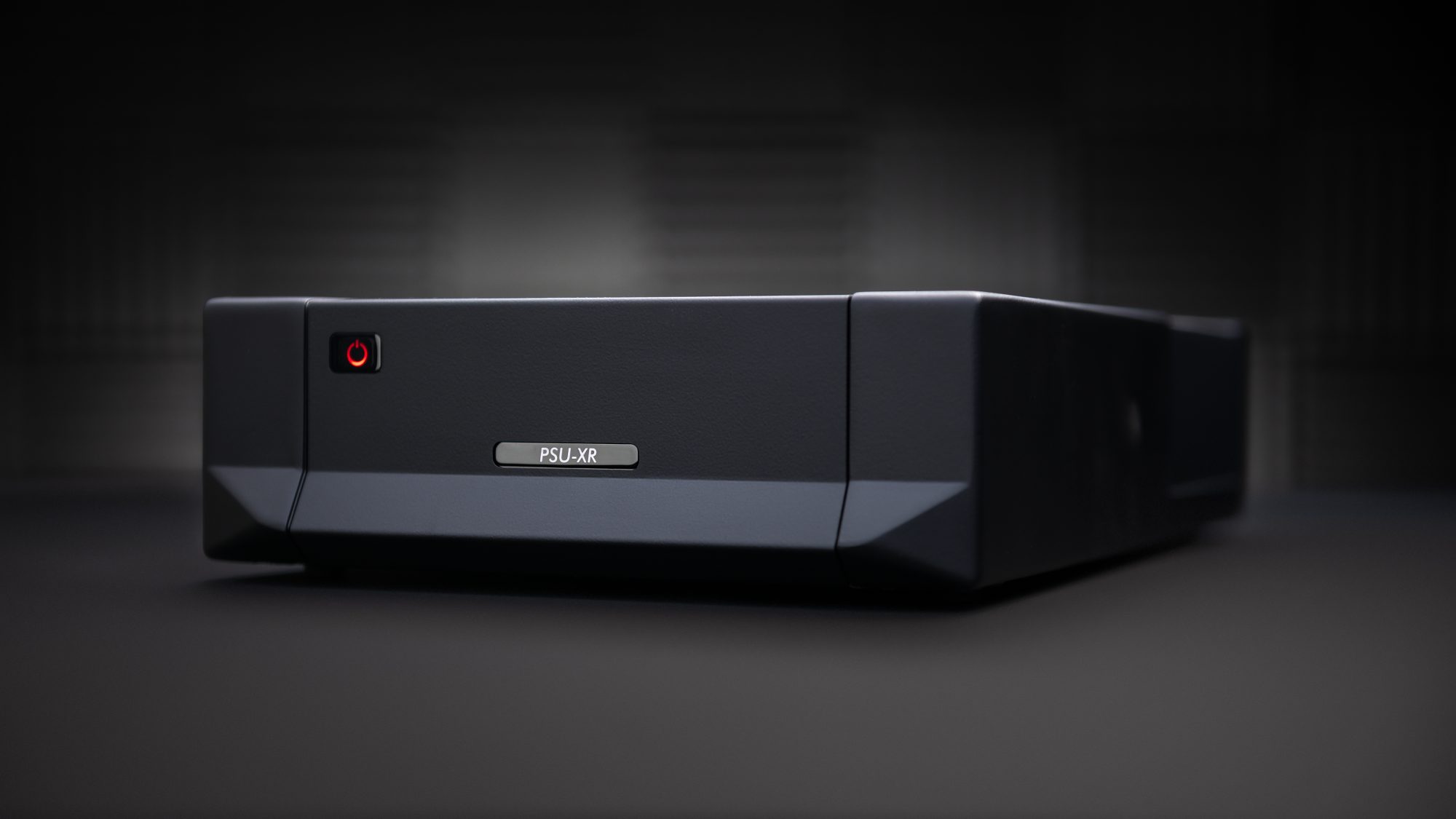

Cyrus PSU-XR Power Supply

The PSU-XR builds upon our extensive legacy in Power Supply design. Beginning with the original PSX, Cyrus has always led the field in producing clean, stable and ‘stiff’ external upgrade power supplies. ‘Stiffness’ is essential, Even when heavy loads are applied, the voltage has to remain completely stable. The PSU-XR employs the largest toroidal transformer we have ever used, coupled with some amazingly efficient load management circuits to deliver a staggering amount of power.

THREE DIFFERENT SUPPLIES

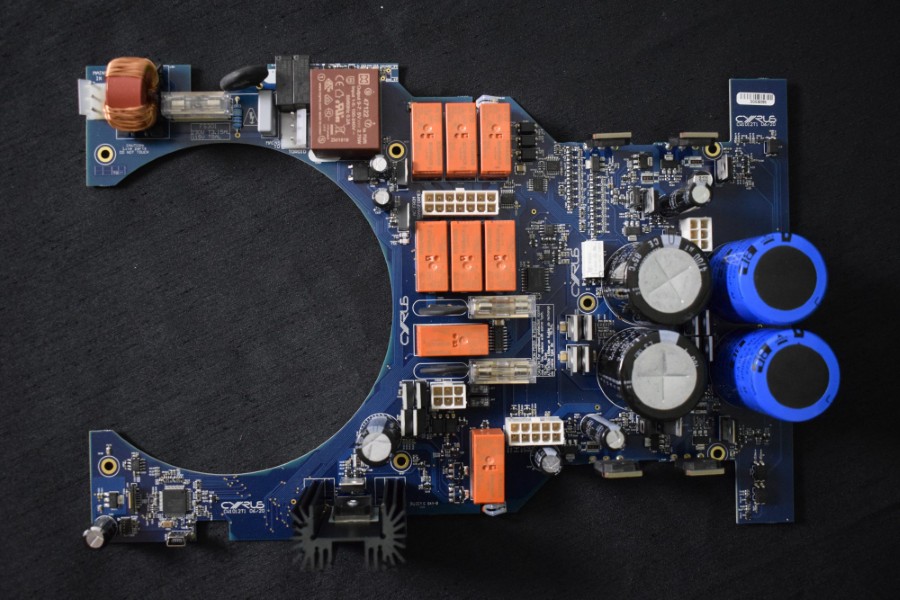

Able to deliver ‘exact’ power requirements to three different circuits on the host product, the PSU-XR significantly enhances the performance of any XR product it is used with. Advanced, microprocessor controls, relay switching, completely separated ‘Grounds’ to virtually eliminate the transfer of ‘noise’ and a future-proof architecture are just some of the special features of this upgrade power supply.

DIGITALLY ADDRESSED VOLTAGES

The PSU-XR communicates with the host-product via the 15pin bus lead to determine the exact voltage requirements of the various circuits to receive the additional power. The PSU-XR then controls the output voltage using an 8-bit digital gate, allowing 256 different (and precise) voltage steps for the output rails.

NO SHARED 'GROUND'

The PSU-XR is able to supply three different circuits in the host product with power. In order to preserve the purity of the power to each of these circuits, the different power sections of the PSU-XR have completely separate ‘grounds’. This virtually eliminates the possibility of system ‘noise’ from one section of the host product being transferred to another section.
