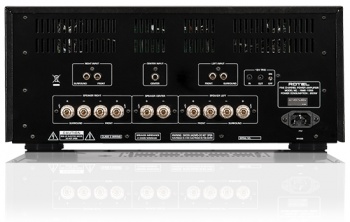

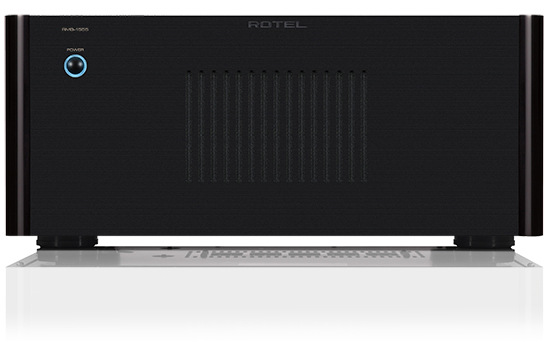

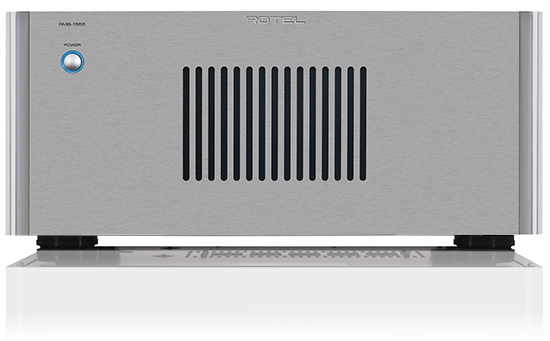

Rotel RMB-1555 Multi Channel Power Amplifier

Rotel RMB-1555 Multi Channel Power Amplifier

The RMB-1555 is a remarkable multichannel amplifier with power output conservatively rated at 120 Watts per channel into 8 ohms (all channels driven!). With all but the most demanding speakers located in extraordinarily large rooms, the RMB-1555 exerts the kind of precise control that presents both nuance and bombast correctly from the faintest flute overtones to the subterranean rumble of an approaching apocalypse.

The RMB-1555 employs a high current, toroidal transformer matched to discrete output transistors with their higher thermal stability and freedom from the designed-in compromises that characterize their integrated circuit cousins. The Class AB amplifier configuration assures the best balance between power output and thermal efficiency.

Specifications

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
180

SPEAKER IMPEDANCE
4Ω minimum

INPUT SENSITIVITY
1.5V

INPUT IMPEDANCE
12kΩ
