New from Luxman is the M-200, a highly capable and versatile power amplifier which has a B4 sized enclosure and features Luxman specialist high sound quality amplification circuits.
M-200 is designed to be portable and completely compatible with fresh new audio source components and high performance audio applications coming to market, such as computer music sources. What’s more, its rated output is 25W+25W(8Ω), concentrating on the ultimate sound quality rather than specmanship quantity.
As a high quality stereo amplifier, M-200 can be used with various audio components, such as the USB D/A converter DA-200 with high-grade built-in potentiometers and pre-amplification circuit which was launched last autumn. When used in combination with M-200 and connected to PC or Mac via a USB cable, you will experience a rich and detailed musical experience, no matter whether using digital or analog audio sources.
Furthermore, in BTL mode M-200 can work as a mono amplifier with 70W(8Ω) output to achieve greater driving forces for large-caliber speakers. You can also activate/deactivate its built-in pre-amplifier and add discrete pre-amplification if you prefer to do so, making the M-200 highly versatile in a variety of applications.

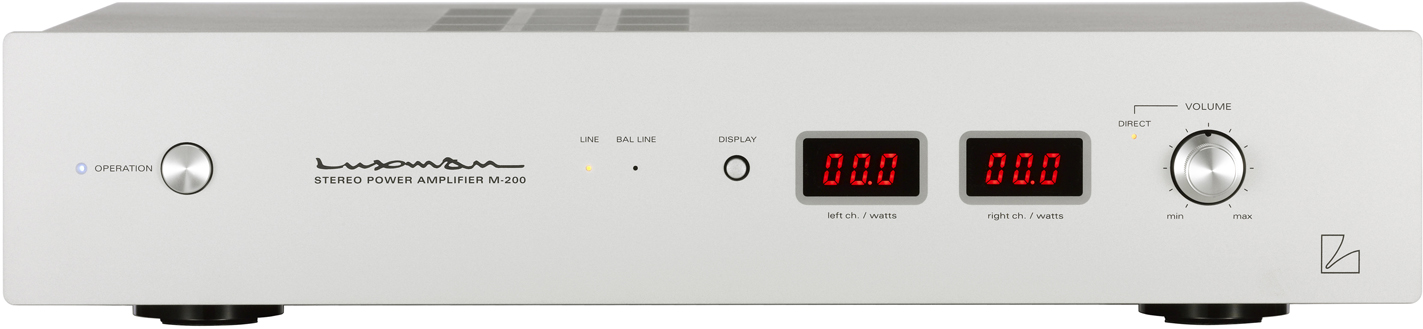

The front panel display is able to process and track reproduced signals in real-time. It is also equipped with a digital power meter (backlighting can be switched off), which can be switched between Speaker Impedance, Hold Time and other digital settings. All the above provide you a visual and informative feast while enjoying the music.
Instead of rigidly adhering to the traditional audio forms, M-200 introduces modern high performance parts and assemblies that will meet the requirements of the most demanding audiophile. This LUXMAN fully-featured new product provides both beginners and hi-fi experts with a wide variety of audio solutions.
- Succession Effective Output: (Normal)-25W+25W (8Ω), (BTL)-70W (8Ω)
- Total Harmonic Distortion: 0.005% (8Ω, 1 kHz, Both CH simultaneous drive) 0.06% (8Ω, 20~20 kHz, Both CH simultaneous drive (-3dB))
- Ampli cation: STERO-23dB, BTL-29dB
- S/N Ratio: Line-107dB or over Balance Line-102dB or over
- Frequency Characteristics: 20Hz~20,0000Hz (-0.2dB)
- Damping Factor: 100
- Power Consumption: 80W (According to the Electrical Appliance and Material Safety Law)
30W (No input)
- Dimensions (W x H x D): 364 x 81 x 297 (mm)
- Net Weight: 7.0kg
