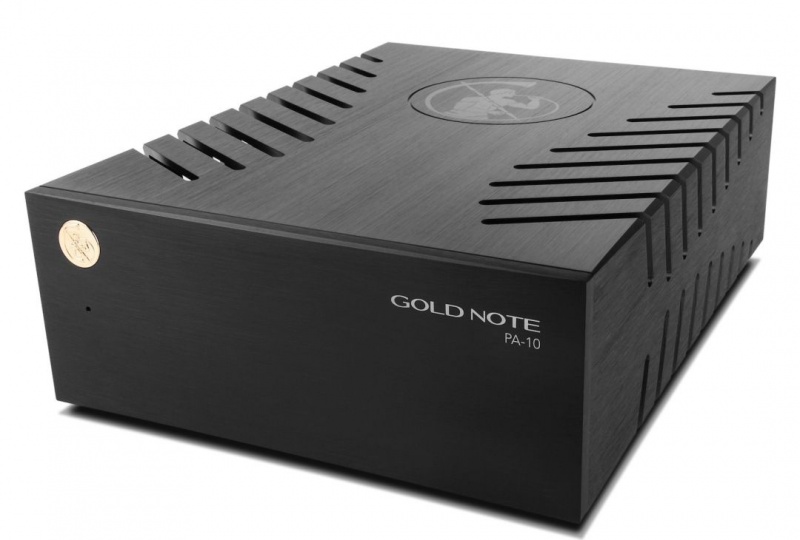

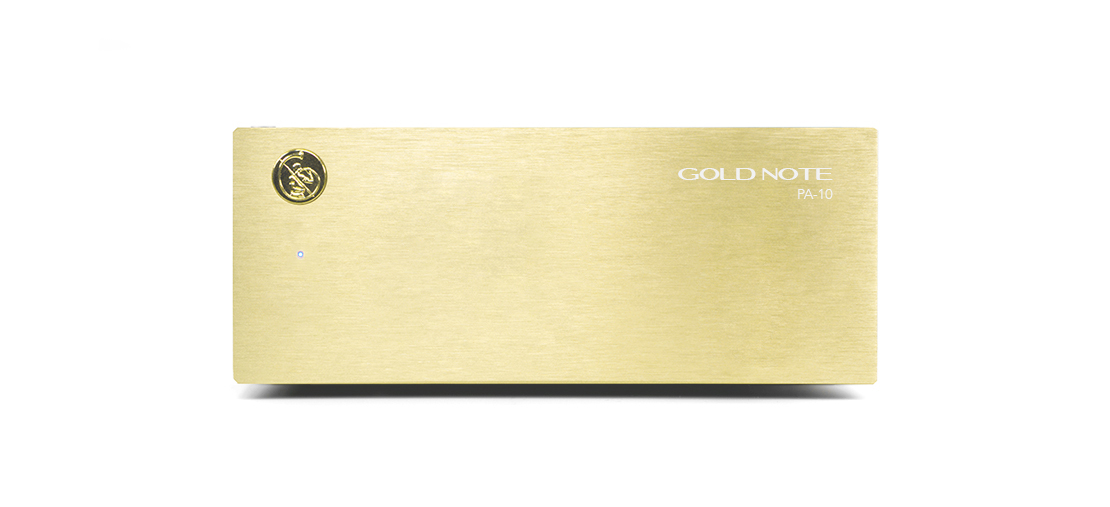

Gold Note PA-10 Stereo Power Amplifier
Zoom  Zoom
Gold Note PA-10 Stereo Power AmplifierGold Note PA-10 Stereo Power AmplifierGold Note PA-10 Stereo Power AmplifierGold Note PA-10 Stereo Power Amplifier

Gold Note PA-10 Stereo Power Amplifier

PA-10 has been developed to offer great power considering its small size.

The product is designed as the perfect companion of the DS-10 4 in1 DAC completing a conveniently sized High-End System without renouncing to the power and Gold Note sound quality.

£1,170.00
£975.00 Exc. VAT |


|
Finish:





Gold Note PA-10 Stereo Power Amplifier

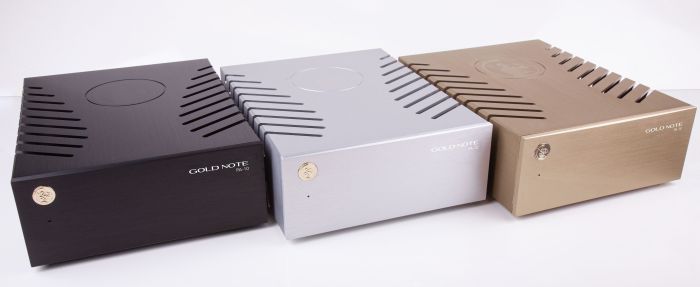

Available in Black, Gold or Silver

PA-10 is Gold Note’s newest stereo power amplifier dedicated to the Series 10 product line

Built around a steel chassis plus panels of aluminium to, “…avoid RFI and EMI,” the PA-10 features a BTL design (Bridge-Tied-Load).

The Gold Note PA-10 has been designed to partner the Italian audio company's DS-104-in-1 DAC and boasts the “Gold Note sound quality” in a compact 220 mm x 80 mm x 260 mm (WxHxD), 4 Kg package.

The PA-10 is a fully balanced amplifier featuring a BTL design (Bridge-Tied-Load) which means you can use it as a mono amplifier which, in turn, doubles its power rating from 75 Watt per channel at 8 ohms to a potent 600 Watt @ 4 ohms.

The PA-10 has a quoted frequency range of 10 Hz - 30 kHz +/- 1 dB and, just like the flagship model PA-1175 MKII, has an adjustable Damping Factor feature that enables perfect matching with any loudspeakers.

It can drive either large and difficult speakers or high sensitivity and mini-monitor speakers,”



When connected via the GN Link cable, the unit will go in standby mode and will re-activate itself only when receiving a signal from the master unit.

The Gold Note PA-10 is equipped with a stereo XLR input, and a stereo RCA input which, looking at the spec sheet, can be used at the same time should you wish.

Additionally, thanks to the proprietary GN LINK technology, you can put the PA-10 into a Master-Slave-Mode with other sources, such as the DS-10. Essentially, this means that when you switch one unit on or off, all the others follow suit.

PA-10 stereo power amplifier



Specifications:


Output power in stereo mode:


2 x 75 Watts @ 8 ohm
2 x 150 Watts @ 4 ohm
2 x 300 Watts @ 2 ohm


Output power in mono/btl mode:


1 x 300 Watts @ 8 ohm
1 x 600 Watts @ 4 ohm

Frequency Response:


10 Hz - 30 KHz +/- 1 dB
THD+N <0,1% ( typical <0,05% )

Input sensitivity:


RCA ( unbalanced ) 0,7V RMS
XLR ( balanced ) 1,4V RMS

Input impedance:


RCA ( unbalanced ) 13K ohm
XLR ( balanced ) 13K ohm

Mains supply:


100/240V 50/Hz

Power consumption:


<10 Watt in standby
170 Watt at a 1/4 of nominal power
1400 Watt max

Dimensions and weight:


220 mm W x 80 mm H x 260 mm D
4 Kg

Functional specifications:
Stereo power amplifier for series 10
 - 80 watt @ 8ohm, 160 watt @ 4ohm and 320 watt @ 2ohm
 - same chassis and look as DS-10 but without display and without rotary knob
 - 1 stereo XLR input, 1 stereo RCA input, working without selection, also at the same time
 - double stereo XLR output
 - 2 sync GN Link ( in/out ) for automatic slave-mode ON
 - 4 high-quality binding posts ( WBT for German market )
 - 1 switch for STEREO-MONO + LED
 - 1 switch for Damping Factor + LE
