Cyrus Mono X - Monoblock Power Amplifier (Pair) - Pre Owned

£1,583.33 Exc. VAT |

Please note this product cannot be shipped, and must be collected from our showroom

Cyrus Mono X  -  Monoblock Power Amplifier (Pair) - Pre Owned

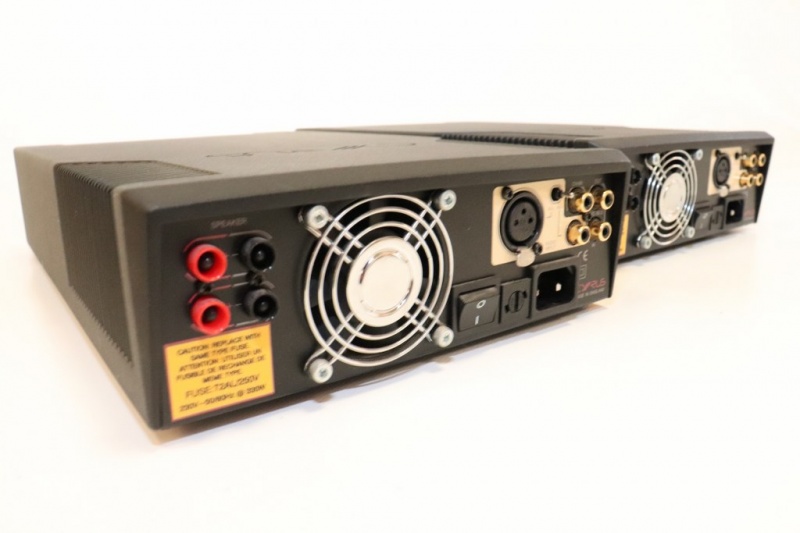

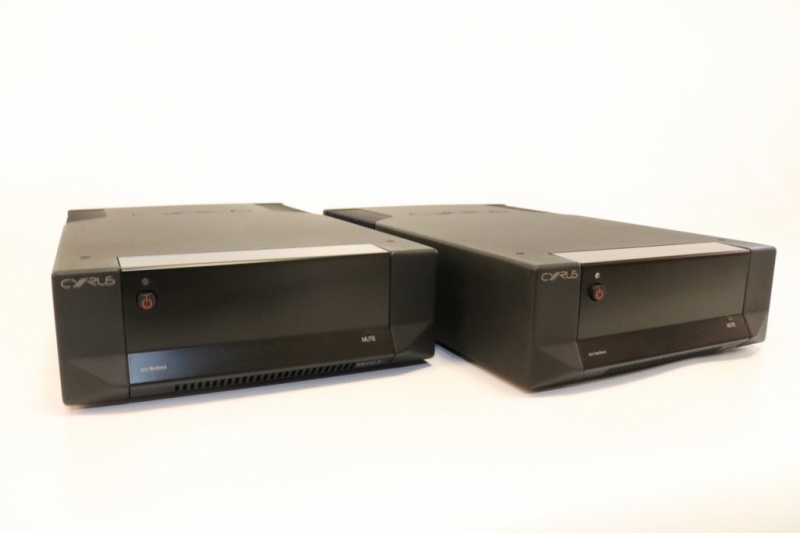

Good condition, 1 amplifier shows marks on top panel, as shown in pictures. Original boxes.

With state of the art components, this mono power amplifier delivers 150 Watts continually and is capable of providing 1,500 Watts of burst power. Features digital protection system.

Power amplifiers at this level of performance are more usually behemoths of iron and unnecessarily flashy styling. The Mono X is a dynamic mono amp conservatively rated at 150 Watts. However, the dynamic power of the amp is capable of burst output (such as occurs in all music programmes) of over 1500 watts.

This dynamic amplifier requires a very special design to successfully provide the immense power required for a system sound as close to the original performance as possible. The power and subtlety of the Mono X combine to make it one of the world’s most able hi-fi amplifiers.


The X-series has been the most demanding product range developed to date by Cyrus. Over many months the team applied their established skills in taking a technically excellent amplifier design, and through incremental listening tests worked to achieve a natural and extended soundstage with outstanding bandwidth.

The Mono X power amplifier is packed with a long list of features including the famous Cyrus ‘zero-feedback’ circuit topology (delivering outstanding power with exceptional load tolerance), a massive power supply with many stages of voltage regulation and a sophisticated computer control system offering intelligent circuit protection, convection control to maintain the temperature of the amplifier within safe limits and local bus communications with other Cyrus components.

• The harmonic distortion character of the Mono X is closely aligned to the response of the human ear. As output level reduces to lower levels where the ear becomes most sensitive to these effects, the distortion produced by the Mono X falls below measurable limits the result is an exceptional musical resolution.

• Power amplifiers have two primary tasks – i.e. voltage and current amplification of the input signal, to provide a large and powerful signal for the loudspeaker. Traditionally, in most power amplifiers, these functions are combined into one overall circuit topology. The Mono X splits these functions into dedicated circuits – the input voltage gain amplifier and the output current amplifier. The voltage gain amplifier uses a zero feedback complementary bootstrap cascaded ‘class A’ buffer which drives a precision resistor. The current developed in driving the resistor is mirrored into another precision resistor which is 52 times greater in resistance. The voltage developed across the second resistor is 52 times greater, hence voltage gain. This voltage gain operation is buffered by a second zero feedback complementary bootstrap cascaded ‘class A’ buffer. The current amplifier is an error corrected bipolar emitter follower designed to drive equally well into all impedances. In the Mono X neither of these stages have any global feedback. The current amplifier completely isolates the precision voltage amplifier from the loading effects of the speaker. This arrangement enables the Mono X to preserve fine detail, even under the most arduous of dynamic conditions.

Inputs – RCA phono or XLR balanced
Outputs – Twin BFA (bi-wire) connectors, RCA Chain out
Power Supply – 330VA Toroidal transformer
Communications – MC-Bus™ System Bus

Continuous Power – 150W (into 8 Ohms) 240W (into 4 Ohms)
Burst Peak Power – 1500W
Distortion – <0.004%, (1kHz into 8 Ohms) <0.05%, (20Hz-20kHz into 8 Ohms)
Frequency Response – -3 dB at 0.5Hz and 130kHz
Slew rate – 700V/µS (filters bypassed)
Max output Current – 80 Amps peak to peak
Sensitivity (RCA input) – 380mV (for 50W into 8 Ohms)
Sensitivity (RCA input) – 660mV (for 150W into 8 Ohms)
Sensitivity (BAL input) – 775mV (for 50W into 8 Ohms)
Sensitivity (BAL input) – 1.3V (for 150W into 8 Ohms)
Input impedance – 19Kohm (RCA), 20Kohm (BAL)
Chain Output voltage – 660mV (for 660mV RCA or 1.3V BAL input)
S/N Ratio – 114dBA
Dimensions – (H x W x D) 73 x 215 x 360 (mm)
Weight – 5.5kg



Technical Information

Signal to noise ratio


Dimensions (HxWxD) in mm



Silver or Satin Black

Input impedance

19Kohm (RCA), 20Kohm (BAL)

Frequency Response 1

-3dB at 0.5Hz and 130kHz

Continuous Output Power

150W (into 8 Ohms)



Dynamic Power
