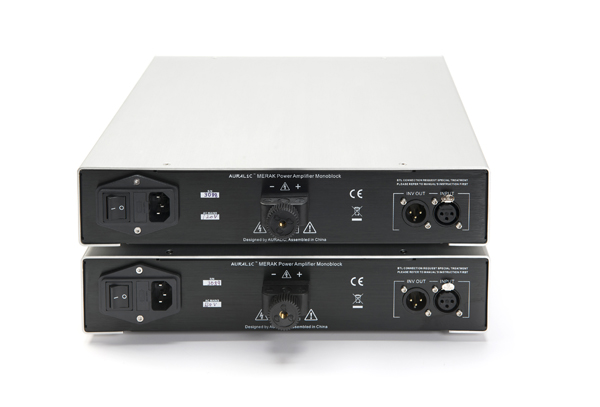

Please note this listing is for these in Black. Images show Silver.
The AURALIC MERAK is an amazing monoblock power amplifier born for the 21st century. It is the perfect combination of inspiring artistry and ingenious design. AURALiC create MERAK by merging the sophisticated amplifier design philosophy with modern audio technology, and orchestrated it with a compact appearance.
AURALiC introduce a cutting edge technology: Hybrid Analog Amplify to MERAK. This technology combines the advantages from linear and switching amplifier circuits. It uses linear components to handle the input signal, to process the voltage amplification so as to achieve very low noise and distortion. Meanwhile, low impedance, high speed switching components was deployed in output stage to maximize the driving capability and reduce heat dissipation. With Hybrid Analog Amplify technology, MERAK owns excellent linearity, great output power as well as high energy efficiency.Hybrid Analog Amplify technology utilizes high quality input isolation transformer made by Lundahl and AURALiC ORFEO Class-A module in signal amplify circuit. The isolation transformer contributes a perfect EMI noise attenuation while maintains the signal integrity; it can reduce EMI noise by 100dB even under non-ideal situation which is 1000 times superior to the traditional circuit design. AURALiC’s patented ORFEOClass-A module is also used here for driving the output stage. ORFEO Class-A module is not only powerful in driving capability but also show itself with vanishingly low distortion at less than 0.001% within complete audio band.The output stage is powered by Hypex UcD technology. AURALiC has modified and optimized the Hypex design based on mathematician models between subjective auditory sense and objective testing data. Comparing to the original solution, high order distortion components (mostly from 4th to 7th) were effectively suppressed by over 10dB, this lead to a significant improvement in listening experience. In additional, the output stage owns a frequency-constant output performance when driving loads from 4 to 16 ohm, making it suitable for driving various kinds of loudspeakers.
Purer-Power™ Linear Power Solution
Strong, smooth and constant power supply is essential to monoblock power amplifier like MERAK. To satisfy this, AURALiC tailor made Purer-Power Linear Power Solution for a pure and abundant power supply. The 500VA main transformer used in MERAK is customized with patented low noise, narrow band technology from Plitron, following by a 56000uF capacitors array. Purer-Power Linear Power Solution can store up to 120 Joule energy, keeping the noise and source impedance at lowest level as well as offering excellent current transient performance.To let MERAK sounds as transparent as possible, Purer-Power Linear Power Solution was designed to offer an astonishing purifying ability. It can strongly isolate common-mode and differential-mode interference from both within and outside audio band as high as 90dB while reshape the electrical circuit and remove DC current. The power solution can also effectively prevent electrical circuit from being interfered by those current entering into system via power supply, by which means to ensure more stability of circuit and more purification of sound.
Advanced Power Management
For better balance between performance and energy saving, MERAK is equipped with AURALiC's advanced power management circuit. MERAK will automatically run at warm-up mode as soon as the mains power is connected. In warm-up mode, MERAK shut down its output stage to save energy while leave the Class-A signal amplify circuit and Purer-Power supply unit in working status. At a little expense of less than 5 watt energy consumption, the signal amplify circuit which usually requires warm-up to achieve the best performance is always in best order. When MERAK wake up for operation, it always present with best sound.Advanced power management also endues MERAK with intelligent wake up and auto sleep function. When this function is active, MERAK will monitor its input and wake up by any valid music signal above 5mV within 0.5 second, ensure that you will not miss the start chapter of music. When signal stopped for 5 minutes, MERAK will go back to warm-up mode. The intelligent wake up function is controlled by a computer based signal processor, it can distinguish any interference from music such as the pop noise when you plug or unplug the input cable.
Continuous Output Power200W/400W (8ohm/4ohm)
Peak Current Output>16 amp (40 ms)
Frequency Response20Hz - 20KHz, +/- 0.5dB
Residual Noise<50uV, 20Hz-20KHz, A-weighted
Input Ports1 x XLR, Sensitivity: 2.2Vrms(RCA input requires adapter)
Input Impedance10K Ohm
Output Ports1 x XLR invert output ( for BTL mode)1 x Cardas patented CE binding post
Damping Factors>800, 8ohm@1Khz
Optimized Loads2ohm to 16 ohm
Power dissipationwarm-up mode: 5Wplayback mode: 15W/450W (idle/max. output)
Dimension11”W x 11”D x 2.75”H(33cm x 33cm x 7.0cm)
Weight18.7 pounds (8.5kg)
All specifications are subject to change without notice.
