(Details shown apply to the default selection)

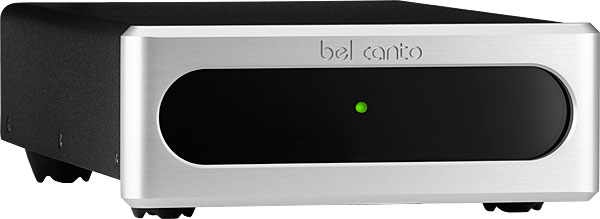

The REF600M monoblock provides serious power, delivering the pure treble of Class A, the slam of the best Class D architectures, and the mid band presence that brings your music to life.
Impedance Optimized Input
The Bel Canto Impedance Optimized Input Stage is a balanced high Common Mode Rejection, low output impedance driver that is critical to the amplifier's performance, ensuring that the refined dynamic qualities of the recording are preserved.
WBT NextGen Speaker Connectors
The WBT NextGen connectors provide the best possible connection from the amplifier to the speaker cables. We choose them because they impart minimal sonic signature to the sound, remaining open and grain-free up throughout the audio frequency band.
Power Output 1% THD: 600W 4 ohms, 300W 8 ohmsMinimum Load: 2 ohmsPeak Output Current: 27 amperesFrequency Response: +/-3 dB 0Hz-50KHz, all loadsTHD+N: 0.003% 1W, 1KHz, 4 ohmsIMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohmsOutput noise: 35uVRMS A-weighted 10Hz-20KHzVoltage gain: 27dB (internal switch select for 33dB)Damping factor: >1000Output Impedance at 100Hz: <8 milliohmsDynamic Range: 121dBInput Voltage for Max Output: 2.3Vrms at 27dB gainInput connections: Single-ended RCA or balanced XLRRCA input impedance: 100Kohms
Balanced input impedance: 200KohmsOutput connections: 1-set WBT Nextgen 5-way binding postsPower On usage: 22WPower Off usage: 0.0WInternally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 HzSize: 8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD)Weight: 15 lbs, 7 Kg
