Creek Evolution 100P Power Amplifier
Zoom  Zoom
Creek Evolution 100P Power AmplifierCreek Evolution 100P Power AmplifierCreek Evolution 100P Power Amplifier

Creek Evolution 100P Power Amplifier

£1,124.17 Exc. VAT |



Creek Evolution 100P Power Amplifier

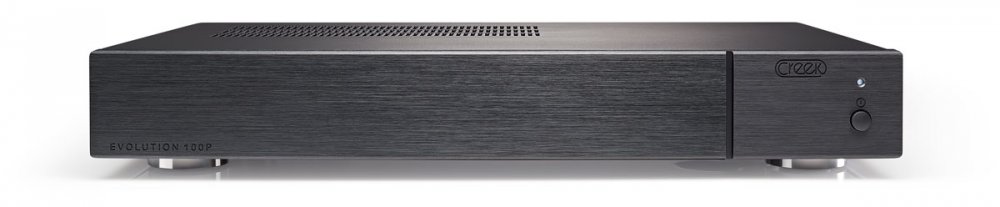

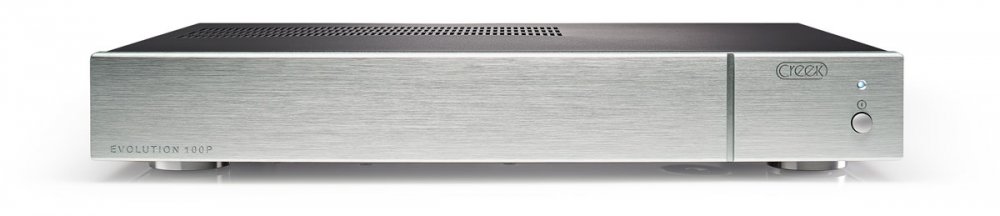

The new Creek power amplifier forms part of the new generation EVOLUTION 100 range of products. Housed in a slim case with engraved front panel and solid control knobs, it’s finished with either a black or silver brushed aluminium front panel.

The EVOLUTION 100P uses a massive 350 Watt toroidal mains transformer with separate windings for high and low current analogue and control circuitry. This solution produces a good power to weight ratio and low magnetic interference. Creek’s design policy of connecting several small low impedance capacitors in parallel creates an ultra-high specification capacitor to smooth the DC and helps to produce a very powerful and accurate sound from such a relatively small amplifier.

This power amplifier has a similar high-end, bi-polar transistor, Class-G power amplifier circuit, to the highly rated EVOLUTION 100A.  It achieves very high open-loop gain and low distortion for a smooth and powerful sound. Featuring Sanken 15 Amp power transistors, with built-in thermal compensation for rapid bias tracking performance, the EVOLUTION 100P Power Amplifier circuit has very low output impedance and is also able to deliver high output current.

This combination will provide exceptional speed and control over most loudspeakers.

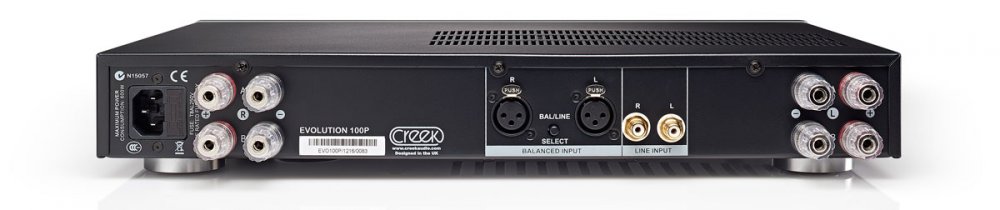

A simple unity gain pre-amplifier selects between balanced XLR and direct un-balanced RCA inputs, to enable the user to input two different signals and select between either, on the fly, if required. It is fully protected from over-current, over-temperature and DC faults and will trigger the output and input relays to disengage immediately if an error occurs.

When required, the Evolution 100P can also be configured as bridged-mono to achieve even higher power output and will therefore sound more dynamic and in control. Please consult Creek Audio or your dealer for details about the external bridging adapter required to simply convert it from stereo into mono operation.




POWER OUTPUT >110 Watts into 8 Ohms
>170 Watts into 4 Ohms
>400 Watts into 4 Ohms mono
CONTINUOUS CURRENT >8.5 A Stereo / 16 A Bridge Mono
MAX CURRENT >26 Amps, Stereo
>50 Amps, Bridged Mono
Current bursts into 0.5 Ohm load
THD < 0.002% 20Hz – 20KHz
SNR >102dB
FREQUENCY RESPONSE 10Hz – 100KHz +/- 2dB Line
GAIN 33.3dB (x46)
INPUT IMPEDANCE 47k Ohms unbalanced, 30k Ohms balanced
CROSSTALK -80dB at 1Khz
DC OFFEST < +/-10mV
SLEW RATE >30 V per uS
INPUTS RCA unbalanced – XLR balanced
OUTPUTS 2 Pairs of high quality binding posts
CONSUMPTION (AT IDLE) <20 Watts (no standby)
(AT FULL POWER) 500 Watts
DIMENSIONS 430x60x280mm W/H/D
