Trilogy 995R Reference Monoaural Hybrid Power Amplifier

The Trilogy 995R is Trilogy Audio Systems much anticipated mono power amplifiers, finally brought to fruition after four years of research. Dedication that is evident in all Trilogy family products.

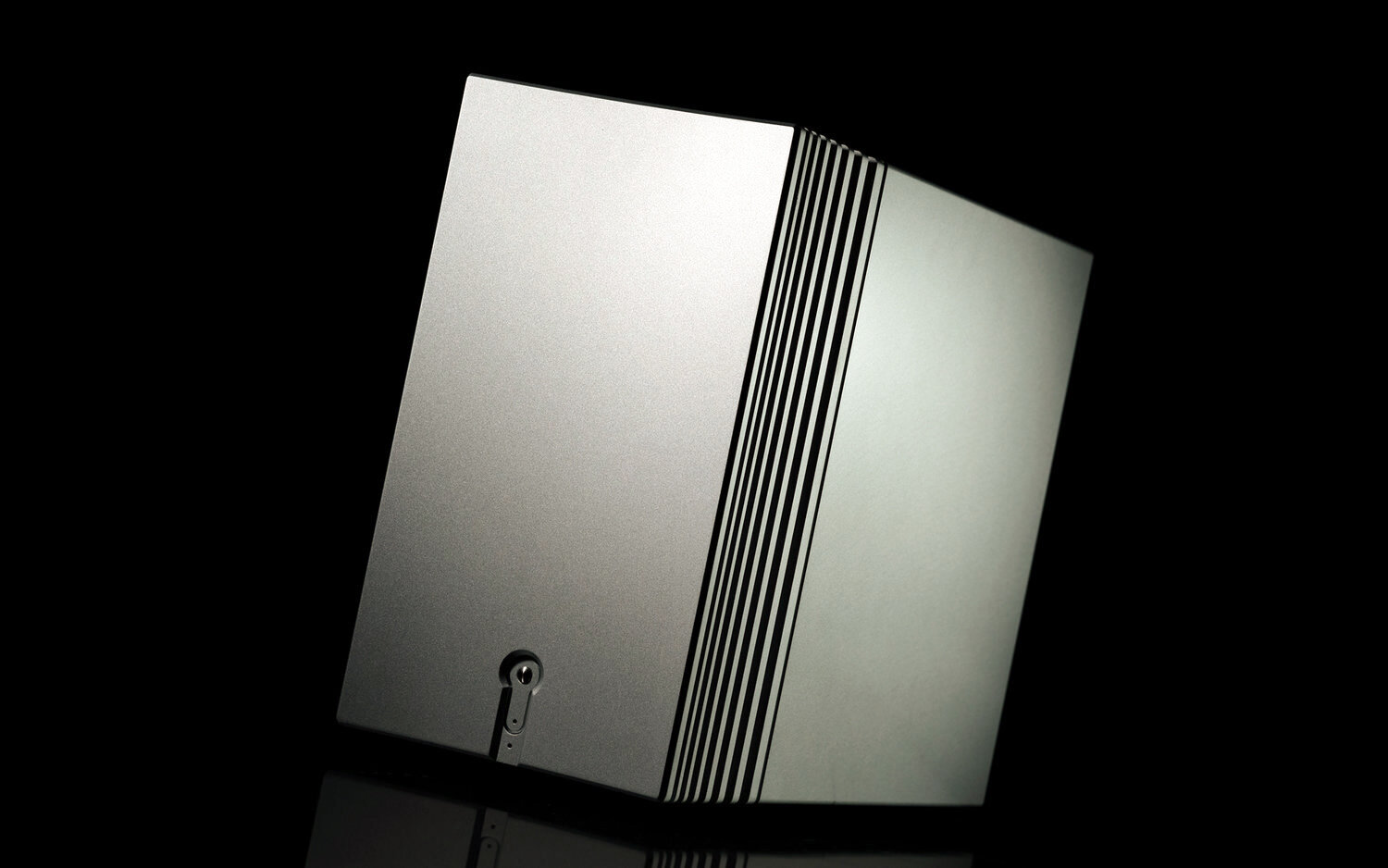

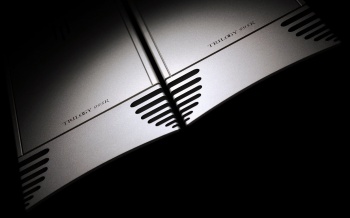

Truly monolithic and architectural in form with details such as machined fins optimised to dissipate heat by clever design via massive radiation surfaces. The considered form is only equalled by its uncompromised internal design.

As many Trilogy products that harness the strengths of both worlds, the 995R is a hybrid machine. These units via a discrete selector button are able to be cycled through three modes, class AB, A and eco A. The last mode behaving as class A whilst when the music is playing, however transistor bias is significantly decreased to reduce power draw if there’s no signal present this is both stable and has the advantage of the minimum of performance sacrificed.

The unit measures (W x D x H) 190 x 460 x 350mm and weighs 38 kilograms which reflects its thorough design rationale. Class AB delivers 200W into 8Ω, Class A mode outputs 40W (usable 55W) with the same load. Frequency response is 5Hz – 100KHz (+/-0.5dB) and gain on SE/balanced inputs is respectively 31 and 25dB.

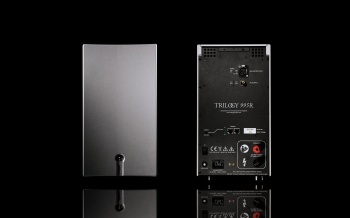

Trilogy 995R is not just beautiful on the surface. The circuit has no feedback, is fully balanced and also features a bridged output stage. Its hybrid topology involves two 6H6P valves as voltage amplifiers, whereas small linear MOSFETs on duty with 12 Japanese Bipolars form the product’s push-pull compound stage. The PSU based on a large shielded toroidal transformer and custom caps enjoys full choke input supply. Featured is Trilogy’s proprietary TASlink network which the owner may choose to utilise based RJ45 sockets allowing connected Trilogy products to communicate and extend functionality across the system, providing details such as run time, or scheduled operation features accessed via TASlink enabled Preamplifiers.

Once again Trilogy has made a product that defies aesthetic convention and made a compact mono power amplifier with truly arresting performance. Statement amplifiers from a true British Independent. Reviews have stated the 915R /995R Pre/Power combination to be the very best of their kind.

Size: 190*460*350 (W*D*H)
Size including connectors: 190*495*350 (W*D*H)
Packaged Size: 680*370*590 (W*D*H)
Weight: 38 Kg
Packaged Weight: 43 Kg
Standby Power Consumption: < 1 Watt
Maximum Power consumption: 1100 Watts
Inputs (balanced): 1 XLR 3 pin Female
Inputs (single ended): 1 RCA phono socket
Input impedance (balanced): 200K Ohms
Input impedance (single ended): 50K Ohms
Gain (balanced): 25dB
Gain (single ended): 31dB
Input sensitivity (balanced): 2.25V RMS for Rated output
Input sensitivity (single ended): 1.15V RMS for Rated output
Rated Power (Class AB Mode): 200 Watts into 8 Ohms / 350 Watts into 4 Ohms
Rated Class A power (Class A Mode): 40 Watts into 8 Ohms
Actual usable power (Class A Mode): 55 Watts into 8 Ohms / 100 Watts into 4 Ohms
Recommended load impedance: 2-16 Ohms
Frequency response: 5Hz-100KHz +/- 0.5dB
Distortion: Less than 1% A weighted at rated output into 8 Ohms
Phase: Phase correct (non inverting)
