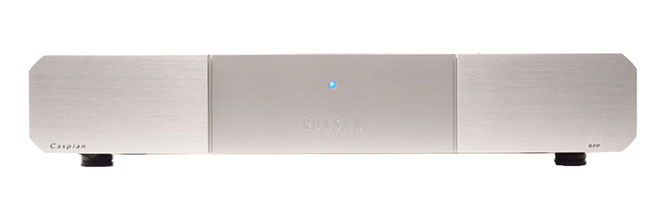

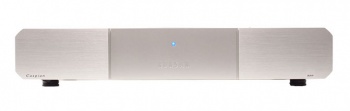

Roksan RPP Reference Phono Stage

RPP Reference Phono Amplifier This stunning new phono preamp is the best sounding and most versatile phono stage Roksan has ever produced.

The aim of the RPP was to further develop the sonic achievements of the renowned previous Roksan Reference Phono Stage. The highest possible quality components are used throughout the circuit to ensure the best possible sound quality. The result is a highly detailed and insightful performance, which possesses bass weight and involving rhythmic speed along with upper frequency sweetness and a wide, deep soundstage.

Designed to match the current Caspian M series, it fits both perfectly, both sonically and aesthetically, into any current Roksan high-end system.

Features:

• Compatible with both Moving Magnet and Moving Coil cartridge designs.
• Three switchable gain level settings.
• Top-level audiophile grade components used throughout.
• Features dedicated DS1.5 power supply module to feed a smooth, high-quality DC signal to the phono amplifier module.
• High quality Caspian M Series chassis and front plate design.

SPECIFICATIONS:

• Gain settings: MM 40.6dB @ 1kHz MC1 56dB @ 1kHz MC2 65.5dB @ 1kHz
• S/N Ratio MM >89dB AWTD (ref. 5.0 mV) MC1 >79dB AWTD (ref. 5.0 mV) MC2 >70dB AWTD (ref. 5.0mV)
• Overload Margin 26dB THD +N <0.01%
• Output impedance <50 Ohm
• Voltage supply Requires +26, 0, -26 Vdc (internal DS1.5 power supply)
