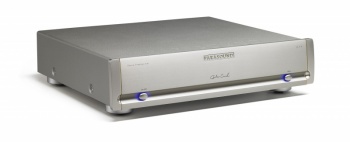

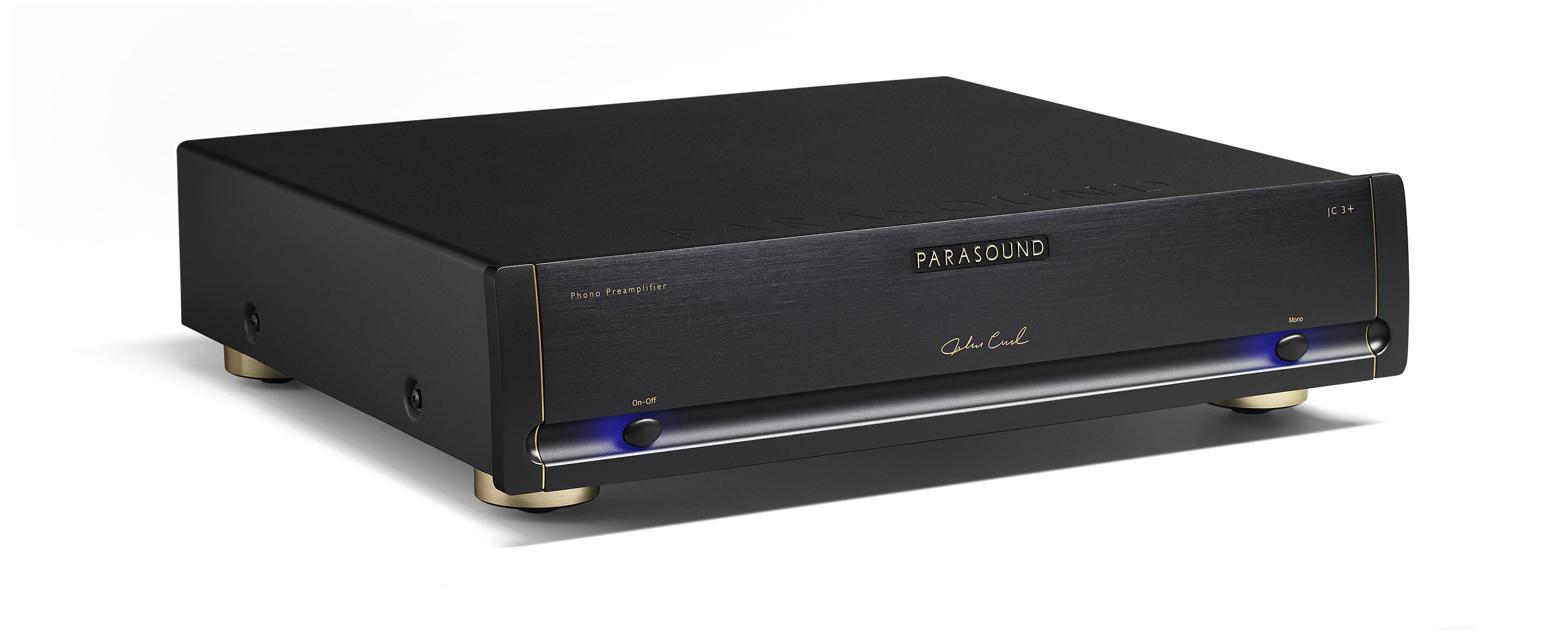

Parasound Halo JC3+ Phono Pre-Amplifier
Zoom  Zoom
Parasound Halo JC3+ Phono Pre-AmplifierParasound Halo JC3+ Phono Pre-AmplifierParasound Halo JC3+ Phono Pre-AmplifierParasound Halo JC3+ Phono Pre-Amplifier

Parasound Halo JC3+ Phono Pre-Amplifier

£4,165.83 Exc. VAT |  |

Parasound Halo JC3+ Phono Pre-Amplifier

The Parasound JC3+ builds upon the success of the JC3 from the Halo range. The Parasound JC3+ features tweaked circuits to further reduce silent background noise, 24k gold plated copper traces for optimal conductivity, and variable MC load adjust independent for each channel from 50-550 ohms with dual gang potentiometers specially made for Parasound by Visha.

  • Designed by John Curl - creator of the legendary Vendetta Research phono preamp

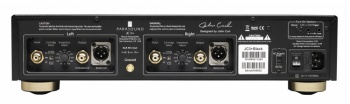

  • Inputs and outputs use Vampire brand 24k gold-plated RCA jacks
  • Balanced outputs use Neutrik brand premium XLR jacks
  • MM 47k ohm, MC 47k ohm or MC variable 50-550 Ohms
  • RIAA accurate within 0.2 dB
  • Exclusively Vishay-Dale resistors in the audio path

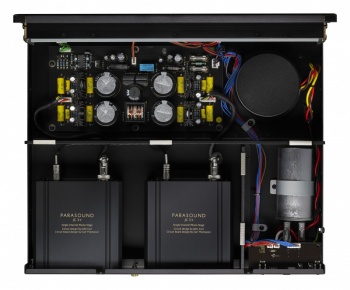

  • Triple shielding; low-carbon mild steel partitions isolate the power supplies & AC wires
  • Dual mono design; each audio channel is separately enclosed in its own extruded aluminum enclosure
  • Separate high speed-soft recovery rectifiers, filter caps and voltage regulators for each channel
  • Mono switch can improve sound of mono and older LPs
  • Built-in AC line conditioner to prevent AC noise from polluting the circuits
  • AC polarity reverse switch can reduce hum in many systems
  • Non-magnetic aluminum rear panel for purest sound
  • Turn On Options switch: manual or auto with 12v trigger input
  • Premium detachable heavy gauge IEC AC cord
  • 2u Chassis, rack mountable with HRA2 (sold separately)

Frequency Response
20 Hz - 20 kHz, +/- 0.2 dB

Total Harmonic Distortion
< 0.01% at 1 kHz

Signal to Noise Ratio, MM
> 87 dB, input shorted, IHF A-weighted
> 78 dB, input shorted, unweighted

Signal to Noise Ratio, MC
> 87 dB, input shorted, IHF A-weighted
> 67 dB, input shorted, unweighted

Interchannel Crosstalk
72 dB at 1 kHz

Input Impedance
MM: 47k Ω
MC: 50 - 550 Ω variable, 47k Ω fixed

Output Impedance
Unbalanced: < 100 Ω
Balanced: < 100 Ω per leg

Input Capacitance
150 pF

Input Sensitivity at 1 kHz
MM: 4mV for 1 V output
MC: 600µV for 1 V output

Total Gain
MM: 48 dB
MC: 64 dB

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

AC Power Requirement
Standby: 1 watt
Power On: 12 watts
115 or 230 VAC 50 - 60 Hz
(Selected on Chassis Bottom)

Width: 17-1/4" (437mm)
Depth: 13-3/4" (350mm)
Height, with feet: 4-1/8" (105mm)
Height, without feet: 3-1/2" (89mm)

Net: 19 lbs. (8.6 Kg)
Shipping: 26 lbs. (11.8 Kg)

Rack Mount Accessory
HRA 2 (may be purchased separately)
