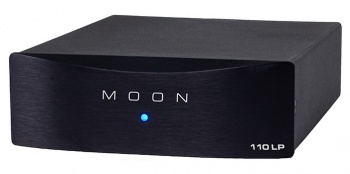

Moon 110LP V2 Phono Preamplifier

Moon 110LP V2 Phono Preamplifier

Still popular even though from another era, vinyl records offer music lovers a particular sound and tangible support that is much appreciated. Crucial in the result of listening to a turntable, the phono preamplifier optimally adapts a turntable to the rest of the Hi-Fi system, by amplifying the signal coming from the cartridge. Whether for a beginner’s table or a high-performance table, there is a MOON phono preamplifier for all tastes. During assembly, our phono preamplifiers benefit from special care. They feature measured and hand-selected capacitors for reproduction with a more precise and natural frequency response.

Developed with award-winning technologies used in our more exotic phono preamplifiers, the MOON 110LP v2 represents another leap forward in sound quality and affordability.

Enjoy all of the MOON sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies.  This is achieved through the combination of an improved power supply and an enhanced circuit layout. Another benefit is an increased input overload margin for trouble free use.

In a matter of just a few seconds, you can easily configure under the unit each of these four parameters: gain, curve, resistance and capacitance. As a result, replacing your cartridge will not render the MOON 110LP v2 obsolete.

• End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)
• End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
• End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
• End user selectable curve (IEC/RIAA)
• Four layer PCB tracings using pure copper for low impedance characteristics
• Inductive DC Filtering for a significantly lower noise floor
• Compact, rigid all-aluminum chassis with gold-plated RCA connectors
• Designed to be powered up at all times for optimal performance

The following accessories are included inside the box with your unit:

• External AC power supply
• AC mains
• Stick for under-panel dipswitches settings

Specifications

• Circuit Layout

  Mirror-image symmetrical circuit

• Single-ended inputs

  1 pair (RCA)

• Input Impedance - Adjustable

  10Ω / 100Ω / 475Ω / 47kΩ

• Input Capacitance - Adjustable

  0 / 100pF / 330pF / 430pF

• Gain Level - Adjustable

  40dB / 50dB / 54dB / 60dB / 66dB

• Curve

  IEC / RIAA

• Signal-to-noise Ratio (full scale @40 dB gain)

  104 dB

• Signal-to-noise Ratio (full scale @60 dB gain)

  87 dB

• Frequency Response

  20Hz - 20kHz (± 0.5dB)

• Intermodulation Distortion

  0.002%

• THD (20Hz - 20kHz)

  0.002%

• Power Consumption @ idle

  2 W

• AC Power Requirements

  100-240V 50Hz / 60 Hz

• Shipping Weight

  3.3 lb / 1.5 kg

• Dimensions (W x H x D)

  5.0 x 1.65 x 6.5 inches
  12.7 x 4.2 x 16.5 cm
