E.A.T E-GLO S Tube Phono Preamplifier
Zoom  Zoom
E.A.T E-GLO S Tube Phono PreamplifierE.A.T E-GLO S Tube Phono PreamplifierE.A.T E-GLO S Tube Phono PreamplifierE.A.T E-GLO S Tube Phono Preamplifier

E.A.T E-GLO S Tube Phono Preamplifier

£2,498.33 Exc. VAT |


E.A.T E-Glo S Tube Phono Stage

Elegant high-end tube phono pre-amplifier with ultra slim design!

E-glo S – is a hybrid phono preamplifier that utIlizes ECC83 tubes (twin triode) in the first and second gain stages In order to get higher gain and lower noise we use in the first stage a cascode connection of tube with with two paralelly connected low-noise J-FET transistors.

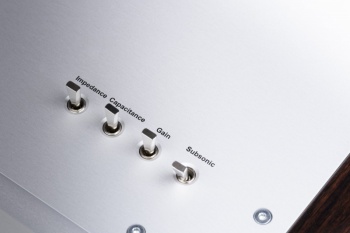

RIAA curve is equalised fully passive and splitted in two steps which allows to achieve perfect impedance matching between the gain stage and equalization block. Phono preamplifier doesn't have any global feedback. It has a massive aluminium chassis, large possibility of adjusting the impedance, capacity and gain. It has subsonic filter with mild effect which doesn't affect audible frequencies in unpleasant way.

A very important part is the advanced power supply that uses anode voltage regulation and a well filtrated voltage. Filtration is in three steps, this result is a perfect S/N ratio and undisturbed musical experience.
E.A.T. E-Glo S Tube phono preamplifier technical information
Input impedance    MC 10,25,50,75,100,1000 Ohm
Load capacity    50,100,150,200,270,320,420 pF
Output impedance    100 ohms
Load capacity    50,100,150,200,270,320,420 pF
Gain MM    45 dB
Gain MC    45,50,55,65,70 dB
RIAA accuracy    within 0,5dB/20Hz – 20kHz
Subsonic    18 dB / Octave
Input    RCA
Output    RCA
Power supply    DC18V/1
Dimensions W × H × D    435 × 90 × 270 mm
