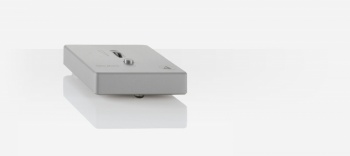

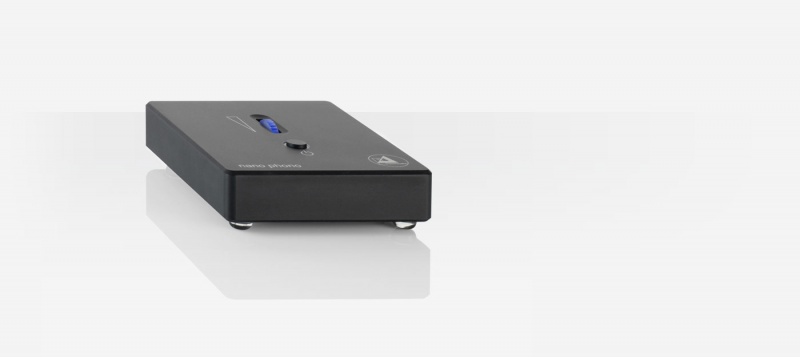

The nano phono V2 phonostage isn't ruffled by anything. External interferences are no longer an issue with this fine piece of engineering.

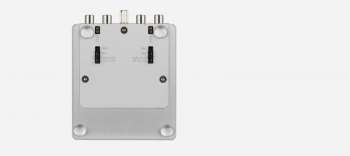

Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.
The nano phono headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.

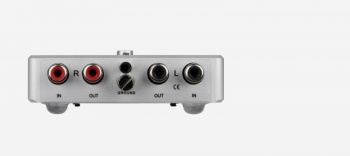

AMPLIFICATION @ 1 KHZ 34 dB to 48 dB (MM mode)54 to 68 dB (MC mode)INPUT LOAD 47 kOhm / 220 pF / MM modeIndividual / User / MC modeMM / MC INPUT switchable by jumper (at bottom)SUBSONIC FILTER switchable (at bottom)RIAA delay time: 75 μs / 318 μs / 3180 μsRIAA ACCURACY ± 0.4dBTHD 0,04%SIGNAL TO NOISE RATIO 81 dB (A) (MM – Mode)70 dB (A) (MC – Mode)CHANNEL SEPARATION > 80dB (1kHz)MAX. OUTPUT VOLTAGE 10V eff. (1kHz), 0-10 adjustablePOWER SUPPLY ±18V DC (external wall power supply, plastic housing)OUTPUT CONNECTIONS Asymmetrical (RCA)POWER CONSUMPTION Max. consumption: 2.3 WattConsumption in operation: 2.3 WattStandby mode: < 0.3 WattOff mode: 0.0 WattWEIGHT Approx. 500 g (preamp and power supply)DIMENSIONS (W/D/H in inches) 3.35 x 4.17 x 0.98DIMENSIONS (W/D/H in mm) 85 x 106 x 25
