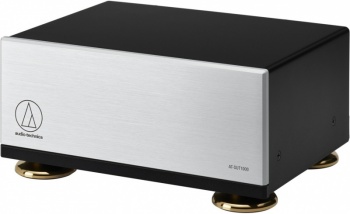

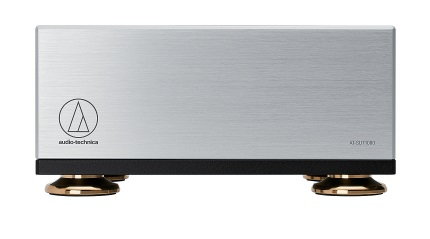

Audio Technica AT-SUT1000 Step Up Transformer
Zoom  Zoom
Audio Technica AT-SUT1000 Step Up TransformerAudio Technica AT-SUT1000 Step Up TransformerAudio Technica AT-SUT1000 Step Up Transformer

Audio Technica AT-SUT1000 Step Up Transformer

£4,249.00
£3,540.83 Exc. VAT |  |

Audio Technica AT-SUT1000 Step Up Transformer

Audio Technica AT-SUT1000 Step Up Transformer employs the top materials and manufacturing techbniques to deliver unchanged sound from a moving coil phono cartridge for a superior analogue listening experience.

Transformer

Equipped with a large-core hand-wound transformer, AT-SUT1000 is compatible with a broad range of voltages which makes it ideal for augmenting low-impedance MC cartridges. The transformer retains a balanced signal through to the phono preamplifier or alternatively, listeners have the ability to select an unbalanced connection. Hanenite rubber mounting is employed to damp vibrations alongside permalloy magnetic shielding to prevent external noise.

Key Features

  • A high-quality MC step-up transformer compatible with balanced and unbalanced connections
  • Special hand-wound, large-core transformer capable of a wide voltage range
  • ideal for stepping up low-impedance moving coil cartridges
  • Transformer maintains balanced signal from the cartridge through to the phono preamp
  • Uses Hanenite rubber mounting to suppress vibrations and permalloy magnetic shielding

- 10- 200/60/40k Hz (-3/1dB @3/10/17Ω)
- In/Out: Stereo right/left

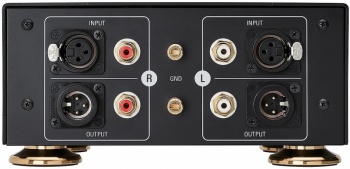

- In/Out Terminal: RCA or XLR (2: hot)
- Step-Up Ratio: 22 dB
- Supported Cartridge: 2 to 17 Ω
- Recommended Load Impedance: 4 kΩ
- Channel Balance: 0.5dB or less
- Channel Separation: 100dB or more
- Dimensions (HWD): 92 × 196 x 150mm
- Weight approx: 5 kg (11 lbs)
- Accessories: 1m (3.3") ground wire
