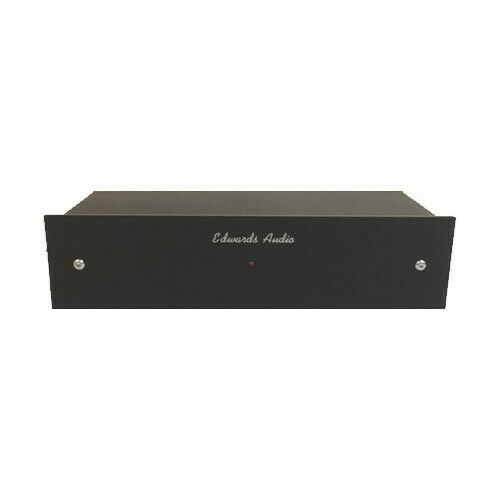

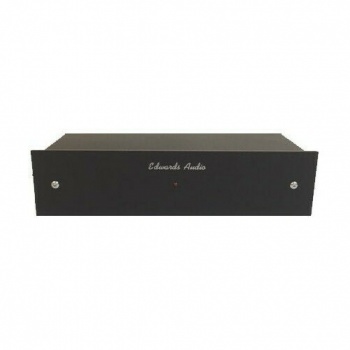

Edwards Audio Apprentice EQ Moving Magnet Phono Stage

Edwards Audio Apprentice EQ Moving Magnet Phono Stage

• Now with internal PSU

Edwards Audio's Apprentice EQ phono stage is derived from the popular Edwards Audio MM2 and uses a similar circuit topology with passive treble and active bass equalization. Unusual at this price area, it features a second stage amplifier to buffer the equalization network and ensure a low output impedance. The double U case construction removes the need for an expensive front panel, keeping the cost low without compromising performance. With its near silent noise floor and 40dB gain, the Apprentice MM is an ideal budget phono stage for those new to the vinyl game, or anyone looking for an incredible analog value.

Specifications:

• Max Input MM: 75mV
• Gain: 40dB MM
• THD: <0.01% 1kHz
• SNR (MM) 5mV: -83dB
• RIAA accuracy: within 0.5dB
• Stereo separation: better than 66dB - 20-20kHz
• Input Loading MM: 47K with 150pF
• Dynamic Range: 110dB
• Output impedance: <10 Ohms
• Max output level: 7.5V RMS
• Dimensions (W x H x D): 4.5"x1.9"x3.5"
• Weight: 2 lbs.
• Power consumption: 1.5W
