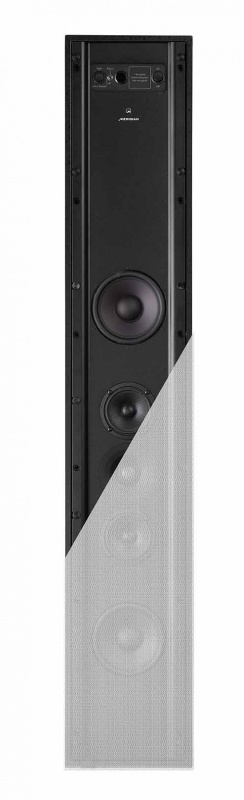

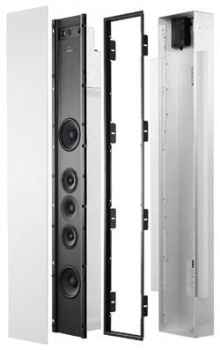

Meridian DSP750 In-Wall Digital Active Loudspeaker
Zoom  Zoom
 Meridian DSP750 In-Wall Digital Active LoudspeakerMeridian DSP750 In-Wall Digital Active Loudspeaker

Meridian DSP750 In-Wall Digital Active Loudspeaker

£8,000.00
£6,666.67 Exc. VAT |
Out of stock

|
Finish:

COLLECT IN STORE ONLY

PLEASE Call to discuss installation details



PLEASE NOTE : WE CAN ONLY SUPPLY MERIDIAN PRODUCTS TO THE UK

Meridian DSP750 In-Wall Digital Active Loudspeaker

  • Price is per single speaker

ULTIMATE POWER AND FIDELITY

The class-leading DSP750 is Meridian’s highest performing architectural loudspeaker. Engineered using Meridian’s, core principles of acoustic design, the DSP750 delivers high-resolution audio that is perfect for architectural installations and dedicated home theatres.

Featuring all-new drive-units, including a beryllium tweeter, the DSP750 produces a natural and lifelike sound with high fidelity and perfect tonal balance. Its high dynamic range, incredibly low distortion, and outstanding signal-to-noise ratio combine to provide full-range audio with exceptional headroom and low listener-fatigue.

KEY FEATURES

  • Class-leading performance for ultimate music and movie reproduction - maximum output of 120dB @ 1m. Frequency response 30Hz – 40kHz.
  • Five new drive units that unleash the full potential of the Class-M DSP engine and Dynamic Hi-Res amplifiers.
  • Five pairs of Class-D amplifiers - each pair bridged capable of providing greater than 100W into 8 Ohms.
  • Custom tweeter with Beryllium dome and diffraction expansion technology for wide dispersion and pinpoint imaging.

AUDIO INPUTS

Meridian SpeakerLink connector (RJ45)

AUDIO OUTPUTS

Meridian SpeakerLink connector (RJ45)

PERFORMANCE

Peak SPL: 120dB @ 1m

Frequency response: 30Hz - 40 kHz

Horizontal dispersion: 120° @ 20Hz - 10kHz, 70° @ 18kHz (-6dB)



AMPLIFIERS

Tweeter: 2 x Class-D amplifiers bridged for >100W into 8 Ohms

Mid-range drivers (each): 2 x Class-D amplifiers bridged for >100W into 8 Ohms

Bass drivers (each): 2 x Class-D amplifiers bridged for >100W into 8 Ohms

TWEETER

Beryllium dome with diffraction expansion technology

MID-RANGE DRIVERS

2 x 100mm with woven polypropylene cone

BASS DRIVERS

2 x 160mm long-throw, high-output with titanium voice coil



FRONT PANEL CONTROLS

On/off rocker switch, Fuse holder, IR window

Rocker switch selects “Right”, “L + R”, “Left or Centre”

RS232 socket – 3.5mm minijack (long version – 18.6mm)

LED indicators show power status and configuration settings

DISPLAY

LED indicators to show power status and configuration settings



POWER

IEC mains cable included with loudspeaker for connection to rough-in box

DIMENSIONS / WEIGHT

HEIGHT: 1230mm [48.5in] (Excludes frame)

WIDTH: 203mm [8in]

DEPTH: 102mm [4in]

WEIGHT: 16 kg [33 lbs]

Be the first to Write a Review for this item!
