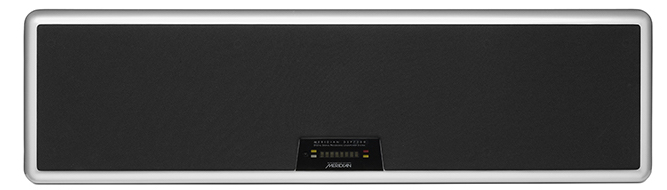

Meridian DSP7200.2 HC/VC Digital Active Centre Loudspeaker
Special Edition option version now available at £14499.00
Perfect for movies or music, the DSP7200.2HC is the ideal partner for both DSP7200.2s and DSP8000s in a multi-channel system. A new Centre Elevation feature allows the DSP7200.2 to be placed below the screen while having its sound image move along with the video image on screen, providing the most immersive movie experience. It also offers Enhanced Bass Alignment that corrects any delays on low frequencies, providing a sweeter, more natural sound.
The DSP7200.2HC provide sounds that are incredibly lifelike, in scale and tone, to systems featuring both DSP7200.2 and DSP8000. The horizontal centre channel enables a stunningly effective home theatre set-up, while also providing seamless sound staging for music in Trifield. The extensive finishes from the full range of Meridian Select colours ensures even 5.1 surround sound systems will effortlessly blend into your home and your lifestyle.
The traditional setup – amplifiers driving passive loudspeakers – is inefficient, limiting sound quality. Meridian loudspeakers contain a complete, matched audio system with efficient DSP crossovers, multiple DACs and driver-specific amplifiers, giving higher overall quality, less power use, and the performance of a traditional loudspeaker eight times the physical volume.
Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install.
Loudspeaker enclosures often vibrate, colouring the sound, making it less lifelike. Our most advanced loudspeakers use a cabinet construction material unique to Meridian: Meridium features highest-grade laminated plywood layers bonded to an aluminium core, allowing the loudspeaker to reproduce music accurately without adding its own sound.
TRIPLE FIFO BUFFERING
Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.
MERIDIAN HIGH RESOLUTION (MHR)
MHR was the first approved encryption method for transferring high definition digital audio between components. Previously, it had to be in the analogue domain, reducing quality. MHR allows secure movement of high resolution digital audio within a Meridian system, without compromise, improving quality by reducing cyclic repetition.
MERIDIAN APODISING FILTER
Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.
ENHANCED BASS ALIGNMENT (EBA)
High or low, all sounds travel at the same speed, so all the sounds from a live musical event arrive at your ear at the same time, whatever frequencies they contain. Loudspeakers, however, have a problem when playing low frequency sounds at the same time as mid and high frequencies – the bass arrives late, and the deeper the sound, the later it arrives. This delayed bass causes music to lose its impact and reduces the sense of the recorded space – it is often described as “boomy”.
The goal is to have time-accurate loudspeakers, where all reproduced frequencies start and end at the same time. In a loudspeaker, this timing is affected by the crossover, driver, and enclosure type. To eliminate the delay between low, and mid and high frequencies, Meridian has designed a combination of digital filters and time delays for the mid and high frequencies. This solution enables the mid and high frequencies to “wait” for the low frequencies, delivering perfectly-timed music playback.
Mid and high frequencies are delayed to time-align them, while upper bass is delayed with a special type of patented filter. These features must be implemented entirely in the digital domain, making them impossible to achieve in any passive or analogue-active loudspeaker design.
Enhanced Bass Alignment provides accurate time-alignment of the drivers in the system, delivering exceptional imaging and a clear, transparent, more life like sound.
When a centre-channel loudspeaker is below the video display, that's where the sound seems to emanate, not from the screen, detracting from the experience. Loudspeakers behind the screen introduce other problems. DSP in a Meridian centre loudspeaker psychoacoustically raises the sound image to centre-screen – where we expect it for the most involving movie or concert experience.
