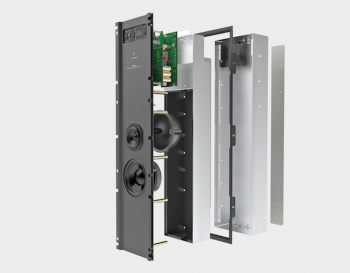

Meridian DSP520.2 In-Wall Active Speaker. Powered by Class-M DSP
Zoom  Zoom

Meridian DSP520.2 In-Wall Active Speaker. Powered by Class-M DSP

NEW DSP520.2 IN-WALL DIGITAL ACTIVE LOUDSPEAKER
DISCREET, UNOBTRUSIVE PERFORMANCE

£2,000.00
£1,666.67 Exc. VAT |


|

COLLECT IN STORE ONLY

PLEASE NOTE : WE CAN ONLY SUPPLY MERIDIAN PRODUCTS TO THE UK





Meridian DSP520.2 Digital Active In-wall Loudspeaker. Powered by Class-M DSP

Price is per single speaker

Meridian’s New In-Wall Speakers are Powered by Class-M DSP

Meridian has introduced a new in-wall loudspeaker to add to its architectural loudspeaker line-up, enabling integrators to deliver the authentic, superior audio performance that customers want for their home cinema or media room installations.

Characterized by their high SPL’s and strong bass performance capabilities, the new DSP520.2 In-Wall Loudspeakers are the first to be powered by the new Meridian “CLASS-M”DSP engine. The double precision Aux filter improves resolution on low frequencies, and the built-in Dynamic bass protection technology maximizes bass extension, achieving the finest possible audio outcome.

The first to integrate Meridian’s “DYNAMIC” Hi-Res amplifiers, for renowned audio quality in a wide range of installation applications. Each drive unit is driven by a pair of powerful, high bandwidth, ultra-HD amps for guaranteed performance and complete control, exceeding the Hi-Res audio standard.

The amplifier’s high mass toroidal transformer is electrically screened, potted, and optimized for the lowest possible mechanical noise, while post-filter feedback delivers lower output noise and improved total harmonic distortion (THD), allowing even the smallest details to be heard. This new feature also provides greater control, accurate detail, and precise spatial resolution.

Meridian’s proprietary Centre Elevation technology raises the perceived image location from an under-screen loudspeaker so that it appears to come from the centre of the screen, resulting in lifelike and spacious sound.



The DSP520.2 boasts an all-new quad-amp DSP design with four powerful amplifiers delivering 100w per drive unit. L+R mode technology ensure the true reproduction of all the audio present in a stereo recording when a single loudspeaker is used on its own, while delivering bass extension down to 50Hz for full range sound. The DSP520.2 features 1 x 140mm long throw bass driver and 1 x 85mm wide-range drivers for full-frequency response, maximum dispersion, and wide listening area. It also comes equipped with the latest on-board Meridian technologies including Centre Elevation.

With a mounting depth of just 100mm th DSP520.2 Loudspeakers are perfect for delivering discrete yet impactful sound in any home cinema or media room application. Their sleek, slim profile and frame system allows for easy installation and precise positioning on almost any type of wall, while the grille can be painted to blend seamlessly into any interior.

THE DSP520.2 AT A GLANCE



All-new quad-amp DSP design with
4 powerful amplifiers delivering over 100W RMS into 8 Ohms, per drive unit

L+R mode for the ultimate high-power sound bar applications

Stackable for high SPL systems, <105dB at 9.4m in 5 stack configuration

Full range sound, bass extension beyond 50Hz and 114dB@1m

Huge aluminium heat sink, taking the amplifiers out of the rack and integrating them into the loudspeaker

Optimised DSP for horizontal or vertical mounting, ideal for soundbar or centre channel usage

Meridian’s Centre Elevation Technology, raises the audio to match the video
on screen

100mm installation depth, suitable for a wide range of applications





Specifications:

TECHNICAL DETAILS

AUDIO INPUTS

Meridian SpeakerLink connector (RJ45)

AUDIO OUTPUTS

Meridian SpeakerLink connector (RJ45)

PERFORMANCE

Peak SPL: 1m - 114dB

Bass extension: 40Hz



AMPLIFIERS

Wide-range driver: 2 x Class D amplifiers bridged for 100W into 8 Ohms

Bass driver: 2 x Class D amplifiers bridged for 100W into 8 Ohms

BASS DRIVERS

1 x 140mm long-throw design

WIDE-RANGE DRIVERS

1 x 85mm with neodymium magnet

FRONT PANEL CONTROLS


On/off rocker switch, IR window
RS232 socket – 3.5mm minijack (long version – 18.6mm)
Rocker switch selects “Right”, “L + R”, “Left or Centre”
LED indicators show power status and configuration settings
LED indicator shows power status


BOX DIMENSIONS / WEIGHT

HEIGHT: 800mm [31.5in] (Excludes frame and cable feed channel)

WIDTH: 203mm [8in]

DEPTH: 102mm [4in]

WEIGHT: 10 kg [22 lbs]



GRILLE DIMENSIONS

HEIGHT: 820mm [32.28in]

WIDTH: 222.5mm [8.73in]

DEPTH: 4mm [0.16in]

POWER

IEC mains connector included in back-box connects to flying lead attached to enclosure
