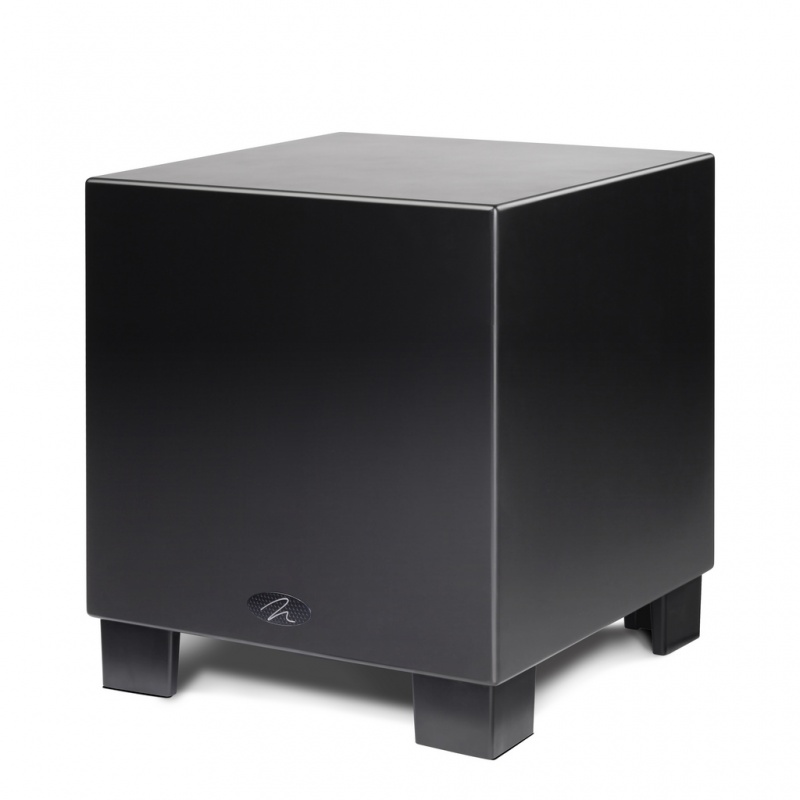

Martin Logan Dynamo 1500X WiFi Compatible Active Subwoofer
Zoom  Zoom

Martin Logan Dynamo 1500X WiFi Compatible Active Subwoofer

£1,665.00 Exc. VAT |  |


Martin Logan Dynamo 1500X WiFi Compatible Active Subwoofer

Ultra-Powerful 15-inch Subwoofer with PBK Room Correction Capability!

Dynamo™ 1500X features advanced MartinLogan engineering including a 650 watt (1300 watt peak) amplifier and a 15-inch low distortion woofer with a powerful magnet structure to deliver huge excursion and output while preserving subtle bass detail. XLR, RCA, and 12-volt trigger inputs guarantee connection flexibility while simplifying system integration. Its standard down-firing configuration quickly (and easily) converts into a front-firing setup for those who prefer a "hidden" installation. With optional PBK room correction (sold separately) the Dynamo 1500X is guaranteed to sound exceptional in any room.

Perfect Bass Kit (PBK) Ready

Although correct placement plays a key role in optimizing subwoofer performance, positioning a subwoofer often requires compromises. Not anymore, thanks to MartinLogan's Perfect Bass Kit (PBK, sold separately). The Dynamo 1500X is MartinLogan's first subwoofer to feature PBK room correction. PBK uses a computer and microphone to listen throughout the listening environment and tailor the sub's performance to the unique acoustic properties of a room—resulting in clean, powerful bass down to 20Hz.

Powerful, High-Excursion 15-inch Woofer

Dynamo 1500X features advanced MartinLogan design concepts. A high-resolution, low-distortion 15-inch woofer delivers huge excursion and sound output while preserving minute bass details, all without a hint of distortion. The cone material's exceptional damping properties ensure the smooth, non-resonant response necessary for seamless blending with MartinLogan electrostatic panel and Folded Motion driver technologies.

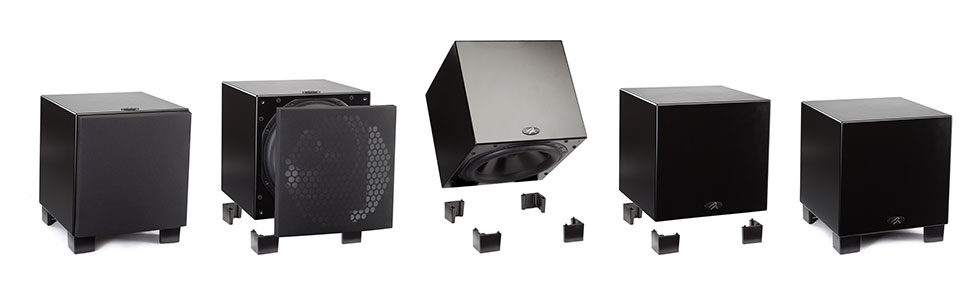

Unique Front-Firing, Down-Firing Design

Placement flexibility is maximized by the subwoofer's front-firing or down-firing options. When placed in a cabinet or other discreet location, the Dynamo 1500X subwoofer can easily convert from standard down-firing to front-firing orientation, with no tools or special skills required. A grill cover and 90-degree RCA adaptors are provided for use in front-firing applications. Further flexibility is afforded by custom energy transfer coupler (ETC™) spikes, which can enhance stability on thick carpets, or create tighter coupling between subwoofer and floor to enhance overall sound quality.

Advanced Ultra-Efficient Amplifier Design and Inverse Mathematical Equalization (IME) Filter

An IME filter is derived from the inverse of the unfiltered driver response. Precision IME filtering yields extremely accurate low-frequency response—far superior to that provided by the simple second-order high-Q filters typically found in most subwoofers in this price range. The Dynamo 1500X delivers a true 650 watts of continuous power and 1300 watts peak. An energy-conscious design, the Dynamo Series amps consume only 10 watts in standby mode.

Sealed Cabinet with Extensive Internal Bracing

Although ports are a convenient and cost-effective way of increasing low-frequency output, when used in small cabinets their reliance on resonant energy impairs bass quality. A compact, sealed subwoofer system minimizes transient-blurring group delay while maintaining smooth, consistent response, regardless of music or movie source material. The Dynamo 1500X's cabinet is constructed from the finest composite material for acoustic integrity. Inside, critically placed structural cross-bracing acts as an excellent baffle for the woofer, while the added rigidity keeps cabinet-induced resonances and non-linearities to inaudible levels.

Seamless System Integration

Engineered for Stereo and Home Theater

Comprehensive signal connections along with low-pass filtering and phase control make the integration of Dynamo 1500X subwoofers into a multi-channel home theater or stereo music setup a simple and seamless process. The main left/right line-level inputs feed into a precision low-pass filter with a cut-off frequency variable from 35 to 150 Hz. For systems in which a surround processor supplies the crossover, the Dynamo Series offers a LFE input, via either XLR or RCA connections, which bypass internal filters. Additionally, a trigger input allows processors to turn the Dynamo 1500X on and off via a 12V trigger connection.

Energy Transfer Coupler (ETC) Spikes

The Dynamo 1500X comes with custom ETC spikes which can be used in place of the feet to enhance stability on thick carpets, or create tighter coupling between subwoofer and floor to enhance overall sound quality.

System Frequency Response
20–200 Hz ± 3 dB. Anechoic in LFE mode.
Low Pass Filter Frequencies
40Hz–150Hz / bypass
0–180° (variable)
15” (38.1cm) high-excursion, polypropylene cone in a
cast aluminum basket with extended throw driver assembly;
sealed non-resonant cabinet design. Thermal sensor
650 watts RMS (1300 watts peak)
Left & Right/LFE RCA: 20,000 Ohms
Left & Right/LFE RCA Line Level, LFE XLR, 12V Trigger
52 lbs. each (23.6 kg)
Mains Power Draw
Standby: 10W
Idle: 15W
Max: 600W
Size (Front-Firing Orientation)
19.3 inches H x 16.75 inches W x 18 inches D
(49.1cm H x 42.5cm W x 45.9cm D)
Size (Down-Firing Orientation)
18.3 inches H x 16.75 inches W x 17.6
