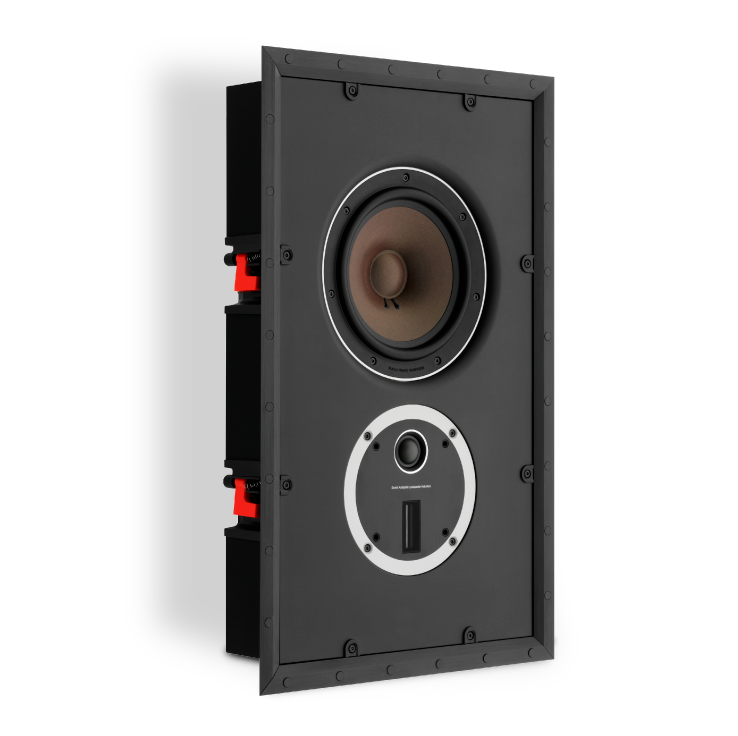

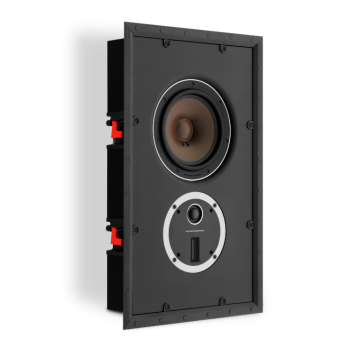

Dali Phantom S-80 In Wall Speakers
The PHANTOM S-80 is the most compact in-wall speaker in the range. With its 8 inch bass/mid-range woofer working in combination with the rotatable hybrid tweeter module, it delivers a clear and well-defined audio reproduction - including a surprising bass performance.
All DALI speakers are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use with install speakers, since they are always mounted flush against either a wall or ceiling. One of our goals for the PHANTOM S models was to create a high-end in-wall speaker with a slim profile that allowed for maximum flexibility when installing. We achieved this by keeping the cabinet depth at only 103 mm, which fits into almost any standard wall. Advanced Soft Magnetic Compound (SMC), which eliminates variation of flux strength in the magnet gap. It reduces distortion to a minimum compared to conventional drivers.

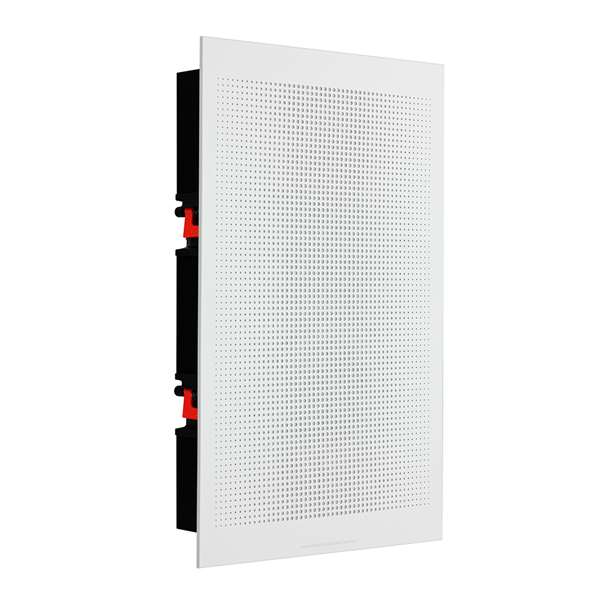

The magnet mounted, floating front grille forms the visual presence of the PHANTOM S speaker. The discreet, simple, but modern design is nonintrusive and at the same time pleasing to the eye.Product Details
The relative compactness of the PHANTOM S-80 makes it perfect for any placement in your audio system. Front, centre, rear or high positions. The compact and slim cabinet offers a full frequency response similar to that of a floorstanding loudspeaker, but without sacrificing valuable living room space. It delivers a no compromise in-wall audio performance with the use of proven speaker technologies. This includes our characteristic wood fibre cones, low-loss rubber surround, solid MDF front baffle, our signature hybrid tweeter module and our superior innovative magnet design including a SMC pole piece.
All models are built around a rotatable hybrid tweeter module making them easy to install for any audio use – be it stereo, centre channel or surround.
We have optimised the primary 8” wood fibre woofer for both bass and mid-range performance. Working in combination with the rotatable hybrid tweeter module, it delivers a clear and well-defined audio reproduction - including a surprising bass performance. This ensures that the PHANTOM S-180 really stands out from the crowd.
The ultra slim 103 mm cabinet design fits into almost any standard wall.
Drivers
The specially developed 8” woofer used in the PHANTOM S-80 was designed and optimized for both bass and midrange performance. We chose to base the core of the woofer on the SMC magnet system developed for the EPICON range. SMC was chosen for its unique ability of dramatically lowering the level of distortion.
Offering 70% more surface area, the 8” woofer is able to move more air and deliver a higher sound pressure at very low frequencies compared to a traditional 6½” woofer. All this whilst still delivering detailed information, rich midrange sound and a full frequency response as of a traditional floorstanding speaker.
The rotatable hybrid tweeter module in the PHANTOM S-80 is the perfect high frequency solution, as it combines a soft dome tweeter with a ribbon tweeter. This ensures an amazing rendering and dispersion of the high frequencies that outperforms other tweeter technologies.
Both the soft dome and the ribbon tweeter are free of artefacts - e.g. resonances and high Q peaks - within their working range. The hybrid tweeter module features an extremely smooth and wide horizontal dispersion - one of our sound design trademarks. Even the detailing of the faceplate for the tweeter module is designed for optimal horizontal dispersion.
The characteristics of the soft dome tweeter are low resonance frequency, high power handling, extreme excursions, and exceptional headroom for high sound pressure levels.
The magneto-static ribbon tweeter trademark is being a true master in horizontal distribution of high frequencies, and a superb partner for the soft dome tweeter’s unique ability to reproduce frequencies from 2 kHz upwards.
Cabinet Design
The compact design of the PHANTOM S-80 fits into most standard walls. It was a challenge constructing such a shallow back cabinet - only 103 mm deep - with such a small footprint, and still achieving the perfect inner volume for the woofer.
The cabinet is constructed from a solid MDF that holds the easy-to-use dogleg mounting system and the terminals. The front of the PHANTOM S-80 integrates elegantly with the wall via the surrounding extruded aluminium frame, and the magnet mounted front grille forms the visual presence of the PHANTOM S series.
The discreet, simple, but modern design is non-intrusive and at the same time pleasing to the eye.
