Paradigm XR 13 Subwoofer

£4,915.00

£4,095.83 Exc. VAT |

Finish:

Description
Specifications
Customer Reviews (0)

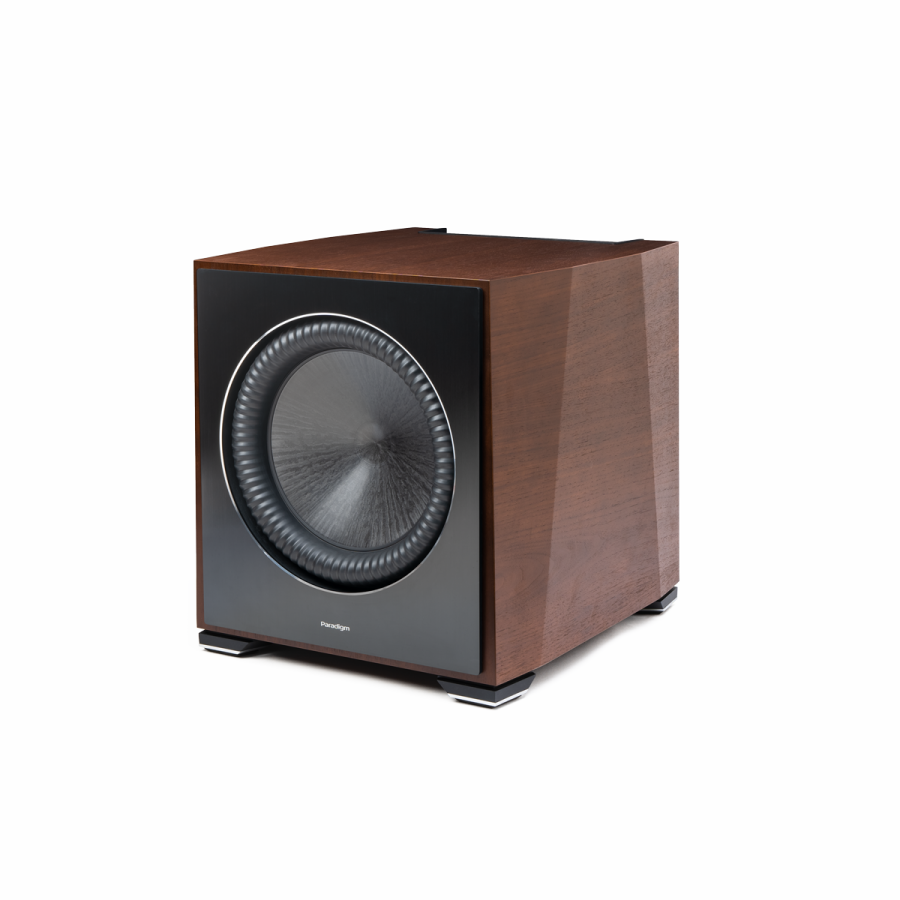

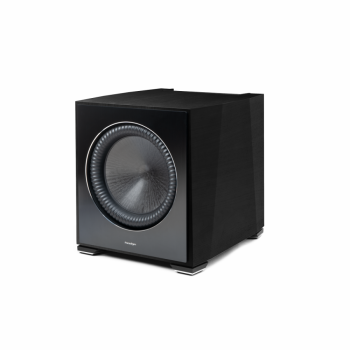

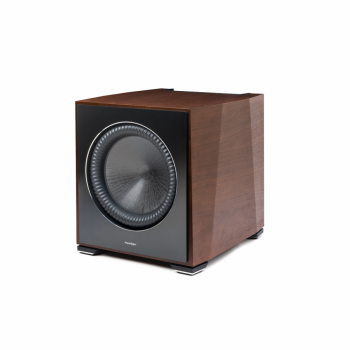

Paradigm XR 13 Subwoofer

Master Class in Design and Engineering

The all-new XR subwoofers are a master class in design and engineering refinement that challenges what is possible from a compact, sealed subwoofer design. Our goal was to push the boundaries of performance while never losing sight of aesthetics by wrapping everything up into a suitable size that won't ever feel out of place.

Art Embracing Science

Like the award-winning Founder Series of loudspeakers, our approach was simple. When designing XR, every part and sub-component was scrutinized and designed to be optimal for its specific purpose and for each piece to complement the others, resulting in a product that is truly greater than the sum of its parts.

Performance was paramount when developing XR. But at Paradigm, we truly believe in our mantra of "Art Embracing Science," so XR's luxurious cabinet is acoustically inert and visually stunning to look at.

These Made in Canada subwoofers truly redefine what you should expect from a subwoofer in this category: Brains, Beauty and Brawn.

A Match Made in Heaven

XR's cabinet embodies our "Art Embracing Science" philosophy. It's the perfect complement to any system and blends perfectly with our award-winning Founder series of loudspeakers, even available in the same gorgeous Walnut, Black Walnut, Piano Black, and exclusive Midnight Cherry finishes.

Purposefully Beautiful and Intentionally Functional

The faceted design of XR's cabinet is not only purposefully beautiful but intentionally functional. The geometric profile elegantly distributes the massive load of housing the powerful woofer inside, providing greater strength and rigidity than traditional rectangular designs. The custom 2" thick MDF front baffle adds further rigidity to the cabinet and acts as the backbone necessary to withstand the brutal forces of the massive woofer and magnet within.

full-screen

Cascade-Fusion Bracing

Cascade-Fusion bracing further increasescabinet rigidity for maximum acoustic precision while also breaking up standing waves internally, which provides more accuracy and greater bass clarity.

Did you know?

During early development, the XR woofers were able to split the test cabinets at the seams from their brute force! Cascade-Fusion bracing was the logical solution, adding strength and beauty to this legendary bass recipe.

Where Form & Function Are One

XR expertly blends form and function to combine every element acting as reinforced bracing to create a beautiful yet robust enclosure free of performance-robbing vibrations.

FEA Optimized & Purpose Built

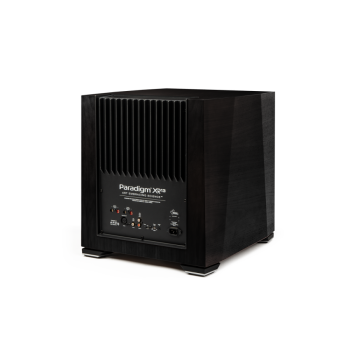

Even the amplifier has been designed with form and function in mind. Its FEA-optimized and purpose-built design ensures no structural integrity is lost. In contrast, its finned design acts as an efficient heat sink to effortlessly transfer heat from the massive power amplifier providing effective cooling for years of worry-free operation and stable performance.

ICATIONS

DESIGN	13” (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in 2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included
AMPLIFIER FEATURES	Auto-On / Off, Trigger On / Off
FREQUENCY RESPONSE ON-AXIS	±3dB from 17 Hz to 140 Hz
ROOM CORRECTION	ARC Genesis (microphone included)
LOW FREQUENCY DRIVER	13” (330 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 2” high-temperature voice coil
EFFECTIVE PISTON AREA (SD)	93.7 sq in / 0.06 sq m
EFFECTIVE DISPLACEMENT	366.1 cu in/6 L
LOW FREQUENCY RESPONSE	12 Hz (DIN)
AMPLIFIER POWER	2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included
UNBALANCED INPUTS	Stereo or Mono (dual RCA jacks)/LFE RCA jack
BALANCED INPUTS	One Balanced XLR (LFE)
SPEAKER/HIGH-LEVEL INPUTS	Left and right speaker level inputs
INPUT GROUNDING	Grounded
POLARITY	0 or 180 degrees
PHASE	Variable 0°-180°
DIMENSIONS HXWXD	18.8” x 17.3 ” x 19.4” (47.8cm x 43.8cm x 49.3cm)
WEIGHT	103.8 lb / 47.1 kg
FINISHES	Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut
