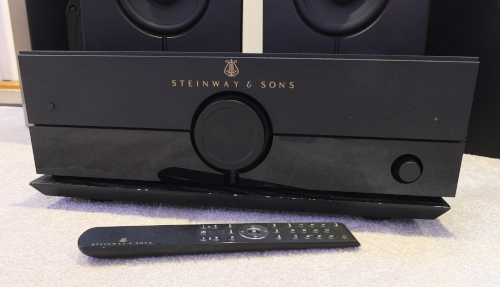

The Steinway & Sons P100 is equipped with the advanced technologies for which Steinway Lyngdorf is known, including RoomPerfect™ and fully digital signal processing. P100 supports all video resolutions up to 600MHz pixel clock, including 4K with the new high dynamic range formats. With the built-in media player, the P100 is ideal as a media center for smaller installations.
Full support of every audio format
The P100 offers full support of every audio format on the market, including immersive surround sound such as Dolby Atmos®, DTS:X, and Auro-3D®, and it can intelligently optimize the received audio formats to your speaker setup. A total of 10 channels can be decoded by the P100, and it supports up to 256 speakers through the Steinway Lyngdorf Digital Link.
Decoding: Dolby® Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, Auro-3D®, 10 channels
Post processing: Dolby Surround, Auro-Matic®, DTS Neural:x, DTS NEO:X

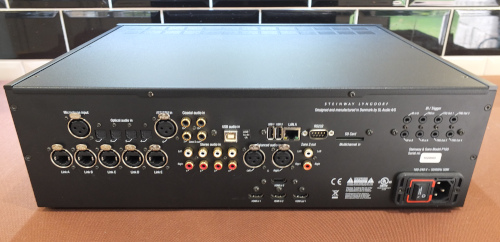

Inputs: Audio: 1 x AES/EBU S/P-DIF input, 3 x S/P-DIF coaxial inputs, 4 x S/P-DIF optical inputs, 1 x USB audio input (≤192kHz/32bit), 1 x balanced stereo analog input (XLR), 4 x single ended stereo analog inputs (RCA), 1 x multichannel single ended analog input (RCA), 1 x microphone input (XLR – Video: 3 x HDMI™
Outputs: Audio: 5 x Steinway Lyngdorf Digital Links (CAT 5e based), 1 x single ended stereo analog output for secondary audio output, 1 x SPDIF coax digital out- put, 1 x HDMI™ – Video: 1 x HDMI™ – ARC compatible
Miscellaneous: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x Trigger input, 4 x Trigger outputs, 1 x RJ45 Ethernet LAN connector, 2 x USB connectors, 1 x SD card slot (storage for system software)
Interface options: RS232, Ip, Web interface, Ihiji, Remote Control App on iOS and Android platforms
Mediaplayer: Internet radio (vTuner), Spotify connect, DLNA Support of FAT32 based media storage (see DLNA formats here), Airplay, Roon Ready
Control interfaces: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB connectors, 1 x SD card slot (Backup – storage for system software and settings)
Placement options: Rack mount or freestanding
Dimensions (H x W x D): 14.0 x 45.0 x 35.9 cm / 5.51 x 17.7 x 14.1 in
Weight: 6.6 kg / 14.6 lb
Steinway & Sons

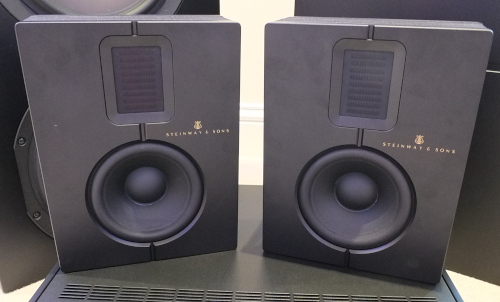

The Model S series has been installed in hundreds of high performance home cinemas and living rooms all over the world. It is petite and so discreet it can be installed without compromising décor, but don´t let the size fool you. The Model S-15 is an incredibly powerful speaker recognized with numerous awards and accolades, making it the clear choice for those seeking perfection at a competitive price point.
The performance of the petite Model S is nothing short of extraordinary. The reason is partly due to the innovative design of the Steinway & Sons Model S-15 speaker. Because the Model S-15 relegates bass duties to boundary woofers, it reproduces only high and midrange frequencies, and it does both with incredible volume capabilities and zero distortion. Its legendary performance makes it a perfect match for medium-sized high-performance home theaters.
Ambience enhancing radiation
A key feature of the Model S-15 speaker is its innovative AER (Ambience Enhancing Radiation) dipole tweeter design. This design disperses the highest frequencies, which produces a spacious and live effect throughout the listening room, similar to the effect you get from our flagship Model D speaker or a live instrument.
Hold the Model S-15 in your hand, and you’ll immediately feel the quality of its surprisingly heavy, ultra-rigid low-resonance construction. Inside, a matte gold colored aluminum frame serves as the backbone. The midrange driver is tightly clamped between the metal back and front, preventing any resonance. The design is a reference to the original Steinway & Sons Model S piano, featuring a perfect high-gloss-lacquer cabinet with the matte gold inner construction shining through, ennobled with the original Steinway & Sons logo.
Extraordinary midrange driver and tweeter
Only the best is good enough, even in our smallest loudspeaker, which offers an Air Motion Transformer with an ultra-thin, folded Kapton diaphragm for completely clear, distortion-free performance even during the loudest crescendos. The midrange is taken over by a light aluminum cone driven by an extremely powerful neodymium magnet. When combined with one of the Steinway & Sons woofer models, the sound performance belies its size.
Ingenious dipole tweeter design
Our large flagship Model D loudspeaker is famous for its dipole design, exciting the sound in a room like an instrument would. But a dipole design in a very small on-wall speaker? Impossible? Meet the Model S-15, featuring a dipole tweeter with our ingenious AES technology, Ambience Enhancing Radiation. It diverts the backwards sound to either side, using a specifically angled reflector that extends the sound field while it also cancels-out reflections at the room’s nearest sidewalls, for the purest sound.
Frequency range: 120 – 22k Hz
Max SPL @ 1m: 114 dB
Amplification needed: 1 channel
Dimensions (H x W x D): 26.0 x 20.0 x 7.9 cm / 10.2 x 7.8 x 3.1 in
Weight: 4.4 kg / 9.7 lbs
Finish: Matte black
The LS series is the number one choice for larger rooms and spaces with rows of elevated seats. The series features an innovative line source approach incorporating floor-to-ceiling stackable speakers and boundary woofers. This allows sound to propagate over long distances, thus ensuring tonal consistency by reducing reflections from ceiling and floor, especially in large rooms. Line source technology means that every seat in the listening space has almost the same volume level and offers the same sound experience, from the front to the rear of the room.

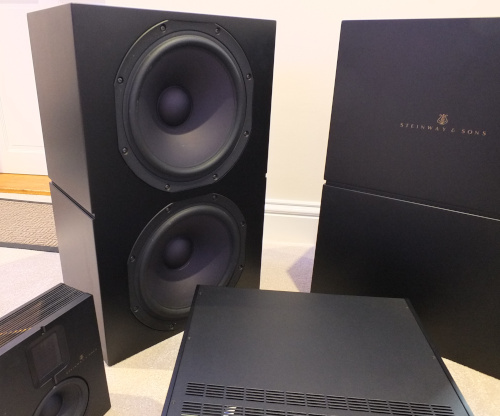

Stackable boundary woofers
The stackable LSR-212 boundary woofer, with its powerful 117 dB SPL, provides powerful and accurate bass to create a fully encompassing experience – direct sound and reflections from the environment arrive at the listening point at exactly the same time. Stacking options are fully customizable; you can stick with one pair for a smaller room, or begin to stack woofers to achieve the same sound pressure in a larger room.
Description: In-room stackable boundary woofer
Frequency response: 20 – 500 Hz
Max SPL @ 1m: 117 dB (120 dB Corner)
Amplification needed: 1 channel
Dimensions (H x W x D): 71.0 x 45.0 x 27.0 cm / 28.0 x 17.7 x 10.6 in
Weight: 35.4 kg / 78.3 lbs
Finish: Matte black, high-gloss black, high-gloss white.
