Primare PRISMA: Experience the new range

The 2017 product range features Prisma, Primare’s new whole-home, high fidelity control and connectivity solution. Prisma offers network playback from stored and streamed media, Wi-Fi and Bluetooth® connection, as well as multi- room/multi-zone connectivity and control, all managed through the Prisma application, allowing Prisma system management from any mobile device.

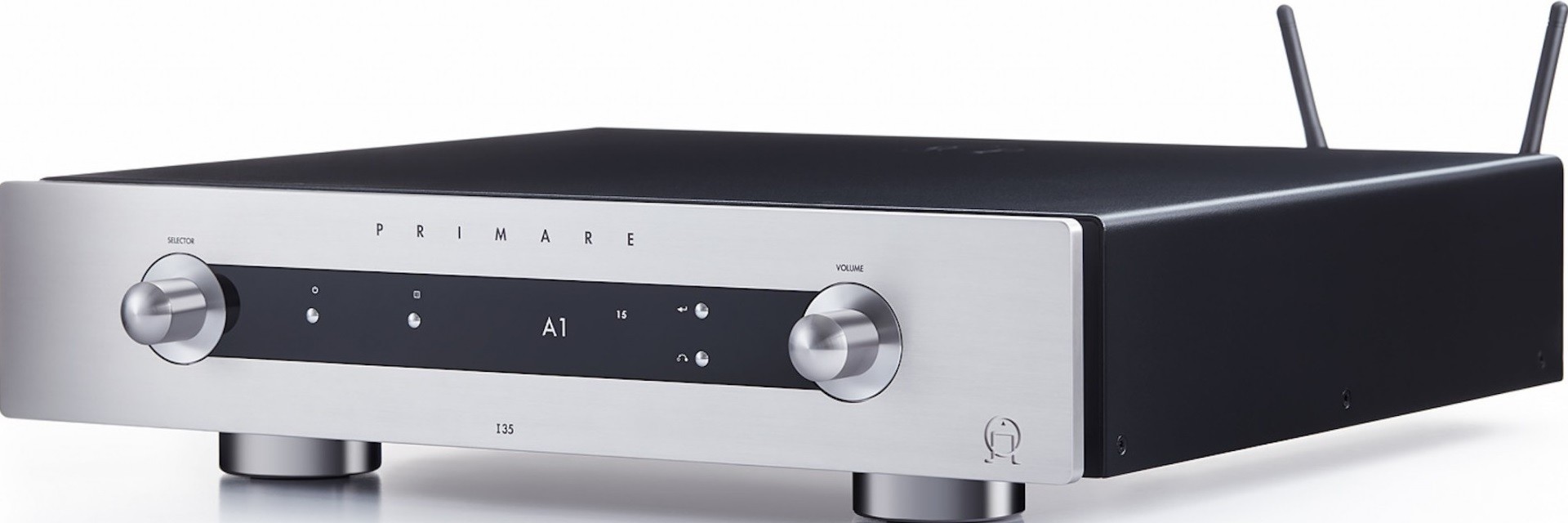

i35 prisma

The I35 Prisma integrated amplifier is the first to use the new UFPD 2 power system, a refinement of Primare’s award-winning UFPD all-analogue Class-D technology. Providing 150 watts at 8 ohms, the I35 Prisma offers fully balanced analogue input options and a full-featured DAC stage enabling PCM 768kHz and DSD 128 conversion, as well as Prisma connectivity and control technology.

Specifications:

Amplifier

• Output Power: 2 x 150W 8Ω; 2 x 300W 4Ω
• Analog Inputs: 2 pair XLR; 3 pair RCA
• Outputs: PRE 1 pair RCA; Line 1 pair RCA
• Frequency Response: 20 Hz - 20k Hz, - 0.2dB THD + N: < 0.01%, 20Hz - 20kHz, 10W at 8Ω
• Signal to Noise: - 100 dB

DAC

• Inputs: 4 x TOSLINK (96 kHz); 2 x RCA (44.1-768 kHz / 16 -32 bit); 1 x USB-B (PCM 192 kHz / DSD 128)
• Output: 1 x RCA (192 kHz native, optional 48 or 96 kHz)

Prisma

• Audio formats: WAV, LPCM, FLAC, ALAC, MP3, MP4 (AAC), WMA, OGG, DSD
• Sample rates: 24 - 192 kHz
• WLAN: IEEE 802.11 a / b / g / n / ac compliant; 2.4 / 5 gHz Input USB-A (192 kHz); LAN x 2 (192 kHz) WLAN (192kHz); Bluetooth®

General

• Control: RS232; IR in / out; Trigger out
• Power Consumption: Standby 0.5W; Operate 42W Dimensions (W x D x H mm): 430 x 420 x 105 Weight: 11 kg
• Color Options: Black and Titanium
