Primare I15 Prisma MkII Integrated Amplifier

Primare I15 Integrated Amplifier

Primare PRISMA: Experience the new range

The 2017 product range features Prisma, Primare’s new whole-home, high fidelity control and connectivity solution. Prisma offers network playback from stored and streamed media, Wi-Fi and Bluetooth® connection, as well as multi- room/multi-zone connectivity and control, all managed through the Prisma application, allowing Prisma system management from any mobile device.

i15 prisma

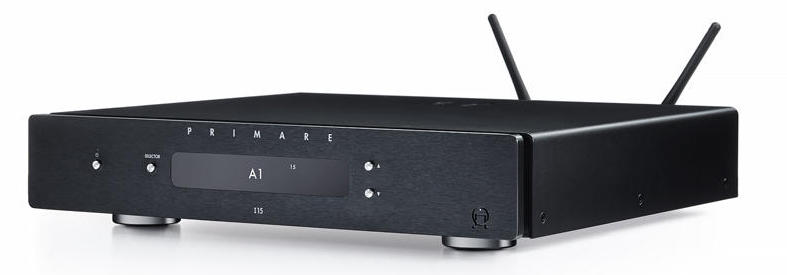

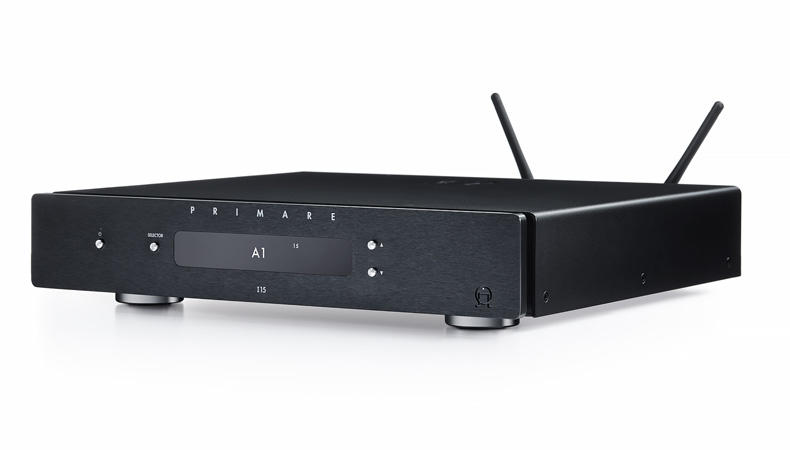

The compact I15 Prisma integrated amplifier provides 75 watts of power per channel, digital to analogue conversion with PCM 768kHz and DSD 128 capabilities, as well as complete digital media access and system management by way of the Prisma connectivity and control technology.

Specifications:

Amplifier

• Output Power: 2 x 75W 8Ω; 2 x 150W 4Ω
• Analog Inputs: 1 pair RCA
• Analog Output: 1 pair RCA, switchable LINE or PRE Frequency Response: 10 Hz - 20 kHz, - 0.5dB
• THD + N: < 0.05%, 20 Hz - 20 kHz, 10W at 8Ω Signal to Noise: - 100 dB

DAC

• Inputs: 4 x TOSLINK (96 kHz); 2 x RCA (44.1 - 768 kHz / 16 - 32 bit); 1 x USB-B (PCM 192 kHz / DSD 128)
• Output: 1 x RCA (192 kHz native, optional 48 or 96 kHz)

Prisma

• Audio formats: WAV, LPCM, FLAC, ALAC, MP3, MP4 (AAC), WMA, OGG, DSD
• Sample rates: 24 - 192 kHz
• WLAN: IEEE 802.11 a / b / g / n / ac compliant; 2.4 / 5 gHz Inputs USB-A (192 kHz); 2 x LAN (192 kHz); WLAN (192 kHz); Bluetooth®

General

• Control: RS232; IR in / out; Trigger out
• Power Consumption: Standby 0.2W; Operate 31W Dimensions (W x D x H mm): 350 x 340 x 75 Weight: 6.35 kg
• Color Options: Black and Titanium
