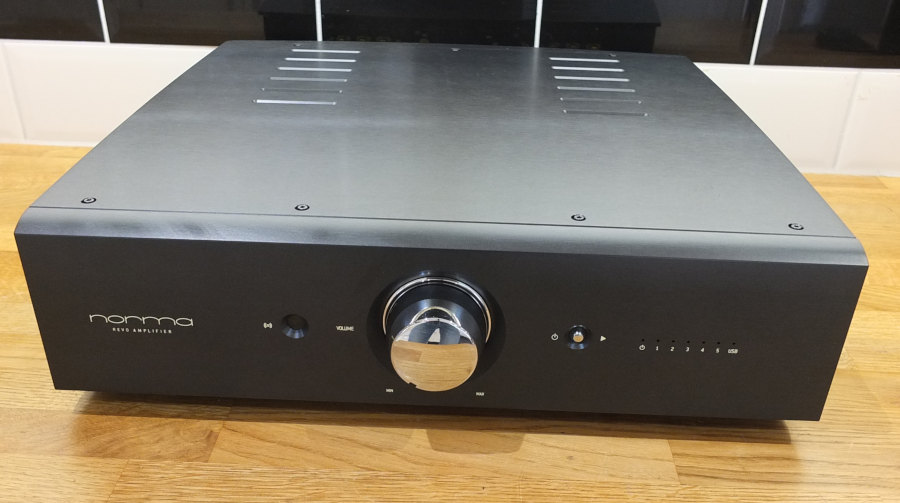

Norma Audio REVO IPA-140 Integrated Amplifier - Black - With USB board and Phono Stage - Ex Dem
Zoom  Zoom

Norma Audio REVO IPA-140 Integrated Amplifier - Black - With USB board and Phono Stage - Ex Dem

£4,566.67 Exc. VAT |


Norma Audio REVO IPA-140 Integrated Amplifier - Black - With USB Board and Phono Stage - Ex Dem.

Very good condition our demonstration unit. Tatty box.


'It balances huge, lush instrumentation and voices with masterful attention to detail'


The Norma Revo IPA-140 integrated amplifier represents a definitive choice for amplification. Its high power (140W/8Ohm) and the ability to drive the most demanding speakers, make it an extremely versatile amp. Versatility is enhanced by the ability to customize the input / output connections and to insert the Phono MM / MC board. The elegant and sophisticated style is perfectly in tune with its sound personality. Power, dynamics, speed and transparency are combined to create outstanding musicality and a total absence of listening fatigue. The inside workings show that the technical refinement follows the same philosophy. The Revo IPA-140 uses a proprietary circuitry, regulated high-speed power, low noise and is built with a careful selection of the best materials available.
- TEAC CD Player Mechanics, with 5 seconds read buffer of
- Two PCM 24 Bit Digital to Analogue converter.
- Digital filter x8 oversamplig with user selectable filter roll-off (Sharp & Slow).
- Proprietary I-V architecture conversion.
- Audio analogue output stage based with full discrete devices amplifier.
- Extreme low noise, high resolution and high speed schematic topology.
- Wide band ( >2 MHz ).
- RCA and Balanced output connection.
- Separate power supply for Digital and Analogue Output stage.
- High filtering capacity with numerous low impedance capacitors.
- 13 Powers supply regulators.
- Full aluminium non-magnetic frame.
- Toroidal power transformer specially designed for audio applications, low dispersion flow. low mechanical noise, high permeability magnetic core with consequent low output impedance.
- Remote control of all functions with NORMA remote control (Philips RC-5 Standard code).

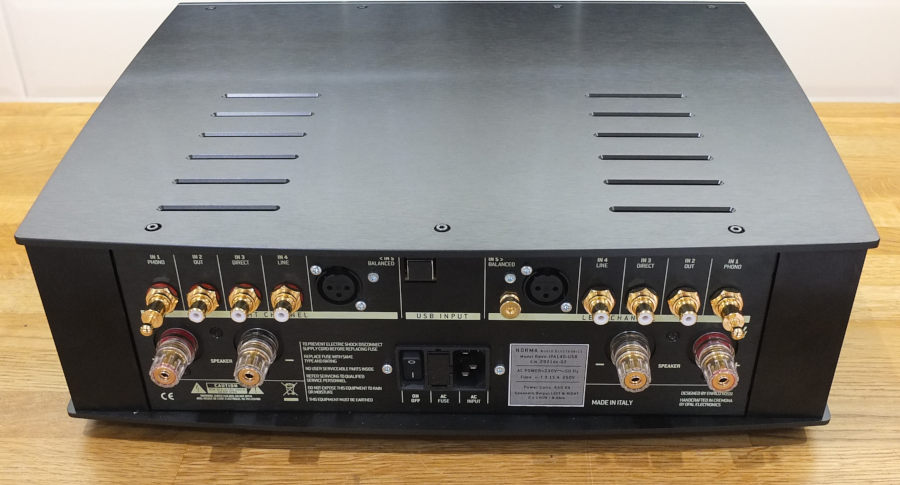

Inputs: 4 RCA, 1 XLR Balanced, optional Phono, 1 USB DAC optional
Input impedance: 47Kohm (not selected input) / 10 Kohm (selected input)
Input Configuration: Phono MM/MC, Line, Direct AV, Balanced
Output Signal: Passive Pre Out , Active Pre Out, Tape out, Subwoofer out
Output Impedance (Pre-Out): 200 ohm
Output Power: 1 Binding Post pairs, accept 4mm banana plugs and fork
Frequency Response: 0 Hz – 1.8 MHz (-3dB, non filtered)
Output Power: 140 W RMS / 8 Ohm – 280 W RMS / 4 Ohm (each channel)
Gain: 34 dB
Configuration: Dual Mono
Circulation: Solid state,
Power devices: MosFet, 3 pairs for each channel
Output current available: 36 A continuous, 150 A peak (per channel)
Ability to filter: 72.000 uF, 12 electrical capacitor for each channel
Electric transformers: 2 toroidal special audio use, 400 VA per channel
Supply: 230 V AC / 50 Hz, (100V AC or 115 VAC / 50-60Hz in some country)
Dimensions (HxWxD): 110 x 430 x 365 mm, (excluding feet, knob and rear jacks)
Weight: 25 Kg
Note: Stereo Integrated Amplifier fully remote controlled
