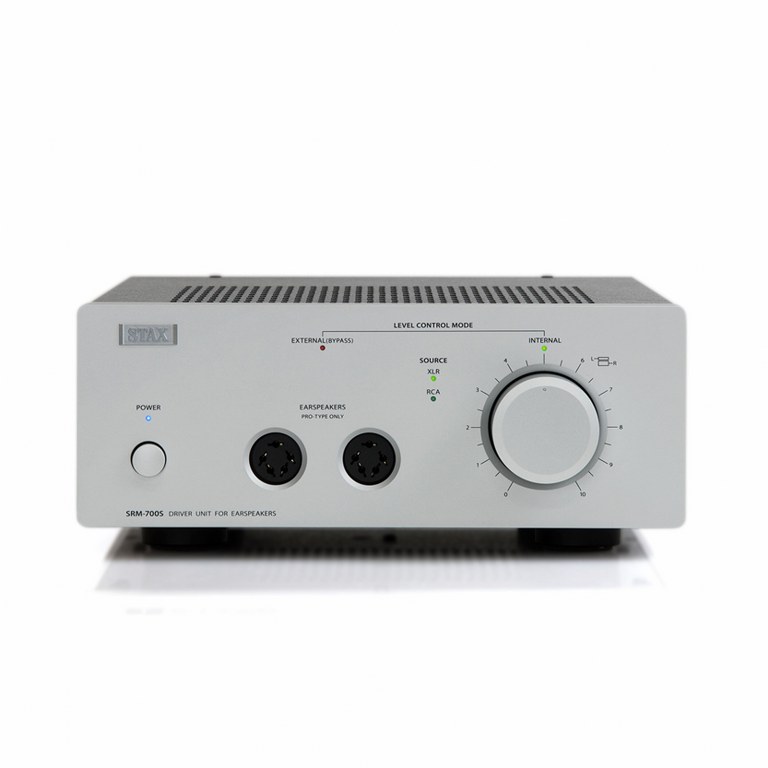

Stax SRM-700S Solid State Energiser

The SRM-700S is an electrostatic headphone driver utilizing a fully discrete dual FET. The output of the J-FET and the large current emitter follower circuit are low noise. Accurate music reproduction is realized without missing any fine details.

Features

Power transistor array features effective heat dissipation via large-sized heat sink
High-definition film capacitors
Hand-selected matching FET
EMI shielded volume control
Volume control bypass switching
Switchable RCA and XLR inputs. RCA parallel out.
Features newly developed large-sized aluminium insulators, combined with new vibration-proof material plus high frictional coefficient.

Type: All-stage FET configuration DC amplification driver unit
Frequency response: DC – 100 kHz (with SR-009S)
Gain: 60dB
Harmonic distortion: 0.01% or less (1 kHz / 100 V rms output)
Input impedance: 50 kΩ (RCA), 50 kΩx 2 (XLR)
Maximum output voltage: 450 V rms (1 kHz)
Bias voltage: PRO 580 V
Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)

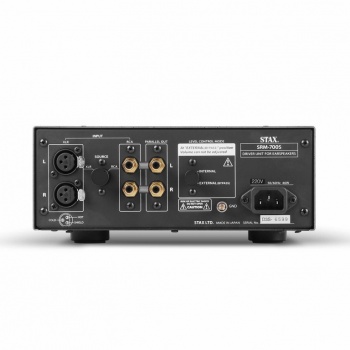

Input terminal: RCA x 1, XLR x 1
Output: RCA parallel output terminal
Power consumption: 46 W
Dimension: 240 W x 103 H x 393 D mm (maximum protruding portion included)
Weight: 6.3 kg
