Stax SRS-005S MkII In Earspeaker System

Stax SRS-005S MKII In Earspeaker System

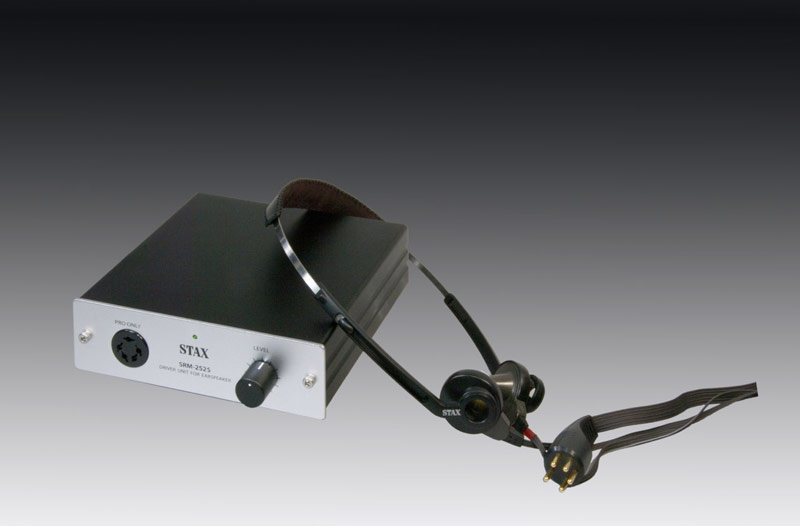

• System includes SRM-252S energiser and SR-002 In Earspeakers.

The redesigned ear canal type structure of the S-002 enables you to enjoy excellent electrostatic sound quality without covering your ears.

Re-designed Ear Piece

Re-designed ear piece with 3 silicone ear bud sizes.

LIGHTER DIAPHRAGM

15% lighter than the S-001/MK2 results in further resolution, transparency and purer listening pleasure.

The SRM-002 is an exclusive driver unit (amplifier) for driving S-002 earspeaker. Newly designed power supply for extended listening on battery without performance loss. Switchable power mode between Normal (performance) or ECO (battery saving).

SR-002 SPECIFICATIONS:

• Type: Push-Pull electrostatic circular sound element, In-The-Earcanal type enclosure
• Frequency Response: 20-20kHz (4dB)
• Capacitance: 44pF (including cable)
• Sensitivity: 110dB / 100V r.m.s. 1 kHz
• Bias Voltage: 550-580V DC
• Ear Pads: Silicone earbuds (Small, Medium, or Large) Medium included
• Cable: parallel 6-core, 1.5m full length
• Weight: 0.4oz without cable / 1oz with cable

SRM-252S Specification:

• Frequency response: DC- 35 kHz (40Vr.m.s. output SR-207, when using one unit)
• Rated input level: 125 mV with 100V output
• Maximum input level 30 V r.m.s. with volume at minimum setting
• Amplification: 58 dB (x800)
• Total harmonic distortion max. 0.01% (1 kHz / during 100 V r.m.s. output)
• Input impedance 50 kΩ (RCA)
• Maximum output voltage: 280 V r.m.s. / 1 kHz
• Standard bias voltage DC580 V (PRO bias)
• Power consumption DC12V, 4W/ Exclusive AC adaptor attached For your area
• Temperature range for use Between 0º and 35ºC, max. 90% (no condensation)
• External dimensions 132 (W) × 38 (H) × 132 (D) mm (without Knob, Pin jack)
• Weight 540g
