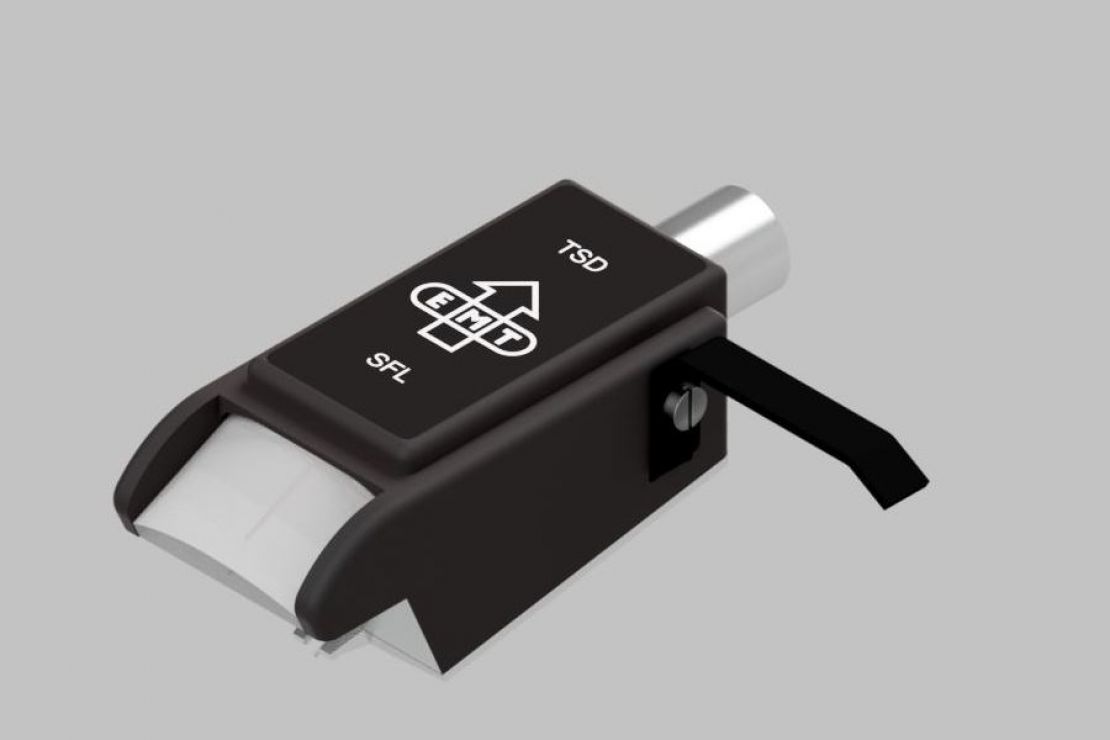

EMT TSD SFL Cartridge

EMT TSD SFL Cartridge

The new TONDOSE features the well-established EMT generator, integrated into a monobloc structure, milled from a solid block of magnesium. Thus both rigidity and resonance behaviour have been significantly improved.

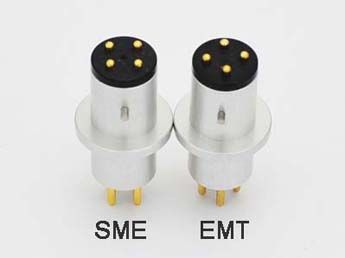

Besides the standard EMT tonearm-connection, we offer the option INT (Ortofon A compatible) and option X (for SME standard). Furthermore, we manufacture 1/2 and 1/4 coil for lower impedance versions on request.

The TSD SFL features a Super-Fineline diamond shape. It is is fully compatible with the previous TSD 15.

Diamond: MR HP
Cantilever: Boron
Transducer: MC Stereo
Connection: EMT
Vertical Tracking Angle: 23°
Weight: 17.5g
Tracking force: 2,5g
Output Transfer Level: 0,21mVs/cm
Compliance: 12µm/mN
Frequency response: 20 - 30‘000Hz
Output voltage: Standard 1.05mV, 1/2 Coil 0.5mV, 1/4 Coil 0.3mV
Impedance: 2x 24Ω
Recommended load: 200 - 300Ω
