EMT JSD VM Cartridge

EMT JSD VM Cartridge

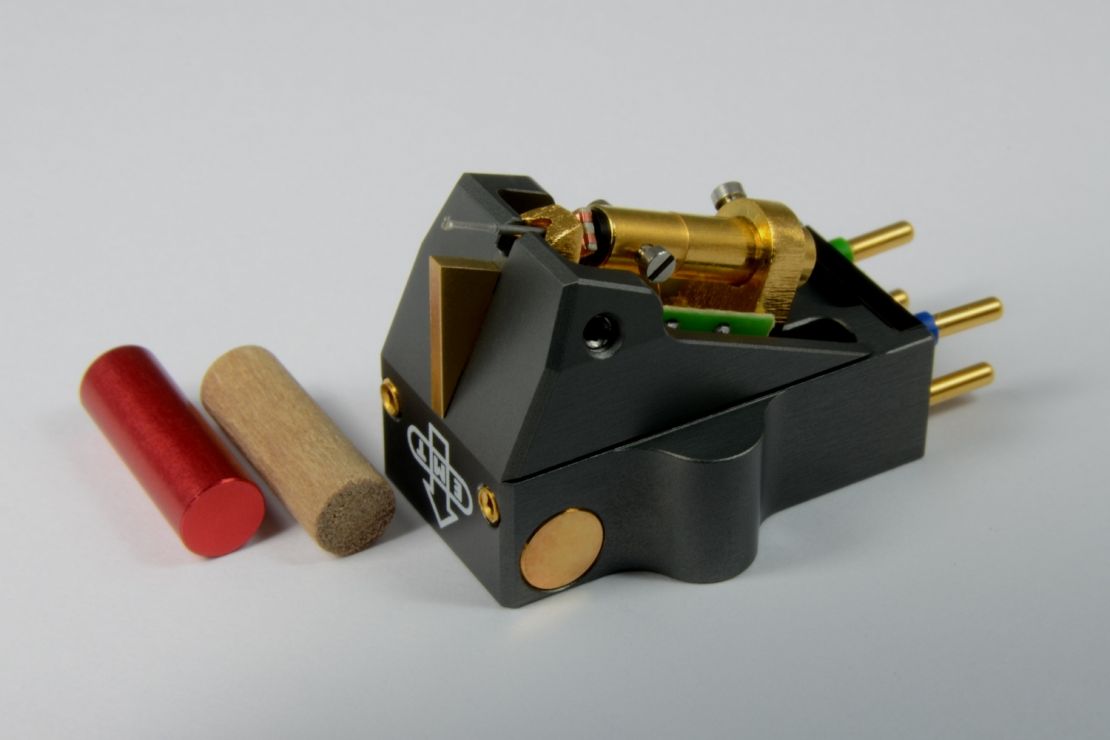

The JSD VM is the only cartridge that allows the user to tune the resonance behaviour according the tonearm specification and personal preference. It comes with three inlay bolts made of different materials.

All EMT reference-line cartridges feature a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.

• Diamond: MF HP
• Cantilever: Sapphire
• Transducer: MC Stereo
• Magnet: AlNiCo, gold-plated
• Body: variable mass, graphite anodized
• Connection: 1/2" – 4pin
• Vertical Tracking Angle: 23°
• Weight: 10…12g
• Tracking force: 2,4g
• Output voltage: 1.05mV @ 5cm/s
• Compliance: 12µm/mN
• Frequency response: 20 - 30‘000Hz
• Impedance: 2x 24Ω
• Recommended load: 200 - 300Ω
