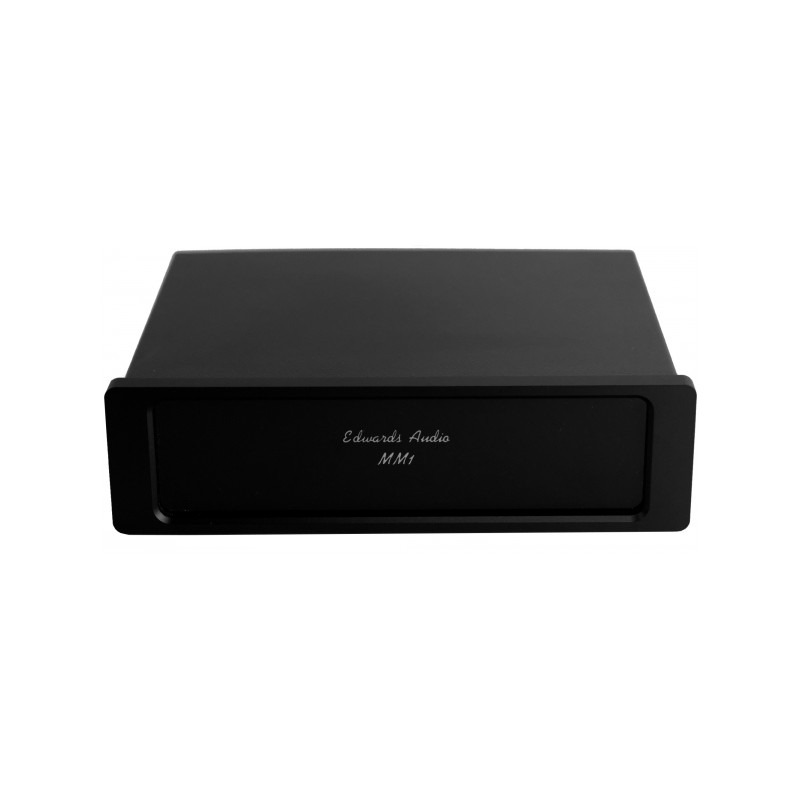

Edwards Audio MM1 Mk2 Phono Stage - Black - Ex Demonstration
The Edwards Audio MC1 Mk2 Phono Stage is our entry level moving coil and moving magnet RIAA phono stage, though we venture to suggest that it is not entry level in performance terms. It is unique at the price, with its fully RoHS compliant, gold plated, custom made, double sided PCBs, natural anodised extruded aluminium case and high quality internal parts like its use of 1% thin film melf resistors from Vishay plus Panasonic low impedance PSU capacitors throughout. The RIAA. Equalisation accuracy is within 0.25dB across the audio band and signal to noise is low at -68dB ( ref 500uV input). With a full 110dB dynamic range.
Our psuedo balanced discrete input technology gives you the option to optimise grounding to reduce the possibility of Hum/noise. The circuit topology has a fully discrete input transconductance gain stage followed by our unique op-amp based bass active treble passive RIAA filter which is followed by a totally buffered output section with a very low output impedance. This helps to reduce cable effects and improve output current and drive. It will easily drive a 600 Ohm load! It features standard gain for both MM at 40dB and MC adding an additional 23dB, these were chosen so that the MC1 can be used with the majority of normal pre-amps. If you need adjustable MM loading OR extra gain and special loading for High output MC then why not look at our MC1 PLUS version
Attention to detail also extends to the custom made plug top power supply, which with its use of a split rail design benefits from using + and – DC power outputs for better rejection of RF noise. It also uses a gold plated custom made PCB with high quality diodes and optimised snubber caps. This is no normal ‘off the shelf’ PSU as used by our competition…
Specifications:
- Max Input: 83mV
- Nominal Input: 5mV
- Gain: 42dB
- THD Distortion: <0.008% 1kHz
- Signal to noise: -83db A – weighted/ref 5mV
- RIAA: within 0.25dB
- Stereo separation better than: 75dB – 20-20kHz
- Input Loading MM: 47K 120pF 100Ohms 10nF
- Input Loading MC: 100Ohms 10nF
- Output impedance: 10Ohms
- Nominal output: 185.5mV
- Max output level: 10.3V RMS depending upon input
- Dimensions WxHxL: 114.5mm x 47.5mm x 89mm
- Weight: 0.5kg
- Power consumption (Max): 2.5W
