Stax SRM-D10 Battery Powered Energiser / DAC
Zoom  Zoom
Stax SRM-D10 Battery Powered Energiser / DACStax SRM-D10 Battery Powered Energiser / DACStax SRM-D10 Battery Powered Energiser / DACStax SRM-D10 Battery Powered Energiser / DAC

Stax SRM-D10 Battery Powered Energiser / DAC

£662.50 Exc. VAT |

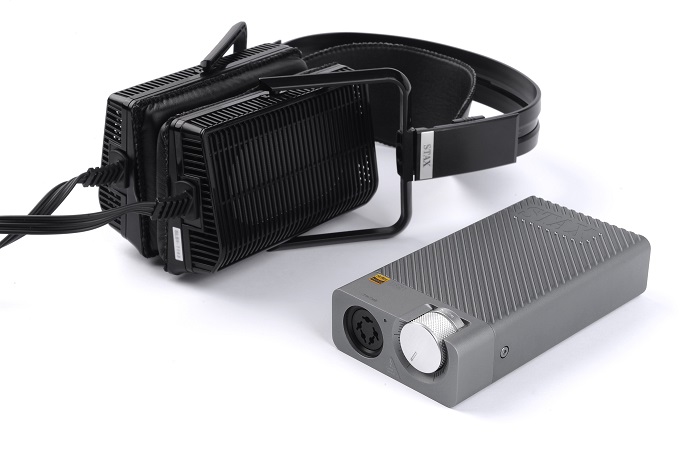

STAX SRM-D10 Battery-Powered Electrostatic Headphone Amp/DAC

STAX introduce the SRM-D10, the world’s first compact DAC / electrostatic amp unit. High-performance DAC for PC / Mac and variety of digital audio sources, from the desktop part of the amplifier can be adapted STAX mainstream electrostatic earspeakers. Now you can take the SRM-D10 to your home, office, or out door and enjoy the superb sound from STAX anytime, and anywhere you go.

State-of- the-heart

On the digital conversion side, Stax chose to use the ESS ES9018 DAC. Renowned for its superb sound quality, the ES9018 is then fed to a TI OPA1642 ultra-low distortion op amp to ensure the delicate bitstream remains unaltered.

Stax also has a world first

The SRM-D10 uses an Astronautic level high voltage amplifier to provide the drive and high voltage necessary for the electrostatic diaphragm. This high voltage amplifier is based around a chip from a company called Apex. Apex manufacturer the highest quality parts for the aerospace and medical industries. The Apex chip used in the SRM-D10 is the same as that used in the Apache helicopter. This chip together with the new output stage developed for the SRM-D10 is the most advance Stax has ever made for any energiser.

Selected components

Audiophile grade components complete the output stage, ensuring the SRM-D10 drives any Stax Earspeaker to its full potential. On the rear of the SRM-D10 a switch is provided to select either digital input or the analog input.

Separate power supply

A separate power supply provides the necessary voltage for re-charging the Lithium Ion battery in the SRM-D10. During use, the SRM-D10 will give 5 hours use on the analog input and 4 hours on the digital input.

Enjoy incredible high-quality audio playback wherever you are

Whether you want a portable high-resolution system for your lounge, study or bedroom, or want to take your Stax system with you when you travel, Stax now makes it easier than ever to enjoy incredible high-quality audio playback through Stax electrostatic earspeakers* wherever you are.


  • Compact electrostatic headphone amp/DAC
  • Battery-powered, rechargeable Li-ion built-in battery pack
  • High-resoluton Digital-to-Analog converter, supports up to DSD128
  • User selectable line-in and USB DAC
  •  All-aluminum chassis

*headphones not included


  •     5-pin PRO bias Stax earspeaker output
  •     MicroUSB digital input,
  •     3.5mm analog input
  •     Supply voltage: DC 14V (charger included)
  •     Frequency response: 20Hz - 40KHz (+0dB,-3dB)
  •     Rated input level: 230mV (100V output)
  •     Harmonic distortion: <0.025% / 1KHz-10KHz
  •     Input impedance: 10 KΩ (analog input)
  •     Maximum output voltage: 200Vr.m.s / 100Hz-10KHz
  •     Power consumption: 6.4W (USB input) 5W (analog input)
  •     Recommended operating temperature: 0-35°C, <90% RH (No condensation)
  •     Dimensions: 75(W) X 32(H) X 141(D) mm
  •     Net weight: 450g
  •     Voltage: 100-240V/50-60HZ
