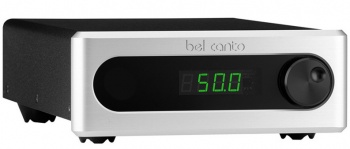

Bel Canto e.ONE REFLink Asynchronous USB Converter

Bel Canto e.ONE REFLink Asynchronous USB Converter

High performance Asynchronous ultra-low phase noise USB link connects your computer to your audio system with complete isolation from your computer source.

• Ultra-Low Phase-Noise Clocks
• Ultra low noise internal power
• Operate at 16- or 24-bits at 44.1, 48, 88.2, 96, 176.4 and 192kHz
• Proprietary 500MHz DSP Core
• MAC USB 2.0 compatibility and custom Windows USB 2.0 driver

Features

Asynchronous USB

With a true Asynchronous interface our Ultra Low Noise Femtosecond Master Clocks control the output jitter from the computer source. This provides the lowest noise digital source for the system DAC and unprecedented sonic transparency from any source file.

3 stage Galvanic Isolation
The REFLink ensures complete isolation USB born computer noise by the use of 3 stages of galvanic isolation. This insures that your audio DAC is never effected by computer based USB born noise keeping the entire dynamic range intact.

Hybrid Distributed Power Supply
Ensures that the Ultra Low Noise Master Clocks perform to their potential with power supply isolation and local low noise regulation right where it is needed.

Specifications

Specifications

Input: High Speed USB type-B receptacle
Output: Coaxial SPDIF on BNC 75Ω, Balanced AES on XLR 110Ω, LightLink ST Fiber
Dual Ultra-Low Phase-Noise Clocks: Jitter <70Femtoseconds RMS, 100Hz-1MHz
Supported sampling rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Supported word lengths: up to 24-bit

Compatibility

Native MAC USB 2.0 compatible on OSX 10.6 and later
Custom Windows USB 2.0 driver Win 7, Win 8, and XP
Driver appears as Bel Canto uLinkUSB2.0 select as default playback

General:

Power Usage On: 3W
Power Usage Off: 0W
Power Requirement: 120VAC/60Hz or 240VAC/50Hz set internally
Dimensions: 8.5” W x12.5” D x 3.5” H (216mm x 318mm x 88mm)
Weight: 14lbs (6.5kg)
