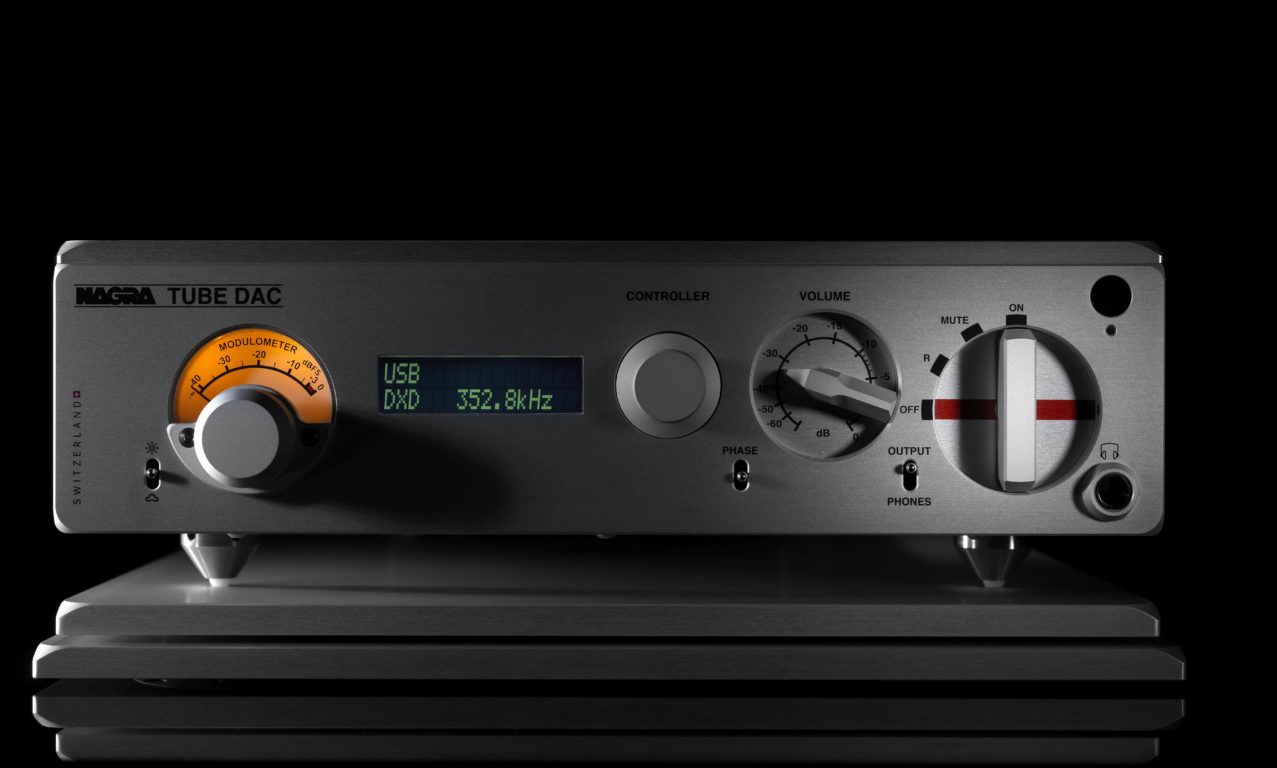

Nagra Tube DAC
Zoom  Zoom

Nagra Tube DAC

£18,500.00
£15,416.67 Exc. VAT |


|
Version:

Nagra Tube DAC

  • Stand-alone (needs 2 x DC power supplies), or as a package with PSU, Classic VFS, Spikes and DC Cables

​The Nagra TUBE DAC is a no-compromise D/A converter that can reproduce DSD 256 and 384 kHz PCM signals with an unparalleled natural rendition.

Following the path to high definition sound laid down by the world-acclaimed HD DAC, we wanted to offer the latest sampling frequencies and resolution. We took the opportunity of extending the HD DAC X project with a whole new digital interface and converter to update and upgrade the HD DAC.

The new digital core is built on the experience gained from the HD DAC. The design features an entirely new converter as well as a new USB interface. The result is highly impressive and also a major improvement in every format, even regular red-book CD through S/P Dif, for instance.

CONVERSION

The TUBE DAC is designed to convert a digital signal to analog with total integrity and without introducing the slightest impurity or coloration to the original sound. This objective has been totally achieved, and sound has never reached such a true level of definition.
The effort put into the design and exactitude of the Nagra TUBE DAC was exceptional from every perspective. Its circuits, which adopt the DSD 4x (Direct Stream Digital 256) run at the highest resolution available today, 256 times that of a standard CD and four times that of SACD.

ANALOG SECTION

The analog section was also the object of a no-holds-barred approach. Thanks to the quality of the signals supplied from the digital conversion circuits, the traditional steep slope filters have been totally eliminated. The consequence of this is the preservation of transients and harmonics, enabling the music to present an exceptionally natural sound. Some of the critical design elements include ultra-high-performance drivers, hand-wound transformers and a tube-driven output stage.

POWER SUPPLIES

There are 25 precision ultra-low-noise internal power supplies that drive the unit, giving each element its own independent and pure supply source. The Nagra TUBE DAC converter needs two external power supplies, one for the digital section and the other for the analog, keeping the two sections independently isolated. It should be paired up with the Nagra CLASSIC PSU unit to attain its ultimate performance although it is also compatible with the previous generation power supply, the Nagra MPS.

CONNECTIVITY

The TUBE DAC is equipped with extensive connection possibilities, allowing integration in all types of domestic and professional systems. It is particularly suited to computer environments thanks to its new generation audio USB input, through which it receives signals up to the DSD 256 format from a PC or MAC.

ELECTRONICS

Internal processing: 5.6 MHz / 6.2 MHz 72 bits
Compatible digital formats: PCM 24 bits up to 384 kHz, DXD, DSD x 2
Frequency response: 10Hz to 110 kHz (+0.1 / -3 dB)
Crosstalk: > 100 dB
Interchannel phase: <0.5° at 20 kHz
Noise level: -128 dBr (linear)
Distortion: < 0.02% (at -20dB FS)



CONNECTIONS

Inputs: 2 x S/PDIF, 1 AES/EBU, 1 Optical, 1 Audio USB (mode 2)
Analog outputs: 1 stereo on RCA connectors, 1 stereo XLR (Unbalanced)



GENERAL

Dimensions: 280 x 350 x 76mm (12 x 13.7 x 3 inches)
Weight: 3.8 Kg (6.6 lbs)
Power consumption: On 15 W, Standby <1W
