Matrix Audio X/PDIF 2 USB to S/PDIF Converter

Zoom

Matrix Audio X/PDIF 2 USB to S/PDIF Converter

(2 Reviews)

£399.95

£333.29 Exc. VAT |

Finish:

Description
Specifications
Customer Reviews (2)

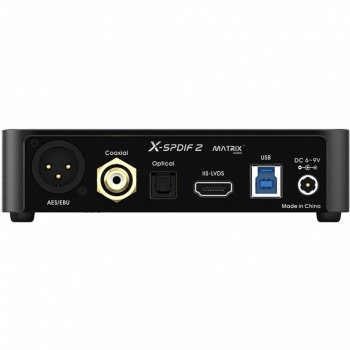

Matrix Audio X/PDIF 2 USB to S/PDIF Converter

Onto a Higher Level

The newly designed USB Audio Class 2.0 asynchronous digital interface X-SPDIF 2, inherited the excellent quality from its last generation. You can connect the digital audio stream receive devices through the newly added IIS port, to avoid the loss caused by digital signal protocol conversion. X-SPDIF 2 built-in high-quality femtosecond clock and FPGA processing unit, it can playback up to 32bit/768kHz PCM audio stream and 1bit/22.4MHz DSD audio stream.

Supported Sample Rate

Optical/Coaxial/AES:
PCM 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz
DSD64(DoP)

IS LVDS:
PCM 16-32Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz
DSD64/128/256/(DoP) DSD64/128/256/512(Native)
NOTE: Please see the X-SPDIF 2 user manual for the IIS LVDS definition.

System Support:
Windows7/8/8.1/10 system needs to install the supplied driver.
Mac OS X10.6.4 or above without installing the driver.
Most Android devices can be used via OTG cable.
The iOS devices can be used via Lightning to USB Camera Kit.

Power

Power Supply Specs:
USB bus power supply: 5V/500mA
External power supply: DC 6~9V，≥800mA
Power supply port: outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)
NOTE: Do not connect to the power supply with a voltage above 9V, or will cause damage.It will auto disconnect USB bus supply after connected to the external power supply. It needs to connect to the external power supply when using mobile phone or pad which USB port with low current output.

Others:
Dimension: 133mm×142mm×38mm(L×W×H, including protruding parts)
Weight: 1.1KG

Accessory:
USB Cable
USB Cable ×1
