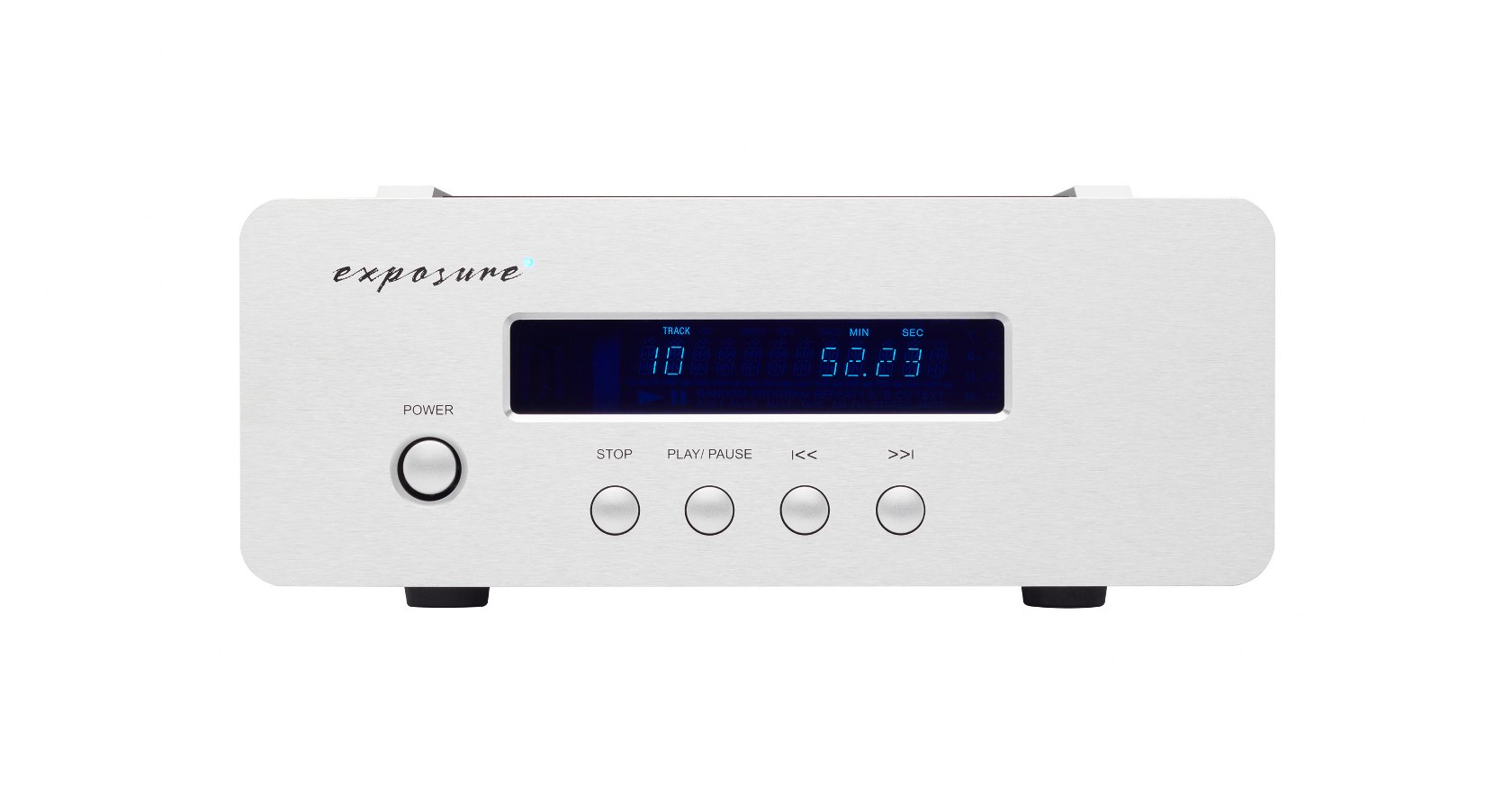

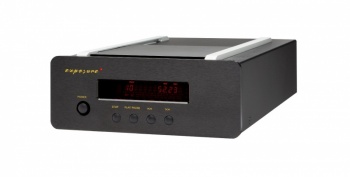

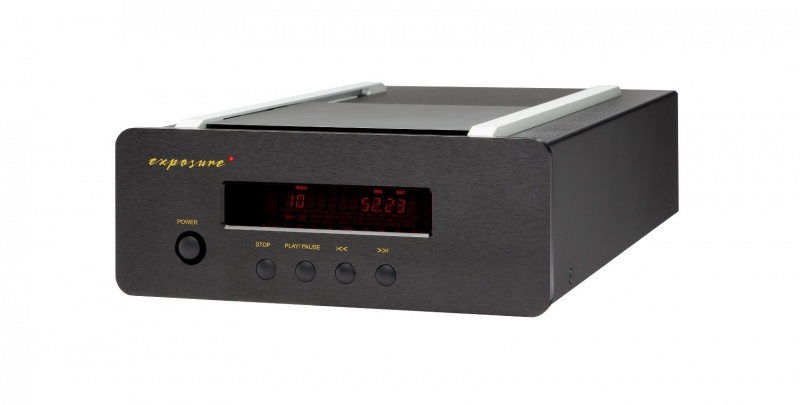

Exposure XM CD Player

Exposure XM CD Player

In 2017, Exposure Electronics launched the ‘XM’ series of hi-fi components, growing to include a phono stage, integrated amplifier, preamplifier, mono power amps and a headphone amp. Allegedly thanks to customer request, the XM line-up now features a CD player.

Features:

• PCM 1716 24 bit DAC fitted to provide very high resolution
• Optimised as a transport using a top loading mechanism
• CD display can be turned off using the remote for improved
• sound quality
• Highly optimised audio output circuitry with multiple stages
• of supply regulation
• Large toroidal power transformer with separate windings for
• CD transport mechanism and audio stages
• Employment of a high-stability crystal clock reference
• and dedicated, power supply regulator for the transport and
• audio stages to ensure low jitter performance
• High quality double-sided PCBs for optimum layout
• and screening
• All-aluminium casework and extruded front panel to control
• resonance and stray electro-magnetic fields
• Remote control
• Three year guarantee
• Available in black or titanium

Outputs

• Output Level : 2V RMS
• Frequency Response : 20Hz - 20KHz ± 0.25dB
• Total Harmonic Distortion : <0.008%, 20Hz - 20KHz, 0dBFs
• Signal to Noise Ratio : >100dB, A weighted

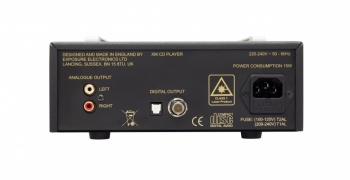

• Digital Outputs : SP/DIF, Coaxial and “Toslink” Optical

General Specifications

• Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
• Power Consumption : <15W
• Dimensions (WxHxD) : 218mm x 94mm x 348mm
• Net Weight (unpacked) : 4kg
• Gross Weight (packed) : 5kg
