Mark Levinson No 5101 Network Streaming SACD Player
Zoom  Zoom

Mark Levinson No 5101 Network Streaming SACD Player

UK SALES ONLY


£6,099.00
£5,082.50 Exc. VAT |  |

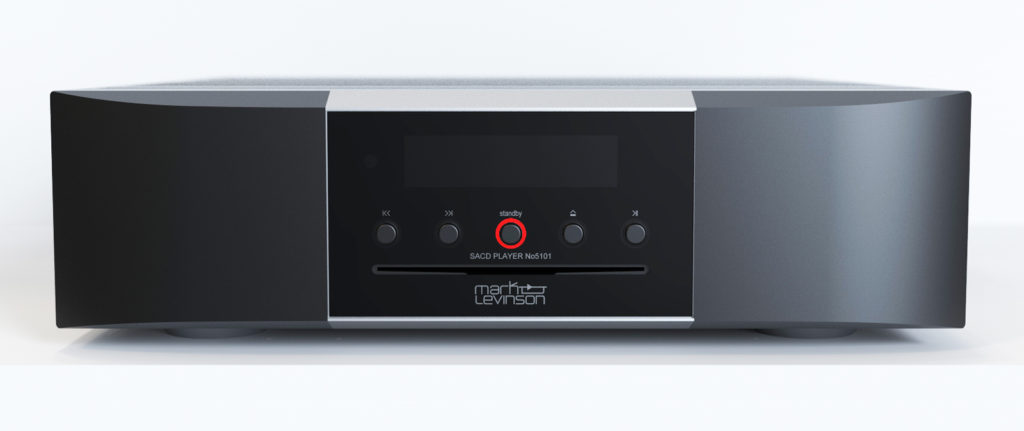

Mark Levinson No 5101 Network Streaming SACD Player

Coming Q4 2019, available for Pre Order now!

With a new industrial design to match the 5000 series amplifiers, the No. 5101 is hand crafted in the USA along with all Mark Levinson products.

Feature set - The No. 5101 supports a host of formats including FLAC, WAV, AIFF, OGG, MP3, AAC and WMA. Playback wise the No. 5101 supports SACD, CD-A, CD-R and CD-RW. The No. 5101 can stream from NAS drives as well as DLNA and UPnP devices connected to the same network via Ethernet or WIFI. It can also navigate and playback audio files from a USB flash drive connected to the USB type A input. Additionally, the No. 5101 has 1x coaxial and 1x S/PDIF digital input and can serve as a premium stand-alone DAC for digital sources. The No. 5101 offers flexible control with system integration and communication ports include IP (Ethernet), RS- 232, IR input, and 12V trigger input. An elegant 5000 Series custom aluminium remote handset is included. In addition, control drivers are available for major control systems.

Uncompromising performance – The No. 5101 is fitted with the Mark Levinson proprietary Precision Link II DAC. Internally attention to detail is second to none with the No. 5101’s power supply, transformer and control PCBA’s that are all encased in a steel cage shield so as to completely isolate from the digital and analogue audio signal path. The robust slot-loading transport is suspended on steel standoffs floating on a PVC and styrene-butadiene rubber sandwich and shielded with a steel cover. As with all Mark Levinson components, robust materials and lavish finishes have become hallmarks the company's quality. The 1” think front panels are bead blasted, black anodized and machine contoured to flow seamlessly into the sleek glass display, which itself is recessed into a bead-blasted and clear-anodized aluminium bezel.

Control - The No. 5101 offers flexible control with system integration and communication ports including IP (Ethernet), RS- 232, IR input and 12V trigger input. An elegant 5000 Series custom aluminium remote handset is supplied. In addition to this, drivers at launch will be available for major control systems.

DAC OUTPUT VOLTAGE @ FULL SCALE (0DBFS)

3.7VRMS

DAC FREQUENCY RESPONSE

20Hz to 20kHz, +0 / ¬–0.2dB

DAC THD, FULL SCALE (0DBFS)

<0.0001% @ 1kHz, <0.0003% @ 20kHz

DAC SNR (REFERRED TO 3.7VRMS / 0DBFS OUTPUT)

>120dB (A-weighted)

PCM SAMPLE RATES/BIT DEPTH

32, 44.1, 48, 88.2, 96, 176.4, or 192kHz; up to 32 bits

DSD

Native or DoP (DSD over PCM), single- and double-speed (2.8 and 5.6MHz)

PROCESSOR

1GHz ARM Cortex A8 Sitara

MEMORY

4GB RAM and 4GB Flash

DIGITAL INPUTS

1 balanced (XLR); 2 coaxial (RCA); 2 optical (Toslink); 1 USB-B asynchronous

MASS STORAGE CONNECTORS

2 USB type A

ANALOG OUTPUTS

1 balanced (XLR); 1 pair single-ended (RCA), 1 headphone (¼”, 6.3mm TS)

DIGITAL OUTPUTS

1 balanced (XLR); 1 single-ended (RCA), 1 optical (Toslink)

CONTROL CONNECTORS

Ethernet (RJ45), RS-232 (RJ12), Trigger In and Out, IR In, USB-A, Mini USB

NETWORK

Ethernet, Wi-Fi 802.11b/g/n

MAINS VOLTAGE

100VAC, 115VAC, or 230VAC, factory set

SOFTWARE UPDATE

Network, USB

CONTROL APPS

iOS, Android, web browser
