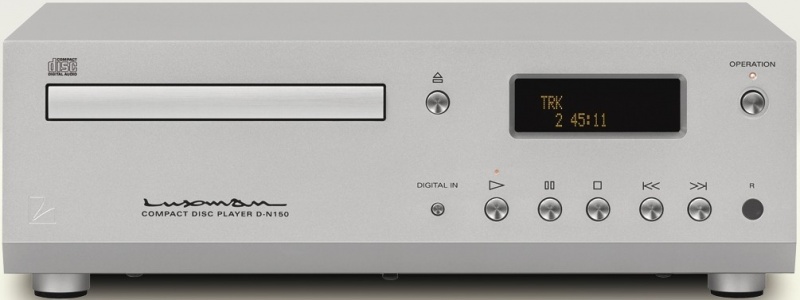

Luxman D-N150 Player with DAC
Zoom  Zoom
Luxman D-N150 Player with DACLuxman D-N150 Player with DACLuxman D-N150 Player with DAC

Luxman D-N150 Player with DAC

£2,700.00
£2,250.00 Exc. VAT |  |

Luxman D-N150 Player with DAC

Beautifully compact model delivering exceptional playback of compact disc and high-res audio files with USB, coax and optical inputs. Matching matching SQ-N150 amplifier also available.

Luxman D-N150 CD Player with DAC caters to music-lovers who want to play compact disc and high-res audio sources in exceptional quality. From the NeoClassico II range, D-N150 fuses audiophile design with excellent flexibility through a 5mm thick aluminum chassis, internal parts chosen via extensive listening tests plus coax, optical and USB digital inputs for converting hi-res audio to unconstrained analogue sound.

CD transport and DAC

D-N150 inherits the CD transport from Luxman’s highly regarded D-380. Carefully tested parts include the power transformer, filtering capacitors, Schottky barrier diodes and proprietary OFC (Oxygen Free Copper) wire. Texas Instruments PCM5102A digital-to-analog converter facilitates a signal-to-noise ratio of 110dB presenting music with near absolute silence in ambience.

Inputs with Bulk Pet transfer

You can exploit the digital-to-analog converter integrated into the D-N150 to replicate external sources. Coaxial and optical inputs accept S/PDIF signals up to 192 kHz/24 bits while the USB input supports personal computer PCM signals up to 192 kHz/32 bits.

D-N150 is the first Luxman unit to accommodate Bulk Pet transmission on top of conventional, isochronous USB transfer to gain excellent sound by lowering the processing load on the DAC. Optical output lets you use D-N150 as a sole DAC hub.

High-grade remote control

The high-grade aluminum remote controls not only the D-N150 digital player but also volume on the matching SQ-N150 amplifier.

Understated design

D-N150 has a compact “A4” footprint excluding protruding parts. The 5mm thick aluminum chassis implements an elegant, blasted white finish with hairline finished controls provide a subtle contrast between white and silver.

Tech Specs

- Disc: 2 channel CD, CD-R
- USB Sampling: 32-192kHz (16-32bit)
- Coax/Opt Sample: 32-192kHz (16-24bit)
- Analog output: 2.1V/300Ω
- CD Freq response: 5-20k Hz (0/-0.5dB)
- COAX/OPT/USB Freq: 5-50k Hz (0/-3dB)
- Total harmonic distortion: 0.005%
- S/N ratio (IHF-A): 110dB
- Power supply: 230/115V~ (50/60Hz)
- Power consumption: 13W
- Remote control: RD-27 included
- Dimensions (WHD): 297 x 98 x 222mm
- Net weight: 5.0kg

Specifications

Technical Specifications:-
Format 2-channel SACD, CD
Supported sampling frequencies USB input (PCM): 32k, 44.1k, 48k, 88.2k 96k, 176.4k, 192k 352.8k, 384lHz (16, 24, 32bits)
Analog output voltage / impedance 2.5v/300Ω (unbalanced), 600Ω (balanced)
Frequency Response CD 5Hz to 20kHz (+0, -0.5dB) CD 5Hz to 50kHz (+0, -3.0dB) USB 2Hz to 50kHz (+0, -3.0dB)
Total harmonic distortion CD 0.0015%, SACD 0.0011%, USB 0.0009%
S/N ratio (IHF-A) CD 123dB, SACD 106dB, USB 123dB

Disk drive mechanism LxDTM (with dust-proof shutter)
D/A converter Burr-Brown-made PCM 1792A (monaural mode) x 2
Output amplifier circuit Fully balanced discrete ODNF version 4.0
Power consuption 36W 1W (at standby)
Dimensions 400(w) x 154 (h) x 413 (d) front side knob of 2mm and rear side terminal of 11m included in depth
Net weight 22.5kg
Accessories - Remote Control (RD-21), Power Cable, Install Software CD
