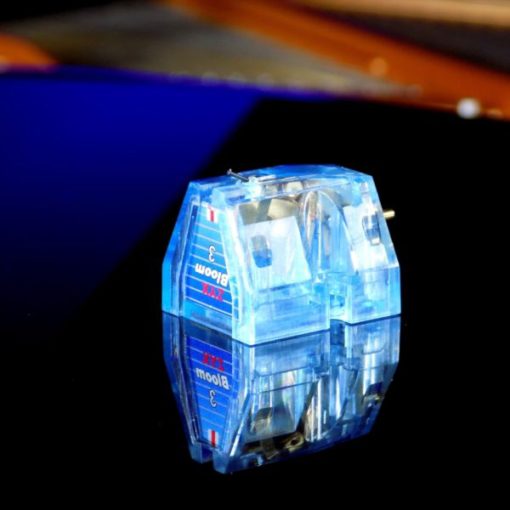

ZYX R50 Bloom 3 Cartridge
Available in 2 Outputs
Low 0.24mV
High 0.48mV
The all new ZYX R-50 Bloom 3 replaces the older R-50 Bloom MC cartridge. Amongst the changes and new specifications are a black aluminium cantilever and something which ZYX call their new Super High speed reproduction engine (magnetic circuit), specially processed to null magnetic resistance within magnetic gap, and enables high speed power generation against signals over entire bandwidth straightly without time delay.
The ZYX R50 Bloom 3 may be the entry level ZYX, but its performance is anything but entry level. This amazing phono cartridge majors on musicality. It is neutral but has genuine bass authority with loads of low level texture and information and it throws a big expansive soundstage full of detail. It is also remarkably refined and smooth in its presentation, especially at higher frequencies where many others highlight their deficiencies. Still the class leading MC cartridge at its price point? We think so!

Technical Data
Type Moving Coil (Dynamic)
REAL STEREO Generator System
Output Voltage 0.24mV (H= 0.48mV) [3.54cm/sec., 1kHz] or
0.34mV (H=0.68mV) [5.0cm/sec., 1kHz]
Frequency response 10Hz ~ 40kHz
+/-1dB 20Hz ~ 20kHz
Channel separation > 25 dB (1kHz)
Channel balance < 0.5dB [1kHz]
Recommended tracking force 2.0gm [20 ~ 25 degrees Celsius)
Tracking force range 1.8gm ~ 2.5gm
Compliance horizontal (vertical) 15 x 10-6 cm/dyne (12 x 10-6 cm/dyne)
Trackability > 80um/1.8gm
Internal impedance 4 ohms (H = 8 ohms)
Recommended load impedance > 100 ohms
Cantilever material ALMg5 tube 0.38/ 0.3mm dia.
Stylus Line-Contact Solid Diamond
Contact radius 6um x 35um
Output terminals 1.25mm dia. gold plated [EIA}
Net weight 5.0gm
