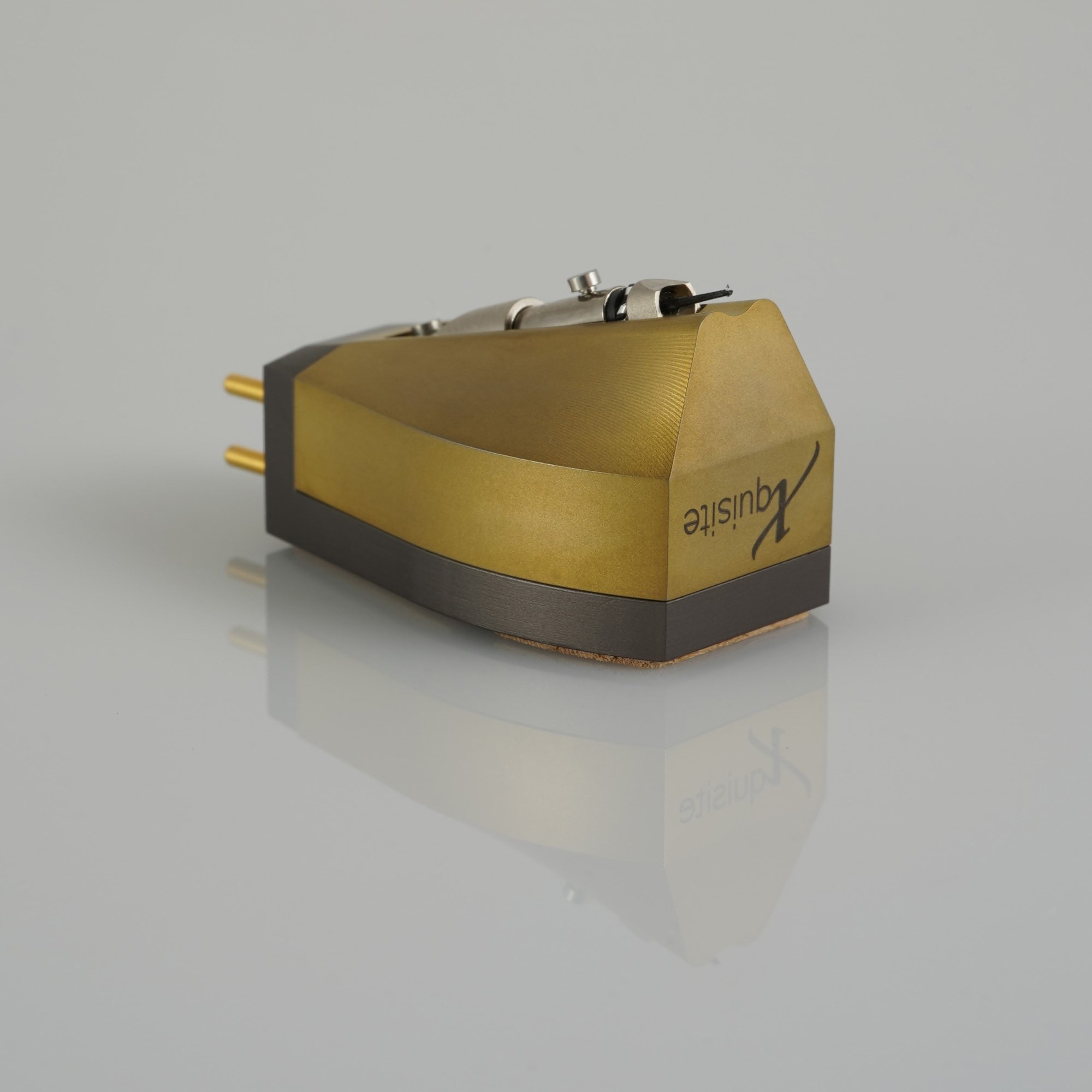

X-quisite ST MC Cartridge
Zoom  Zoom

X-quisite ST MC Cartridge

£10,450.00
£8,708.33 Exc. VAT |


|

X-quisite ST MC Cartridge

All X-quisite cartridges take advantage of the patented monobloc-ceramic transducer technology, which ensures supreme detail resolution and at the same time extremely natural sound. The ST (Silver/Titanium) model features a pure silver coil which has been carefully matched with an advanced titanium-aluminium-wood sandwich-body to achieve most delightful sound characteristics. Each X-quisite cartridge is handmade piece by piece and calibrated by Micha Huber personally.


Cantilever and coil body: Monobloc ceramic unit, patented design
Coil: Pure silver 4N
Diamond shape: Micro ridge
Magnet unit: Neodym-Armco, reduced eddy current loss
Body: Titanium-aluminium-wood
Connection: 1/2" – 4pin, gold plated
Vertical Tracking Angle: 20°
Weight: 16,6g
Tracking force: 1,9…2,1g
Output voltage: 0,3mV @ 5cm/s
Compliance: 12µm/mN
Bandwidth: 20 - 30‘000Hz
FIM disortion: max. 0,2%
Impedance: 2x 20Ω
Recommended load: 400 - 800Ω

Specification

Frequency response: 20Hz-20kHz +/-3dB

Sensitivity (output): 5mV @ 1kHz ref 5cm/sec

Tracking force: 1.5-2.0g

Cartridge weight: 5g
