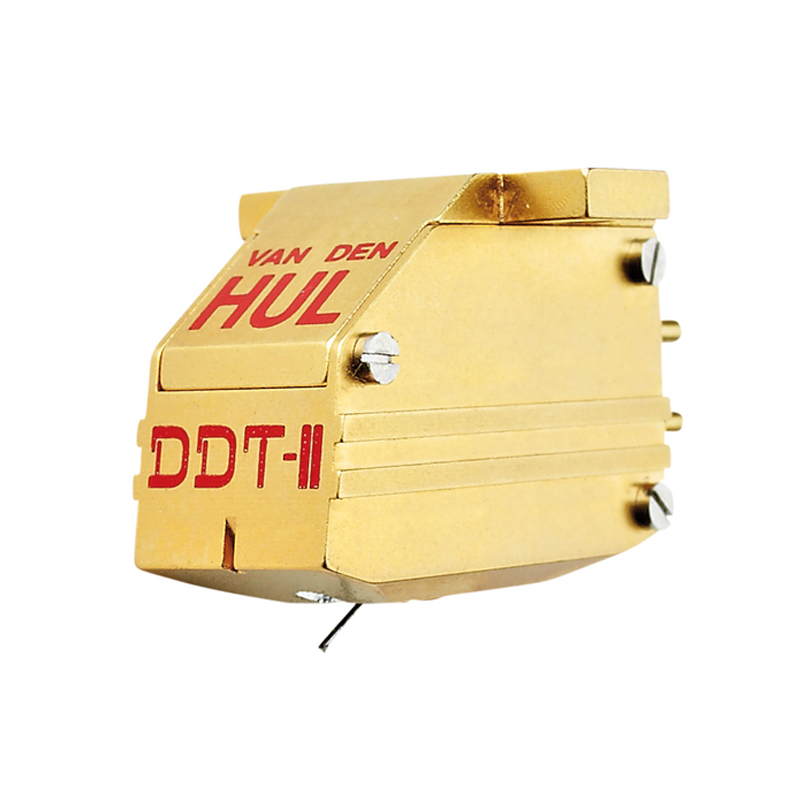

Van den Hul DDT-II Special Moving Magnet Cartridge
Zoom  Zoom

Van den Hul DDT-II Special Moving Magnet Cartridge

£832.50 Exc. VAT |



Van den Hul DDT-II Special Moving Coil Cartridge

A custom handbuilt moving coil cartridge with VDH-type 1 tip, boron cantilever, matched crystal silver-wire coils and 0.65 mV/channel.

  • The designation “Special” in this cartridge’s name indicates important improvements over its previous version:
  • The cartridge is equipped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.
  • The cartridge’s name DDT stands for Depth, Detail and Timbre.

Technical data

stylus shape VDH - I
stylus radii 3 x 85 Micron
frequency range 5 - 50.000 Hz
tracking force 13.5 - 15.0 mN
static compliance 28 Micron/mN
tracking ability 70 - 80 Micron
output voltage 0.65 mV RMS
channel unbalance < 0.75 dB
channel separation > 35 / > 30 dB
stylus tip mass 0.35 Milligram
system weight 8.2 Gram
vertical tracking angle 22 Degrees
load impedance 200 Ohm
eff tone arm mass 8 - 12 Gram
moving coil resistance 9 Ohm +/- 10%
