Soundsmith SG-200 Strain Gauge Cartridge System
Zoom  Zoom
Soundsmith SG-200 Strain Gauge Cartridge SystemSoundsmith SG-200 Strain Gauge Cartridge SystemSoundsmith SG-200 Strain Gauge Cartridge System

Soundsmith SG-200 Strain Gauge Cartridge System

£6,674.99
£5,562.49 Exc. VAT |


|
Version:
Choice of Box:

Soundsmith SG-200 Strain Gauge Cartridge System

Our basic Strain Gauge system features fixed level line outputs suited for line level inputs on your system preamplifier. The supplied SG cartridge comes with the SG-5 stylus assembly as standard, however, you may purchase the system with the SG-6 stylus for a surcharge of £100 at the time of ordering. Like all SG preamps, the SG-200 features an auto-mute circuit that protects your system and speakers from transients due to an accidentally dropped styli. The front panel defeatable auto-mute also allows quiet introductions to playing or recording your vinyl.

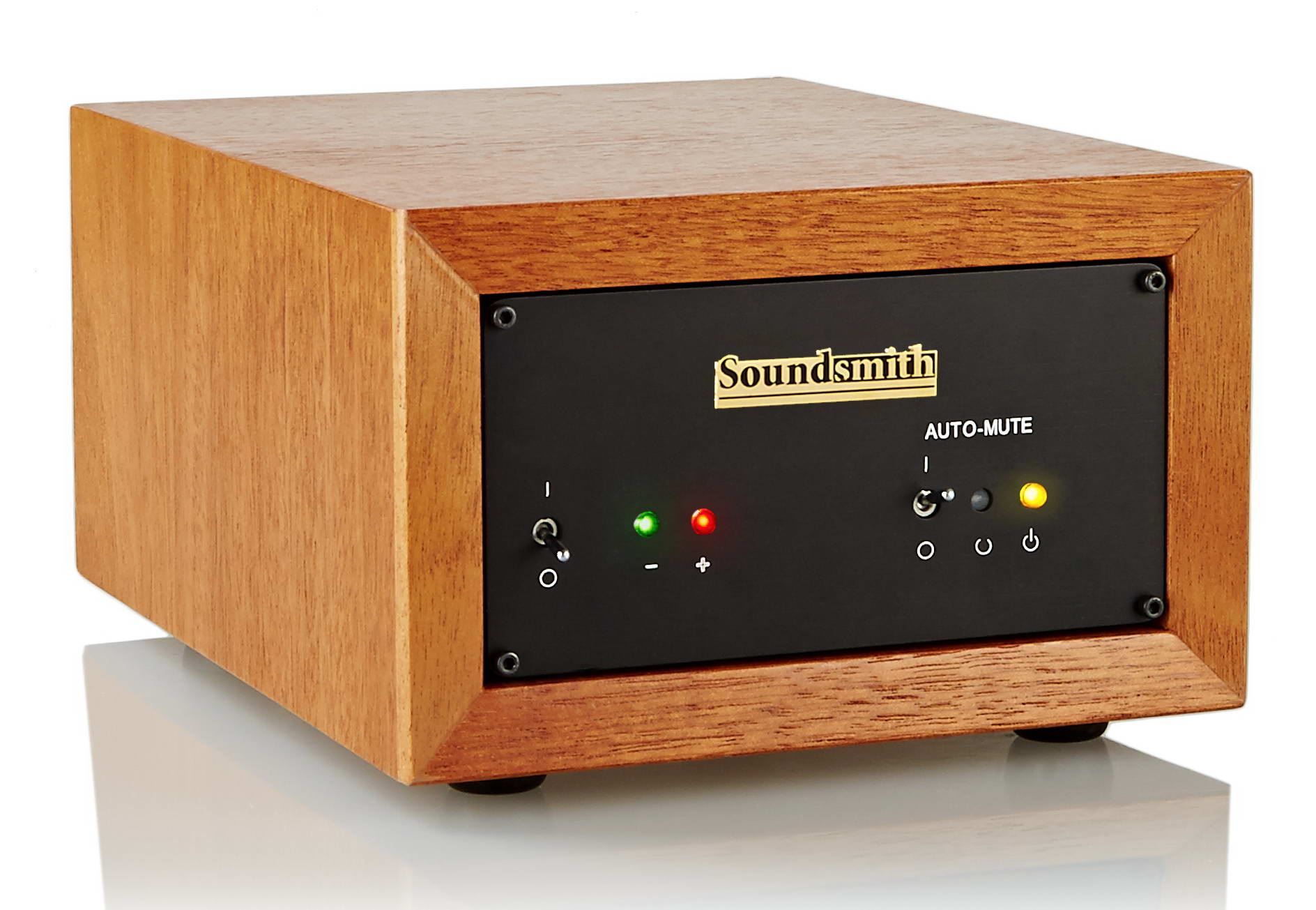

All SG systems feature user replaceable styli, however, due to the nature of the cartridge design, styli are individually matched to each cartridge. If additional styli are desired, it is highly advisable to order them with your system order. The SG-200 is supplied in a black anodized case, however, custom wooden cases in black or mahogany are also available as accessory items.

Specifications

Cartridge Type

Strain Gauge

Stylus Type

Conical Elliptical Shibata Contact Line O.C. Contact Line

Output

Specialty

Available As Dual Coil Mono

No

Additional Specifications

Power Supply Information:

All three models are powered by two identical external analog DC wall type power supplies - 24 VDC @ 500 Milliamps. Two are supplied and are required for each SG preamp system. The use of external power supplies helps keep the noise floor extremely low, and allows compliance with power regulations for varied countries.

The SG-230 comes with two supplies and our WWE filter device, which connects in-line with the cables from the two wall supplies. The WWE ensures that the DC power being supplied to the SG-230 is extremely clean and noise free in terms of ripple current and RF noise coming from the AC wall supply in any environment.

Replacement Styli: These are tuned for each cartridge and system. If you have one good stylus, we can build others to match by having the stylus and cartridge only. If you do not have one good stylus, we will need both the cartridge and electronics to build new styli for you. Styli can be easily moved in and out of the cartridge body by the owner.

    width height depth   weight
Product Name inches cm. inches cm. inches cm.   lbs. kg.
SG-200   6.250 15.875 3.500 8.890 9.750 24.765   3.00 1.36
IN SHIPPING BOX 10.000 25.400 6.000 15.240 16.250 41.275   6.92 3.14
SG- 200 (wood case) 7.625 19.368 5.000 12.700 10.625 26.988   7.00 3.18
IN SHIPPING BOX 16.000 40.640 16.000 40.640 16.000 40.640   15.00 6.80
SG-210   6.250 15.875 3.500 8.890 10.000 25.400   3.00 1.36
IN SHIPPING BOX 10.000 25.400 6.000 15.240 16.250 41.275   6.92 3.14
SG-210 (wood case) 7.625 19.368 5.000 12.700 10.875 27.623   7.50 3.40
IN SHIPPING BOX 16.000 40.640 16.000 40.640 16.000 40.640   15.50 7.03
SG-230   12.750 32.385 3.625 9.208 10.000 25.400   7.00 3.18
SG-230 (wood case) 14.250 36.195 5.500 13.970 10.750 27.305   14.00 6.35
IN SHIPPING BOX 24.000 60.960 12.000 30.480 20.000 50.800   24.00 10.89
