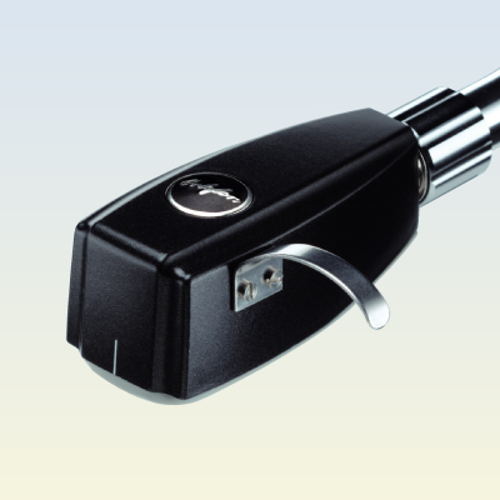

Ortofon Mono GM MKII Moving Coil Cartridge

£665.00

£554.17 Exc. VAT |

Please note this cartridge is a special order item. Please contact us for estimated delivery times.

Description
Customer Reviews (0)

Ortofon Mono GM MKII Moving Coil MONO Cartridge

Please note this cartridge is a special order item. Please contact us for estimated delivery times.

The SPU Mono GM MKII is a high output Moving Coil cartridge a with a spherical stylus profile, for the playback of early 25µm mono recordings.

The SPU Mono GM MKII provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.

Technical Data:

Output Voltage At 1000 Hz, 5cm/sec:	3 mV
Frequency Range (At - 3dB):	20 - 20.000Hz
Frequency Response:	20 - 15.000Hz + 2 / - 1 dB
Recommended Tracking Ability at 315Hz:	> 70 µm
Compliance, Dynamic, Lateral:	12 µm/mN
Stylus Type:	Spherical
Stylus Tip Radius:	R 25 µm
Tracking Force Range:	3,0-5,0 g (30-50 mN)
Tracking Force, Recommended:	3,5 g (35 mN)
Tracking Angle:	20°
Internal Impedance, DC Resistance:	100 Ohm
Recommended Load Impedance:	47 kOhm
Cartridge Body Material:	Grinded Wood
Coilwire Material:	High Purity Copper (OFC)
Cartridge Colour:	Black
Cartridge Weight:	30 g
