Audio Technica AT33EV Moving Coil Cartridge

(1 Review)

£429.00

£357.50 Exc. VAT |

Description
Customer Reviews (1)

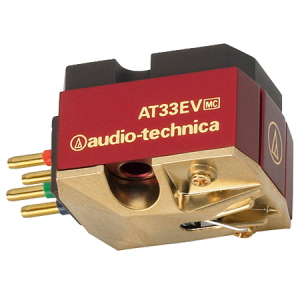

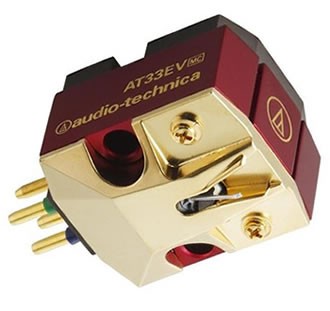

Audio-Technica AT-33 EV Moving Coil Cartridge

The Audio-Technica AT33EV cartridge supercedes the AT33ANV, a limited edition and highly rated model launched in 2006

The A33EV isa ½ inch, standard mount 0.3 x 0.7 mm elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.

Elliptical stylus chip and durable duralumin tapered pipe cantilever.
10O mid impedance specifications.
Dramatically increased magnetism with neodymium magnets and PCOCC as the coil.
High separation, wide-response dual moving coil.
VC Mold eliminates unnecessary vibrations.
"Hanenite" anti-vibration rubber eliminates unwanted vibrations.

Specifications:

Type: MC-type
Playback frequency range: 15-50,000Hz
Output voltage: 0.3mV (1kHz and 3.54cm/sec.)
Channel separation: 30dB (1kHz)
Output balance: 0.5dB (1kHz)
Stylus pressure: 1.8-2.2g (2.0g standard)
Coil impedance: 10O (1kHz)
DC resistance: 10O
Load resistance: More than 100O (when head amp connected)
Coil inductance: 22µH (1kHz)
Static compliance: 40×10-6cm/dyne
Dynamic compliance: 10×10-6cm/dyne (100Hz)
Stylus needle shape: Oval (0.3×0.7mil)
Cantilever: Duralumin tapered pipe
Vertical tracking angle: 23°
Dimensions: H16×W16.6×D26.5mm
Weight: 6.9g
Accessories: Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1

Average Rating (1 Review):

Write a Review and share your opinions!

Rating:

Excellent Cartridge

11 November 2020 | Michael

Massive upgrade over my old Denon DL-110 (which is an excellent cartridge). I'm hearing more of everything, everything is clearer and also surface noise is much lower.

Was this helpful to you? Yes / No

6 of 6 people found this review helpful.
