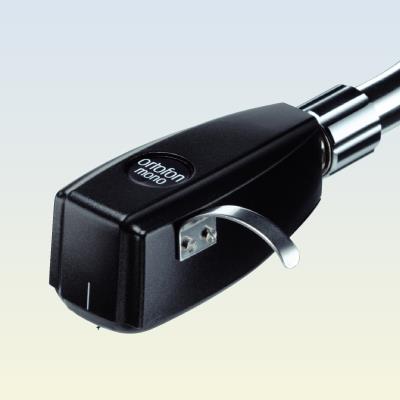

Ortofon Mono G MKII Moving Coil Cartridge
Zoom  Zoom

Ortofon Mono G MKII Moving Coil Cartridge

£725.00
£604.17 Exc. VAT |


|

Ortofon Mono G MKII Moving Coil Cartridge

SPUs

The SPU Mono G MKII is a high output Moving Coil cartridge a with a spherical stylus profile, for the playback of early 25µm mono recordings.

The SPU Mono G MKII provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.

Key Features:
  • Created for playback of early 25 µm mono recordings
  • Remarkable level of sonic accuracy
  • High output negates the need for a moving coil transformer
  • High Purity Copper armature windings and terminal leads
  • Grinded wood and resin composite housing
  • Spherical stylus profile

Output Voltage at 1000 Hz, 5cm/sec: 3 mV
Frequency Response: 20Hz - 15kHz (+2/-1dB)
Recommended Tracking Ability at 315Hz: > 70 µm
Compliance, Dynamic, Lateral: 12 µm/mN
Stylus Type: Spherical
Stylus Tip Radius: R 25 µm
Tracking Force Range: 3.0 - 5.0g (30 - 50mN)
Tracking Force, Recommended: 4.0g (40mN)
Tracking Angle: 20°
Internal Impedance, DC Resistance: 100Ω
Recommended Load Impedance: 47kΩ
Cartridge Body Material: Ground Wood & Resin Composite
Coilwire Material: High Purity Copper (OFC)
Cartridge Colour: Matte Black
Cartridge Weight: 30g
