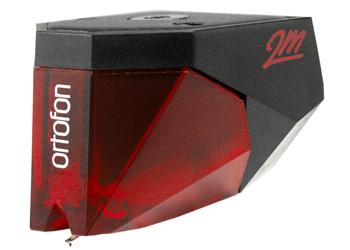

Ortofon 2M Red Moving Magnet MM Cartridge
Zoom  Zoom

Ortofon 2M Red Moving Magnet MM Cartridge

  (2 Reviews)
£79.17 Exc. VAT |


Ortofon 2M Red Moving Magnet Cartridge

The 2M Red and 2M Blue are designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.

To obtain a flat frequency response, as with a Moving Coil cartridge, Ortofon are using split pole pins in the 2M design, to reduce the eddy current. The split pole pins are an Ortofon invention which was originally presented in the 500 and Super OM series, to great effect.

The 2M Red and 2M Blue both use the same engine with split pole pins. With this improved engine Ortofon have been able to increase the output to an impressive 5.5 mV.


Output Voltage (at 1kHz, 5cm/sec):
Channel Balance at 1kHz:
Channel Separation at 1kHz:
Channel Separation at 15kHz:
Frequency Range (at -3dB):
20 Hz - 22 kHz
Frequency Response 20Hz - 20kHz:
+3 / -1dB
Tracking Ability at 315Hz:
Typically 70μm
Compliance, Dynamic, Lateral:
20μm / mN
Stylus Type:
Stylus Tip Radius r / R:
8 / 18μm
Tracking Force Range:
1.6 - 2.0g (16 - 20mN)
Recommended Tracking Force:
1.8g (18mN)
Tracking Angle:
Internal Impedance / DC Resistance:
Internal Inductance:
Recommended Load Resistance:
Recommended Load Capacitance:
150 - 300pF
Cartridge Colour Body / Stylus:
Black / Red
Cartridge Weight:
Replacement Stylus Unit:
Stylus 2M Red
Average Rating (2 Reviews):
Write a Review and share your opinions!

Ortofon 2m Red
05 August 2016  |

Great sound from this cartridge it also gives me the option to upgrade in the future.

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.

Ortofon 2m RED
16 May 2016  |

Fitted as upgrade for Rega RP1 turntable. Installation and set up very easy. Great sounding cartridge.

Was this helpful to you?  Yes  /  No

3 of 3 people found this review helpful.
