EMT TMD 015 Cartridge

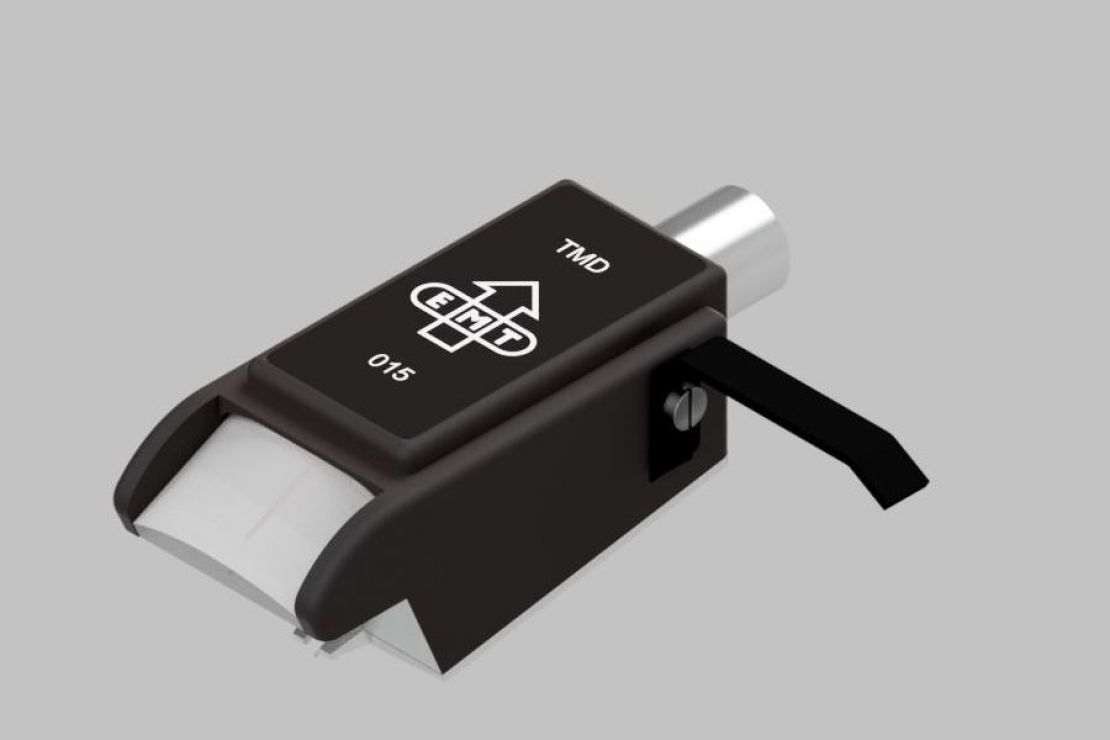

The new TONDOSE features the well-established EMT generator, integrated into a monobloc structure, milled from a solid block of magnesium. Thus both rigidity and resonance behaviour have been significantly improved.

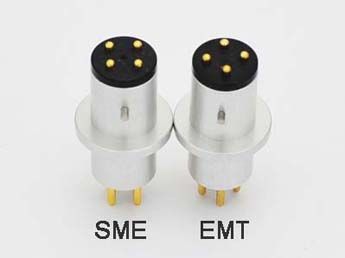

Besides the standard EMT tonearm-connection, we offer the option INT (Ortofon A compatible) and option X (for SME standard). Furthermore, we manufacture 1/2 and 1/4 coil for lower impedance versions on request.

The TMD 015 features a spherical diamond. It is made for tracking of modern mono records.

Diamond: SPH 15µm
Cantilever: Aluminium
Transducer: MC true mono
Connection: EMT
Vertical Tracking Angle: 23°
Tracking force: 2,5g
Output Transfer Level: 0,21mVs/cm
Compliance: 12µm/mN
Frequency response: 20 - 20‘000HzA

Output voltage: Standard 1.05mV, 1/2 Coil 0.5mV, 1/4 Coil 0.3mV
Impedance: 2x 24Ω
Recommended load: 200 - 300Ω
