Van Den Hul DIY 4mm Banana Plugs (Set of 4)
Zoom  Zoom

Van Den Hul DIY 4mm Banana Plugs (Set of 4)

  (1 Review)
£25.00 Exc. VAT |


Van Den Hul D.I.Y 4mm Banana Plugs (Set of 4)

Our DIY Screw-On Speaker Connector is a high quality solderless, screw-on style, loudspeaker cable termination system suited for multi-strand loudspeaker cable and wire types down to AWG 12 (i.e. up to 3 mm total metal diameter)*.

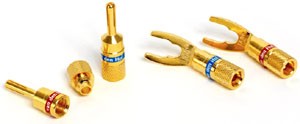

The DIY Screw-On Speaker Connectors are available in both angled spade (fork) and banana tip version and are fit with red and blue “van den Hul” marked colour coding rings for easy polarity identification.
The screw-on base’s high pressure clamp function creates a low loss electrical connection to all cable strands and ensures maximum signal transfer. All parts furthermore are heavy 24 carat gold plated so corrosion is almost impossible and the contact quality is maintained over a long period of use.

In short, our versatile and easily mountable DIY Screw-On Speaker Connector provides reliable and durable high quality terminations to your amplifier and loudspeaker binding posts.

Features and specifications

  • Solderless, screw-on style enables easy and fast mounting
  • Heavy 24 carat gold plated
  • Reliable and durable high pressure electrical clamp connection
  • Easily re-useable/remountable when changing loudspeaker cables
  • Available in angled spade (fork) and banana tip version
  • Fit with red/blue colour coded polarity identification rings
  • Accepts up to 3 mm total metal diameter (i.e. down to AWG 12) stranded conductors and up to 6.5 mm cable insulation diameter
  • Banana version: Standard 4.0 mm pin diameter
  • The spade and banana terminals are WBT binding post fitting
  • Please note: Only suitable for multi-strand cables


To mount these connectors, each 14 mm bare stripped multi-strand speaker cable wire end is simply inserted through the screw-on base and the strands are circumferentially folded around a pressure ring. The screw-on base is then firmly tightened, ensuring a reliable electrical connection.
