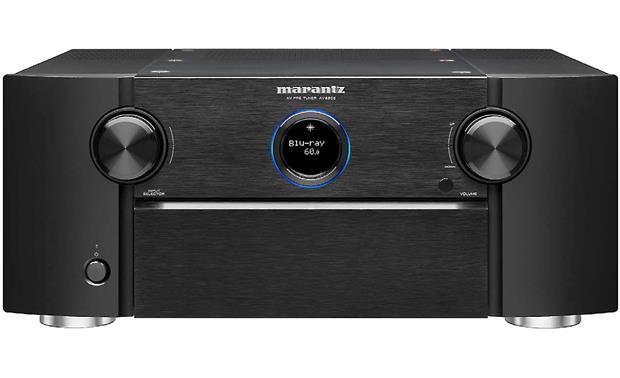

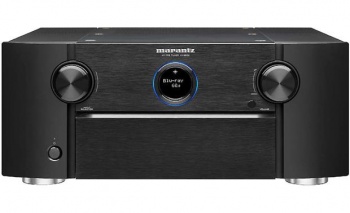

Marantz AV8805 13.2 Channel 4K Ultra HD AV Surround Pre-Amplifier
Zoom  Zoom
 Marantz AV8805 13.2 Channel 4K Ultra HD AV Surround Pre-AmplifierMarantz AV8805 13.2 Channel 4K Ultra HD AV Surround Pre-Amplifier

Marantz AV8805 13.2 Channel 4K Ultra HD AV Surround Pre-Amplifier

£3,332.50 Exc. VAT |  |

Marantz AV8805 13.2 Channel 4K Ultra HD AV Surround Pre-Amplifier

The versatile Marantz AV8805 pre-amplifier redefines audiophile home cinema and music listening with an unprecedented 13.2 channel processing capability, and supports virtually any high-resolution multichannel audio format. Immerse yourself in three-dimensional audio with the latest surround formats like Dolby Atmos, DTS:X or Auro-3D. Enjoy enhanced audio quality supported by our proprietary current feedback and HDAM technology that passes signals through 15.2 channel XLR or 15.2 RCA outputs. Stream music throughout your home with HEOS multi-room listening and full wireless connectivity through the HEOS app or Amazon Alexa Voice Control, supported by Wi-Fi, Bluetooth and Apple Airplay. With the Marantz AV8805, you get incredible fidelity and unparalleled audio precision.

Key Features

  • 13.2 channel processing with 15.2 channel XLR and RCA outputs and flexible pre-amplifier stages — ideal for the advanced home cinema enthusiast
  • Enjoy immersive, three-dimensional sound with the latest surround formats including Dolby Atmos (up to 7.1.6 or 9.1.4), DTS:X and Auro-3D (up to 13.1)
  • High-performance 192kHz/32bit D/A converters for all channels provide the highest resolution for music and movies
  • Audyssey MultEQ XT32, LFC, Sub EQ HT, Dynamic Volume and DynamicEQ deliver equalization to best suit your listening environment
  • Built-in Bluetooth and Wi-Fi with 2.4GHz/5GHz dual band support offer improved network stability even in Wi-Fi-crowded homes
  • Listen from any room of your home with HEOS wireless music streaming technology and the HEOS app
  • Ultimate visual quality with 4K/60 Hz full-rate pass-through, 4:4:4 color resolution, HDR, BT.2020, Dolby Vision and HLG (Hybrid Log Gamma) pass-through
  • eARC (Enhanced Audio Return Channel) functionality via firmware update supports the most advanced surround and object-based audio formats, including Dolby Atmos and DTS:X via single HDMI connection between AVRs and compatible TVs
  • Eight HDMI inputs, including one on the front, with full HDCP 2.2 support, plus three HDMI outputs (zones), plenty of inputs for your digital devices and the ability to support different video in different rooms
  • Analog to HDMI conversion and SD to HD/4K Upscaling for legacy video sources, plus full HD and even Ultra HD video quality from existing DVDs or analog sources
  • Stream music from AirPlay, Bluetooth, TuneIn Internet radio, Pandora, Spotify, SiriusXM, Amazon Prime Music, TIDAL and more via the HEOS app
  • Network music streaming supported via DSD (2.8/5.6MHz), FLAC, ALAC and WAVsupport for high-resolution, Hi-Fi listening
  • Installation and operation are seamless with the Setup Assistant and Marantz AVR Remote app

Multichannel Surround

DTS:X, DTS HD Master

DTS Neural:X

DTS Virtual:X

Dolby Atmos

Dolby Surround


Multichannel Stereo



Max Number of Processing (Pre-Amp) Channels





Sound Enhancements


Copper plated chassis

Power Transformer: Toroidal

Current Feedback Topology

Hyper Dynamic Amplifier Modules (HDAM)

Pure Direct

High Grade Audio Components

Gold plated RCA terminals

Clock Jitter Reducer

Audyssey MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume Audyssey LFC, Audyssey APP support Compressed audio Enhancer: MDAX2





HEOS Multiroom & Streaming

Lossy formats MP3 / WMA / AAC

Lossless formats FLAC / ALAC / WAV

Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24

DSD Audio Streaming up to DSD5.6

FLAC HD 192/24

WAV 192/24

ALAC 192/24

Gapless playback (FLAC, WAV, ALAC, DSD)

AirPlay audio streaming

Internet Radio: TuneIn

Spotify Connect / Tidal / Deezer

Compatible with Remote APP for Smart Phones: Android / iOS

Compatible with Remote APP for Tablets: Amazon Kindle

Ethernet Ports







HDMI inputs back / front: 7 / 1

HDCP2.2 support

HDMI outputs main / zone: 2 / 1

Video conversion Analog -> HDMI

Analogue to HDMI scaling: up to 4K 60/50

HDMI to HDMI scaling: up to 4K 60/50

GUI Overlay on HDMI

HDMI: 3D / 4K / CEC / ARC

Enhanced ARC (update)

Dolby Vision / HLG

4k signal pass-through / scaling / GUI overlay

HDMI pass-through in standby mode

Picture adjust / Noise reduction


DSD Audio capability

Audio Return Channel

Auto LipSync





HEOS Multiroom integrated

Multiroom zones: 3

Zone audio source: HDMI (2ch)/opt, coax (2ch)/Network, USB/analog

Zone audio output: preout

Zone HDMI output from HDMI source

IP control/RS232 control/App control

Remote In / Out

IR Flasher In

Marantz remote bus

DC Trigger output: 2





Auto speaker setup by microphone: Audyssey MultEQ XT32

FL Display: 2 lines + port hole

Graphic User Interface – GUI: Advanced

ISF certification

GUI languages: 9

Setup Assistent

Smart Select

Firmware Update by Network / USB

Variable cross over

Optimized Bass Redirection

Bass Sync

Auto Power off

Sleep Timer





Composite In / Out: 4+1 / 2

Component In / Out: 3 / 1

HDMI In / Out: 7+1 / 3

Multi-Room Video Out: Video / HDMI

Analogue In: 6+1 (1x XLR)

Phono (MM) In

Digital Inputs: Coaxial / Optical: 2 / 2

Multi-Room Out: analog: 2

Multichannel Pre Out: (15.2 RCA & 15.2 XLR)

Subwoofer Out 2 (independant)

7.1 multichannel input

Speaker A / B: assignable pre out

Bi-amp drive: assignable pre out

Multi-Room Speaker Terminal: pre out

Front Inputs: Audio / Composite / HDMI / USB

USB Audio / Made for iPod (AirPlay)/ Works with iPhone (AirPlay)





Metal Front Panel

System Remote Control                RC039SR

Pre-programmed / Learnable / LCD Display

Power Consumption in W: 90

Standby Consumption in W: 0.2

CEC Standby Consumption in W: 0.5

Network Control On Consumption in W: 3.7



Dimensions (WxDxH)

In mm


 Horizontal: 440 x 410 x 185

Antenna – Vertical: 440 x 410 x 248

Without Antenna: 440 x 389 x 185
